Foton Oil Transportation Tank Truck 4X2 Crude Oil Fuel Tanker Truck 3cbm Fueling Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Foton Oil Transportation Tank Truck 4X2 Crude Oil Fuel Tanker Truck 3cbm Fueling Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 15000.0-18000.0/ Piece

Price:$15000.0 - $18000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From May 02, 2015 To Aug 02, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 2

Tank Volume:?5000L

Drive Wheel:4�2

Seats:?5

Horsepower:?150hp

Engine Capacity:?4L

Storage:Oil

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Bias

Condition:New

Description:Foton Oil Transportation Tank Truck 4X2 Crude Oil

Engine:80HP/95HP/102HP/120HP/140HP

Tire:6.50r16, 4 Pieces+1 Spare Tire

Volume of Tank:3000L, 4000L, 5000L,

Air Conditioner:A/C or Without A/C

Driving Type:LHD or Rhd

No. of Compartment:No. of 1/2/3/4/5/6 Compartment

Driving Axle:4X2/6X4/8X4

Other Key Parts:Discharged Pump/ Discharged Valve/API Manhole

Pto:with 50# or 60# Pto

Export Markets:Global

Additional Info.

Trademark:CLW BRAND

Packing:Waxed or Naked Before on Board

Standard:ISO, CCC, CE, ASME, ASTM, EEC

Origin:Hubei Suizhou

HS Code:8704230090

Production Capacity:500unit/Month

Product Description

Product Description
BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

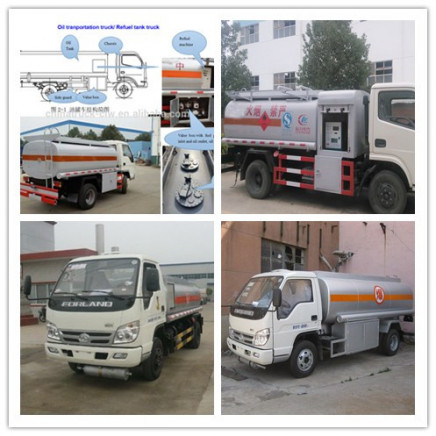

Foton Oil Transportation Tank Truck 4X2 Crude Oil Fuel Tanker Truck 3cbm Fueling truck

Fuel tanker series
1 Applied carbon steel sheet Q235-A; Stainless steel; Aluminium alloy that in accordance with the international standard. Thickness is 5-10mm.
2 Apply the famous pump.
3 The main parts implements automatic welding, while the accessories apply carbon dioxide welding to ensure the tank in good performance.
4 Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5 Fire extinguisher replaced on the back of the truck for the emergency.
6 Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.
7 According to customer's needs:
A> The pump can be designed to pump in and out throw meter, or not through meter, self-flow through or not through meter.
B> The tank can be designed as a single compartment or several compartments.
C> You can choose to install heating pipes, insulation layer. The Insulation material is generally 50-100 mm thickness, insulation can be used rockwool, glasswool, polyurethane foam, aluminum silicate. The cladding can be used 1.8-2mm thick white (RAL9003) glass reinforced plastic, 1.2mm cold carbon steel, 1.00mm stainless steel sub-mirror or matter board.
D> At the end or side of tank, It can be installed 1-3 self-flow valve.
E> You can chosse the type of the inlet and outlet (Europ standard or normally standard).

BEST COMPETITIVE PRICE WITH TRUSTED QUALITY

Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.
2.Delivery time:
25 working days after payment is received.

Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Fuel tanker:
1. Applied carbon steel sheet Q235-A; Or Stainless steel; Or Aluminium alloy.
2. Apply the famous pump.
3. The main parts implements automatic welding.
4. Sub crossbeam apply rectangle steel sheet that thickness more than 5mm, stick out in one time.
5. Fire extinguisher replaced on the back of the truck for the emergency.
6. Painting held more tolerance and coherence, can make sure the tank in good situation more than 5 years.

Below specification is just for your reference. More information of our Fuel Tank Truck, please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.

Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442

Technique Parameters

Description	FOTON MINI REFUELING TANK TRUCK
Drive Model	4X2
Chassis	BJ5042
Vehicle Main Dimensions	Dimensions(L x W x H)mm	599520202350
	Wheel base (mm)	3220
	Overhang (front/rear) (mm)	1100/1695
	Wheel track (front/rear) (mm)	1450/1440
	Approach/Departure angle(�)	25/22
Weight in KGS	GVW.	4495
	Curb Weight	2805
Max. driving speed(km/h)		80
Engine	Model	CY4102
	Type	4-stroke direct injection , 4cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	99HP
	Emission standard	Euro IV
Gearbox	5 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	100
Tire	6.50R16, 4 pieces+1 spare tire
Brakes	dual circuit compressed air brake
TANK
Material	5mm carbon steel Q235 Aluminum Alloy/Stainless steel can be chosen
Tank Dimensions	Length:4000mm(the front 1500mm for refueling machine position), long axis:1100mm,minor axis:750mm
Tank Volume	3CBM
Standard Equipment	gravity valve,tool box,fuel pipes ,climb ladder,man hole
Optional Equipment	1.Computer refueling machine, installed for your choice, with a 15 meter automatic return oil pipe and refueling gun, achieving mobile refueling fuction. 2.additional tool box 3.fuel pump and flow meter

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Exporting
Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana

We are confident and committed to providing our customers with the best qualityand service all the time

If you are interested in our trucks, pls contact me, I will send our best quotation to you!

Contact information

Sale Manager: Kitty Zhen
Tel/Fax : 00862783796298
Cell:0086-13872880590/13349909442
Website:truckcl.en.alibaba.com

we sincerely welcome you to visit our factory and provide your precious suggestion for us!
