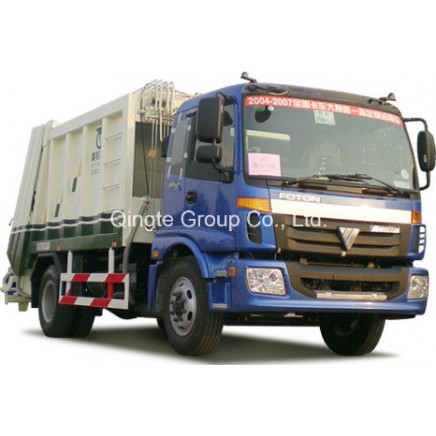

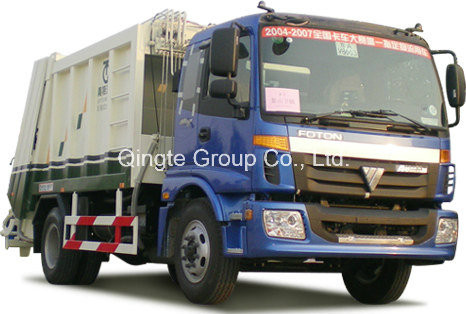

Foton Auman 4X4, Compression Type, Garbage Truck (QDT5165ZYSE)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Foton Auman 4X4, Compression Type, Garbage Truck (QDT5165ZYSE)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, CPT, FCA, EXW

Payment Terms:L/C, T/T, D/P

Trademark:Qingte

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT5165ZYSE-FT

Type:Compactor

Certification:ISO9000, TS16949

Volume:?15000L

Emission Standard:Euro 4

Transmission Type:Automatic

Engine Type:2 Stroke

Payload:7t

Fuel:Diesel

Drive Wheel:4×2

Brand:Dongfeng

Models:Large

Usage:Sealed

Chassis:EQ1102FLJ5

Condition:New

Model:Qdt5165zyse

Chassis Model:Dfl1160bxb

Engine Model/Displacement:Isde210 40 /6700(Optional)

Rated Power:155 /2500

Rated Loading Capacity:6355,6055

Gross Weight:16000

Tyre:10.00-20,10.00r20

Over Dimension(Lwh):7560X2500X3100; 7860X2500X3100

Track(Front Axle/Rear Axle):1880/1860

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:20000/Year

Product Description

Qingte Group is one of the biggest manufacturer for special vehicle and started to manufacture special vehicles from 1992,and have more than 20years experience for trailers,garbage truck,road sweeper,mixer truck,dump truck,tank truck, and so on.

The anual production capability is 20000pcs for different special vehicles.

At present,QIngte has three production base in China, the headquarter locate in Qingdao,north China.

Model	QDT5165ZYSE
Chassis Model	DFL1160BXB
Engine Model/Displacement	ISDe210 40 /6700(optional)
Rated Power( )/( )	155 /2500
Rated Loading Capacity( )	6355,6055
Gross Weight( )	16000
Max. Speed( )	90
Tyre	10.00-20,10.00R20(optional)
Over dimension(LWH)( )	7560×2500×3100; 7860×2500×3100
Wheel Track( )	3800
Track(front axle/rear axle)( )	1880/1860
Approach angle/departure angle()	20/13
Effective Volume( )	12
Precompressor Volume( )	1.9
Rated Pressure for Hydraulic system( )	19
Filler Opening Lower Edge Ground Clearance(mm)	1128
Filling Period ( )	25
Garbage Unloading Time(s)	35
( )	15
Waste Water Tank( )	?300L
Mechanical Hand Tipping Capacity (Kg)	?600
