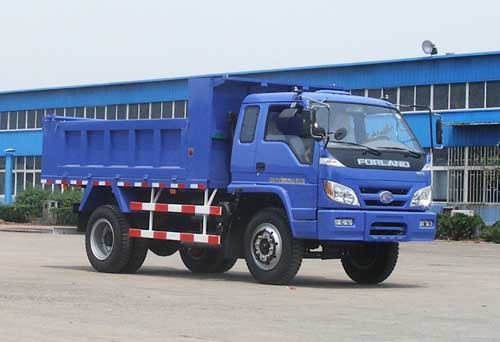

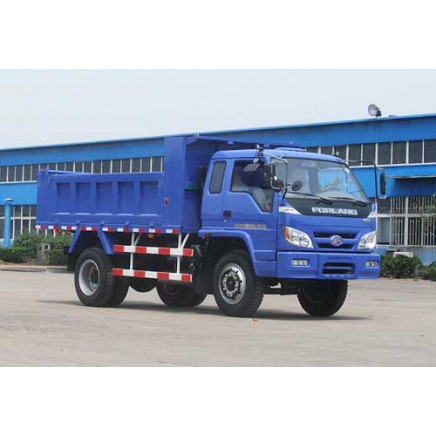

Foton 6t Rhd/LHD Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 10000.0-50000.0/ Piece

Price:$10000.0 - $50000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Oct 24, 2014 To Jan 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:ZZ

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 2

Drive Wheel:4×2

Engine Capacity:4-6L

Seats:?5

Horsepower:351-450hp

Tire Type:as Customer?s Requirement

Tire Certification:ISO

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Export Markets:Global

Additional Info.

Trademark:HOWO

Packing:Naked Package

Standard:ISO9001

Origin:China

HS Code:87010000

Production Capacity:200units/Month

Product Description

Dump truck, 6 ton load
Dumper, yuchai diesel engine
Tipper truck, foton truck
Body size: 4500*2300*800 mm
Payload: 6000 kg
Engine: Yuchai diesel engine, 135 hp

The engine with strong power is of safety, reliability, good acceleration on start-up, outstanding power performance.
Hydraulic power steering makes the steering convenient, safe and reliable. Adjustable steering wheel can effectively relieve the burden of driver.
Mallery single-top amplification mechanism has great lifting force. The lifting is smooth with stable and reliable performance.
The cab has front tilting design. Easy engine maintenance and repair.

BJ3073DCPFA-S4/3072AEL34100L35-1 ( RHD )


Product positioning: short-distance transportation or transferring of agricultural and sideline products and construction materials.


Working condition: rural roads, pavement of sand/cement roads and mountain roads.


Engine
Engine model and emission		phaser135Ti (Euro II)
Engine type		Vertical/in-line/water-cooling/ four-stroke/ supercharged intercooler
Rated power of engine (kw/rpm)		101/2600
Maximum torque (N.m/rpm)		445/1400-1600
Engine displacement (L)		3.99
Gearbox
Gearbox type		WLT6T120
Gearbox speed ratio		i1:6.32,i2:3.927,i3:2.283,i4:1.396,i5:1.00,i6:0.789
Rear axle
Rear axle type		Dead axle full float axle
Rear axle load (T)		7.6T
Rear axle speed ratio		6.33
Dumping type/oil cylinder size		Single-top amplification mechanism/ HG-E160×700
Cabin type/width		Right side driving, flat head,single-row/1900
Drive form		4×2
Tire type/number		8.25-20/6+1
Brake	Service brake type	Drum type, air braking
	Parking brake type	Energy storage spring rear wheel braking
Steering device		Power steering
Weight parameter
Curb weight (Kg)		4200
Rated load capacity (Kg)		6000
Performance parameter
Maximum speed (km/h)		90
Maximum gradeability (%)		? 25%
Fuel consumption per hundred kilometers (L/100km)		12.45
Minimum turning radius (m)		7.599
Minimum ground clearance (mm)		? 200
Maximum lift degree (°)		51.9°
Dimension parameters
Overall dimensions (LxWxH)mm		6130×2200×2600
Internal cargo body dimensions (LxWxH)mm		4200×2100×800
Cargo body capacity (m³)		7
Wheelbase (mm)		3450
Front/rear wheel track (mm)		1669/1680
Front/rear suspension (mm)		1130/1550
Rated voltage (V)		24
Capacity of the fuel tank (L)		120
Standard configuration		Heater,Spare tire, electronically controlled flameout, adjustable steering wheel
Selective configuration		air-conditioner
The engine with strong power is of safety, reliability, good acceleration on start-up, outstanding power performance.

Hydraulic power steering makes the steering convenient, safe and reliable. Adjustable steering wheel can effectively relieve the burden of driver.

Mallery single-top amplification mechanism has great lifting force. The lifting is smooth with stable and reliable performance.

The cab has front tilting design. Easy engine maintenance and repair.
