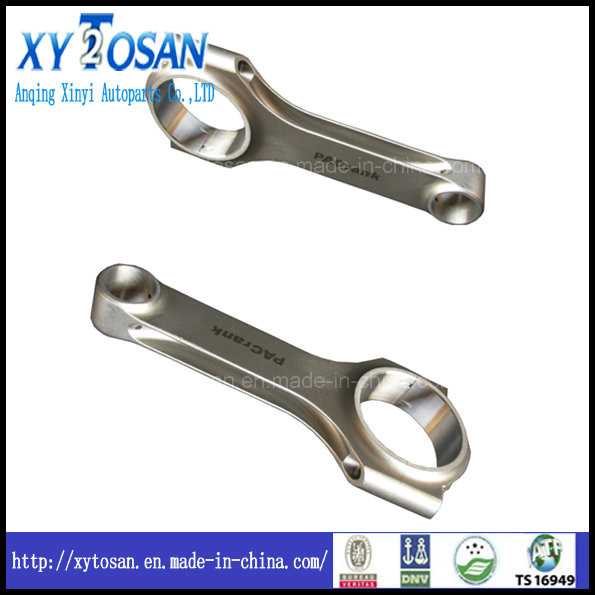

Forged Steel 4340 Racing Connecting Rod for Porsche V8

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$26.0 - $27.0 / Piece

Min. Order (Pieces)	Unit Price
20.0	US $ 26/ Piece
100.0	US $ 27/ Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union

Price Valid Time:From Jun 02, 2015 To Nov 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:RSR,M64,928S,928S4,928GT,928S-1,CC150A,CC150B,3

Type:Racing Connecting Rod

Material:Forged Steel 4340

Muffler Type:Center Muffler

Deck:Double

Car Make:Porsche V8

Surface Treatment:Shot Peening

Handle:H Beam & I Beam & X Beam

Size:Can Random Alter

Service:Color Laser Typing Logo & Free Sample

Delivery:30days

Guarantee:3 Years

Payment:30% Deposit, 70% Before Delivery

Other Model:Por-1455, 912/356, 3.2/3.3, 2.4/2.7, Por-145A

Other Engine:FIAT, Ford, Peugeot, Nissan, Mitsubishi, Suzuki

Export Markets:North America, South America, Eastern Europe, Southeast Asia, Oceania, Mid East, Eastern Asia, Western Europe

Additional Info.

Trademark:XYTOSAN, KOSFA, GPM, GEO PARTS

Packing:Xytosan Packing, Neutral Packing, as Your Required

Standard:OEM/STD

Origin:Anhui(Mainland of China)

HS Code:8409919930

Production Capacity:200, 000PCS/Month

Product Description

Forged Steel 4340 Racing Connecting Rod for Porsche V8

Product Detail

1). Material:Forged Steel 4340;

2). Surface Treatment:Shot Peening;

3). Handle:H Beam & I Beam & X Beam;

4). Hardness: 600-1000HRC;

5). Size:Can Random Alter;

6). Technological Process of Production:

Roughcast testing whiling drawn into	?	Mill rod, Cover plane	?	Capitulum hole drilling and converse angle	?
Rough mill pole double-plane	?	Rough tang capitulum hole	?	Rough mill pole cover stage	?
Rough mill haftarah plane(intrados)	?	Semi finished product test	?	Benchmark of mill and serial number	?
Polished mill pole cover stage	?	Rough tang big hole	?	Mill tile slot	?
Screwed hole drilling	?	Fitting and proficiency	?	Semi polished pole cover double plane	?
Semi-polished capitulum and converse angle	?	Oil hole drilling	?	Copper oppression cover	?
Polished mill pole cover double plane	?	Degaussing	?	Polished tang capitulum hole	?
Finished product checking	?	Precise milling	?	Weighing,grouping and tabing	?
Generaltests	?	Cleanout,Oil antirust oil	?	Packaging and leaving factory

7). Certification: ISO9001, TS16949, etc.;

8). Brand: XYTOSAN,KOSFA,GPM, GEO PARTS,etc.;

9). Production Capacity: 200,000 pcs/month;

10). Delivery Day: 30 days after received the deposit;

11). Quality guarantee: 3 years;

12). Our main export market:North America, South America,Europe,Asia,ect.

Service

1). New products can be developed upon customers' sample or drawing;

2). Samples can be sent for customers to check the quality before ordering(if we
      have them in stock);

3). Making color laser logo upon customers' needs;

4). Our factory can provide OEM service;

5). We can offer various of connecting rod,such as:BENZ,BUICK,CATEPILLAR,
      CUMMINS,DAEWOO,FORD,HINO,HONDA,ISUZU,KIA,KOMATSU,LADA,
      MITSUBISHI,NISSAN,PERKINS,PEUGEOT,SUZUKI,TOYOTA,VOLVO,etc.

6). Other engine parts: engine valve, valve guide, cylinder head,complete cylinder
      head,crankshaft,camshaft,valve tappet,rock arm,rock arm assembly and so on...

No.	Type	Engine	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
No.169	Porsche	RSR	6	127	58	23	21.74	19.51	3/8"
No.232		M64	6	127	58	23	21.8	22.5	3/8"
No.171a		928S	6	150	54.991	24	26.9	29.162	3/8"
No.171b		928S4	6	150	54.991	24	26.924	26.416	3/8"
No.171f		928S4	8	160	54.991	24	26.924	26.416	3/8"
No.171g		928GT	6	150	54.991	24	26.98	26.32	3/8"
No.171e		928S-1	6	150	54.991	23.546	26.95	27	3/8"
No.171c		CC150A	8	150	55	24	21.75	21.75	3/8"
No.171d		CC150B	4	150	55	24	28.75	28.75	3/8"
No.336b		v8	6	150	55	24	26.9	26.5	3/8"
No.336c		v8	6	160	55	24	26.9	26.5	3/8"
No.334		POR-1455	6	145.5	55	24	21.79	26.92	3/8"
No.172		912/356	4	127	56.993	22	19.53	25.4	5/16"
No.173		3.2/3.3	6	127	58	22	21.74	25.4	3/8"
No.173b		3.2/3.3	6	127	58	23	21.8	21.8	3/8"
No.174		3	6	127.75	56	22	21.74	25.4	3/8"
No.175a		2.4/2.7	6	127.75	56	22	23.72	25.4	3/8"
No.175b		2.4/2.7	6	127.8	56	22	23.75	23.75	3/8"
No.333		POR-145A	4	145	56	22	20.19	25.4	3/8"
No.176		2.0/2.2	6	130	61	22	21.69	25.4	3/8"
No.323		POR-127E	6	127	53.9	23	21.79	25.4	3/8"
No.326		POR-127.8B	6	127.8	53.9	22	23.65	25.4	3/8"
No.328		POR-130A	6	130	53.9	22	21.79	25.4	3/8"
No.428		cc165mm	4	165	51.34	20.663	25.3	25.4	3/8"
No.479		CR-145-51.3-22-22-22	5	145	51.3	22	22	22	3/8"
No.331		POR-1334A	6	133.4	53.9	22	21.79	25.4	3/8"

Package

1). XYTOSAN packing

2). Neutral packing

3). According to customer's requirement
