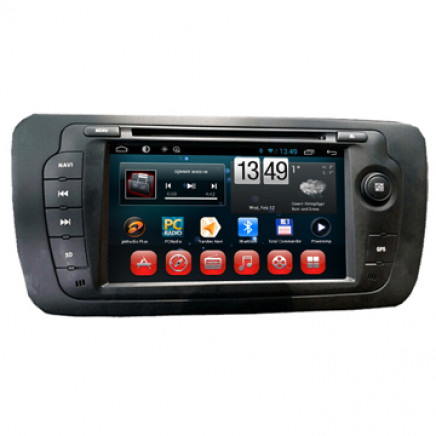

for Volkswagen Double DIN Car DVD GPS Navigation Seat

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 1.0-2.0/ Piece

Price:$1.0 - $2.0 / Piece

Trade Terms: FOB, EXW, CIF

Payment Terms: L/C, T/T, Western Union, Paypal

Price Valid Time:From Feb 02, 2015 To Mar 29, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:AST-7101

Type:Car Radio

Combination:CD Player

Placement:Dashboard

Certification:CE, RoHS, SASO, FCC

Voltage:12/24V

Audio Output:L/R Channel

Format:MP3

Size:7 Inches

Function:Car Radio Receiver

System:Android O.S.4.2.2

Built in:Radio

Export Markets:Global

Additional Info.

Trademark:ASTRAL or OEM

Packing:Gift Box

Standard:CE RoHS

Origin:China

HS Code:85287180

Production Capacity:5000/Month

Product Description

1. 7" bigger digital screen you never seen in the market
2. 1080P video display
3. Wifi function support
4. TPMC function available (Optional)
5. Parking assistance included (Support original parking system)
6. Air conditioner/Climate display support
7. Car door open indication function

For Volkswagen Seat 2013

7 digital 800*480 screen resolution
DVD info displays on the small dashboard LCD (MFD)
Built-in GPS system
Built-in Bluetooth
USB port
SD card slots (Two SD card slots, one for GPS, one for Multimedia)
iPod control
RDS receiver function
Built-in TV tuner
Built-in DVB-T tuner (Optional)
Built-in ISDB-T tuner (Optional)
TPMC function available (Optional)
Steering wheel control function (With CANBUS (MQB))
Auto rear viewing function

CPU	CorteX A9 Dual Core 1GHz Mstar786
RAM	DDR3 1Gb
ROM	8G EMMC
SD	support 32G SD card
VIDEO	RMVB,MKV,MOV,WMV,AVI,MPG,TS with 1080P H.264 format etc.
AUDIO	MP3,WMA,WAV,OGG,FLAC
GPS MODULE	Support GPS and Glonass
OS	Android 4.2.2
Temperature	-20°C TO +70°C
Navigation software	IGO, navitel, Sygic etc
DVD decoder	SUNPLUS 8202TQ
Screen	800480 / 1024600 capacitive touch screen.
FM IC	NXP 6624 with RDS
WIFI	Build-in or External
3G GPRS	External (optional)3G dongle
TV	Build-in Analog or Digital TV( DVB-T, ISDB-T,DVB-T2)
Bluetooth	A2DP and Bluetooth OBD
Steering Wheel control	Support ( Some cars need CAN BUS )
Rear view video	Support Automative turn on when reversing
Power on	16S~20S, high speed turn on system
Power off	Rearly shut off the OS, <10mA
work volt	DC12V
Operate volt range	10.8V ~16V
Max current	10A
Features	GPS, DVD, FM/AM, iPod, Bluetooth, RDS, Steering wheel control, SD/USB multimedia palyback, Rear Camera Input, Aux In,
Anti shock	Mechanical anti-shock & Electronic anti-shock
Display mode	16:9
Touch Screen	Capacitive touch screen
Screen Resolution	800*480
OSD Language	English,Russian, Hebrew, Arabic,German,Spanish, French,Thai,Italian,etc.
Radio Tuner	FM/AM
Station Preset Qty.	18
Support RDS	Yes
Radio response bandwidth	AM: 522~1620 KHz, FM: 87.5~108 MHz
Video Output System	NTSC,PAL
Signal-to-Noise Ratio	85dB
Media Type	CD,HDCD,MP3,WMA,VCD,DVD,DVD-R/RW, DVD+R/RW,CD-R/RW,JPEG,etc.
Amplifier output power / channel qty	45W*4
EQ mode	Rock, Hip Hop, Dance, Latin, Rave, Urban, Acoustic;
Audio Line out channel	5.1
Bluetooth Version	V2.0,support A2DP(Bluetooth Stereo Music), can play stereo music through Bluetooth
Microphone	Built-in, External is optional
Reversing Input mode	Screen automatic display rear camera video when reversing whether power off or on.
Rear Camera	Is optional for choose
SD/USB/iPod Playback mode	Automatic paly multimedia when the device connected unit
Video Input	2 Channel, One for camera, one for aux in
Video Output	2 Channel
Audio Input	1 Channel for aux in
Audio Output	4.1 Channel
