for Military Use Truck Transport Semi Trailer Flatbed Semi Trailer (QDT9493TDP)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, FCA, EXW

Payment Terms:L/C, T/T

Trademark:Qingte

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9493TDP

Type:Semi-Trailer

Towing Pin Material:Alloy Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Towing Pin Type:"I" Type

Towing Pin Diameter:90mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Cross Arm Type

Material:Steel

Scale:Heavy Duty

Certification:ISO/Ts16949

Components:Trailer Axles

Load Capacity:30t

Outline Size:13000X3100X2762

Tare Weight:40000kg

Axle Distance:8526+1232+1232

Capacity of Each Axle:13t

Leaves of Spring:10/10/10

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS, CE

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:20000/Year

Product Description

Configuration of high quality
We use accessories of high quality to ensure a good performance. BPW, SAF, YUEK, JOST, WEBCO are optional. Sixteen wheels, short axles, three-line six-axles, double or triple common trailer axles are all available of reliable quality.

High standard steel material
A sturdy, durable and enforced frame of high strength steel is applied contributing to our practice-oriented, high-grade product. All of these have ensured an extremely high load-bearing performance and supply users with flexible choices from 30 tons to 120 tons.

Multi functions
External dimensions could be made according to customer's requirement, to offer you solutions for goods transporting, such as tank carrier, power generator carrier, steel slag carrier, coil transporter, high speed carrier etc.. Detachable low bed semitrailer, extendable low bed semitrailer and dolly low bed semi trailer are also available. Our competent engineering team will design according to your individual request and supply you with satisfying products.

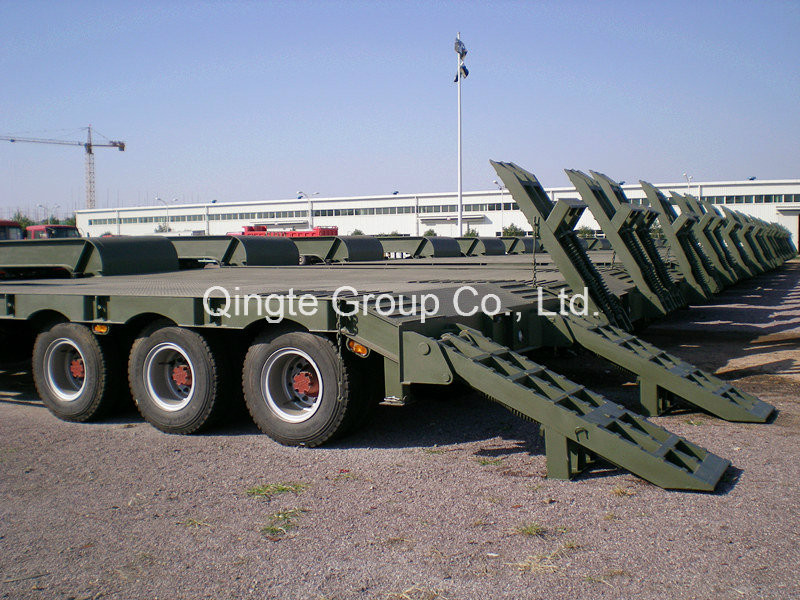

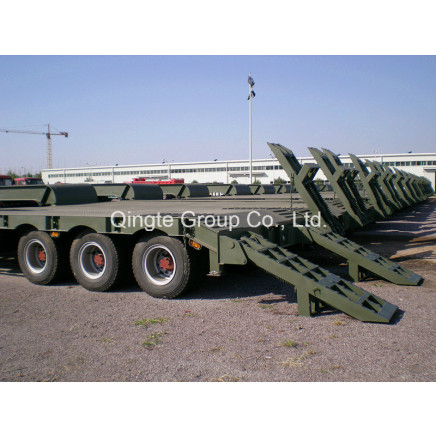

Low bed semi-trailer
Model: QDT9493TDP Three-axle Low bed
1, Suited Tractor: 6X4
2, Outline Size: 13000X3100X2762
3, Tare Weight: 40000kg
4, Axle Distance: 8526+1232+1232
5, Capacity of Each Axle: 13t
6, Leaves of Spring: 10/10/10
7, Tire: 8.25R15;
8. Rim: 6.5-15
9, Dia of Kingpin: 50#;
10. The Height of I Beam: 500mm, hydraulique ramps length: 4m

Model	QDT9402TDP
Tare Weight (kg)	9600,9000
Loading Capacity (kg)	30400,31000
Gross Weight (kg)	40000
Dimension (mm)	12960,12640x3000x2770,1720
Effective Platform Size(mm)	8780
Wheel Base (mm)	8100+1310+1310
Overhang(Front/Rear) (mm)	-/1590,-/1270
Wheel Specification	8.25R20,8.25-20
Wheel Track (mm)	2280/2280/2280
Approach Angle/Departure Angle (°)	-/19,-/23
Plate Spring Quantity	-/7/7/7,-/10/10/10
