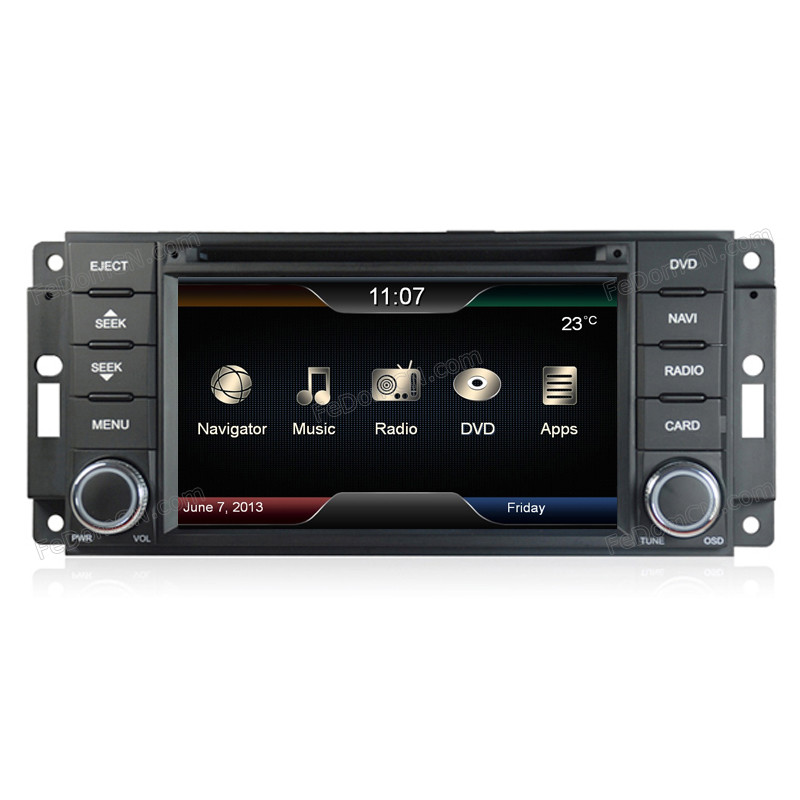

for Jeep Wrangler Compass Touch Screen DVD Accessories Parts with GPS Navigation System

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW, CIF

Payment Terms:L/C, T/T, Western Union, Paypal

Trademark:cartouch

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:C6230DJ

Screen Size:6 Inch

Resolution:800*480

Combination:GPS, Bluetooth, MP3/MP4 Player, TV, iPod, OBD

Placement:Dashboard

Certification:CE, RoHS, FCC, ISO

Voltage:12/24V

Support Format:MP4

Audio Output:Virtual 5.1 Channel

Video Output:Video

Monitor:HD Digital Capacitive Screen

Video Display:1080P HD

Phonelink:Snyc with Android Smartphone

Tire Pressure:Support

Bluetooth:Hands Free, Support Phonebook

Languages:Multi-Languages Support

WiFi/3G Internet:Support

OBD:Support

Audio System:Hi-Fi 5.1 Audio Output

Fuel Info:Support

Export Markets:Global

Additional Info.

Trademark:cartouch

Packing:4PCS/ Carton

Standard:CE RoHS SGS GMP

Origin:China

HS Code:85269110

Production Capacity:10000PCS/ Month

Product Description

Shortcut keys Function
Capactive Touch Screen
Support 1080P HD Video Display
WIFI/3G Internet
DSP (Digital Signal Processing System)
FM/AM Tuner/RDS
DVD/CD
Support PHD Max 32GB SD/USB
Support Audio:MP3 AAC FLAC APE
Support Video:MPEG4 AVI RM FLV ASF WMV
Support Pictures:JPG PNG GIF
Bluetooth Function
GPS Navigation
Support2D/3D Map Views:YES
Ipod Ready
Support iPod Touch,iPod Nano,iPhone4/4s.
Steering Wheel Control
Supports NTSC/PAL Signsl lnput.
DVR(Front DVR Camera)(Optional)

OS	WINCE6.0
CPU	Mediatek MT3360 Cortex A11 dual-core
RAM	SAMSUNG DDR3 256MHz
Flansh	128MHz
Radio	ST7706 FM/AM
GPS	Mediatek MT3328
Screen	Capacitive and multi-touch screen (Original Hanstar Screen )
TFT drive IC	Mediatek 3360
Loader	Corepine
Pick up	HITACHI 1200XH
motor drive	MABUCHI
Amplifer IC	TDA7388
DVD decoder IC	Mediatek MT3360
Power supply	4*45W
Bluetooth	Mediatek MT6622
Video Decoder	1080P
WIFI	External
DVR	External 720P
Multi media Parameters
Music Format	MP3,WMA,AAC,WAV,FLAC, APE
Video Format	MPEG-1/2/4,H264,H263,VC1,RV,RMVB,DivX,Sorenson SparK,Spark,VP8,AVS Stream
Picture Format	JPG/BMP/JEPG/GIF/PNG
Radio Parameters
Frenqency Range	FM: 65.0MHz-108.0MHz
Frenqency Range	AM: 522KHz-1710KHz
Country	China,Europe,Russia,USA1,USA2,Japan
DVD Parameters
Vidio output range	1.0V-1.2V(75?)
Compatible Disc	DVD/DIVX/MP4/MP3/CD/VCD
Amplifer Parameters
Test Voltage	14.4V
Max output power	4*45W
GPS Parameters
Operation system
Support Map	IGO/Navitel/Rout66/PolNavi, etc.
Main Frenqency	800MHz
Map Solution	800*480
WIFI Parameters
Power supply	Vcc_5V
Suppoted Protocol/standard	IEEE802.11B/g/n compatible WLAN
Interface type	USB2.0
Frequency	2.4-2.484GHz
Modulation	OFDM/DBPSK/DQPSK/CCK
RF Power	15dBM
