for Honda F20 Forged Steel 4340 Racing Rod

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$26.0 - $27.0 / Piece

Min. Order (Pieces)	Unit Price
20.0	US $ 26/ Piece
100.0	US $ 27/ Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union

Price Valid Time:From Jun 02, 2015 To Nov 20, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:B18A 5.394",B18C/GSR 5.433",B16A 5.290",K20 5.464

Car Make:Honda F20

Material:Forged Steel 4340

Surface Treatment:Shot Peening

Handle:H Beam & I Beam & X Beam

Size:Can Random Alter

Service:Color Laser Typing Logo & Free Sample

Delivery:30days

Guarantee:3 Years

Payment:30% Deposit, 70% Before Delivery

Other Model:H22 5.485", D16 5.394", H22 5.636", H23/B20A/F22

Export Markets:Global

Additional Info.

Trademark:XYTOSAN, KOSFA, GPM, GEO PARTS

Packing:Xytosan Packing, Neutral Packing, as Your Required

Standard:OEM/STD

Origin:Anhui(Mainland of China)

HS Code:8409919930

Production Capacity:200, 000PCS/Month

Product Description

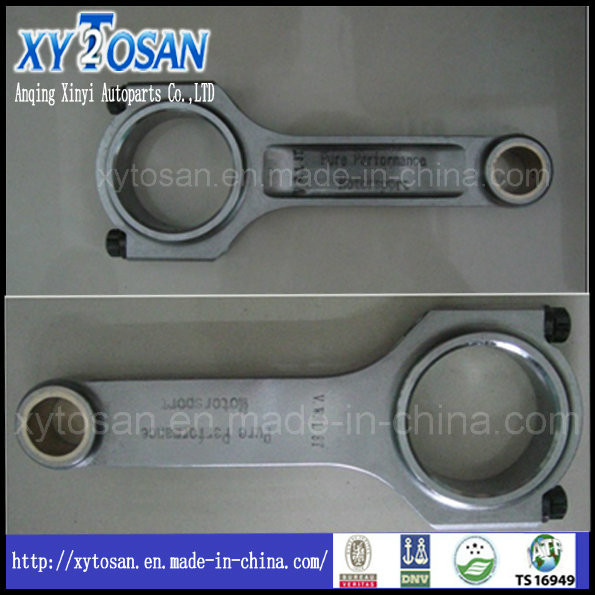

Honda F20 Forged Steel 4340 Racing Rod

Product Detail

1). Material:Forged Steel 4340;

2). Surface Treatment:Shot Peening;

3). Handle:H Beam & I Beam & X Beam;

4). Hardness: 600-1000HRC;

5). Size:Can Random Alter;

6). Technological Process of Production:

Roughcast testing whiling drawn into	?	Mill rod, Cover plane	?	Capitulum hole drilling and converse angle	?
Rough mill pole double-plane	?	Rough tang capitulum hole	?	Rough mill pole cover stage	?
Rough mill haftarah plane(intrados)	?	Semi finished product test	?	Benchmark of mill and serial number	?
Polished mill pole cover stage	?	Rough tang big hole	?	Mill tile slot	?
Screwed hole drilling	?	Fitting and proficiency	?	Semi polished pole cover double plane	?
Semi-polished capitulum and converse angle	?	Oil hole drilling	?	Copper oppression cover	?
Polished mill pole cover double plane	?	Degaussing	?	Polished tang capitulum hole	?
Finished product checking	?	Precise milling	?	Weighing,grouping and tabing	?
Generaltests	?	Cleanout,Oil antirust oil	?	Packaging and leaving factory

7). Certification: ISO9001, TS16949, etc.;

8). Brand: XYTOSAN,KOSFA,GPM, GEO PARTS,etc.;

9). Production Capacity: 200,000 pcs/month;

10). Delivery Day: 30 days after received the deposit;

11). Quality guarantee: 3 years;

12). Our main export market:North America, South America,Europe,Asia,ect.

Service

1). New products can be developed upon customers' sample or drawing;

2). Samples can be sent for customers to check the quality before ordering(if we
      have them in stock);

3). Making color laser logo upon customers' needs;

4). Our factory can provide OEM service;

5). We can offer various of connecting rod,such as:BENZ,BUICK,CATEPILLAR,
      CUMMINS,DAEWOO,FORD,HINO,HONDA,ISUZU,KIA,KOMATSU,LADA,
      MITSUBISHI,NISSAN,PERKINS,PEUGEOT,SUZUKI,TOYOTA,VOLVO,etc.

6). Other engine parts: engine valve, valve guide, cylinder head,complete cylinder
      head,crankshaft,camshaft,valve tappet,rock arm,rock arm assembly and so on...

No.	Type	Engine	pcs/set	(mm)c-c	B/E bore	S/E bore	B/E W	S/E W	bolt
No.73	Honda	B18A 5.394"	4	137.007	48	21	23.75	23.5	3/8"
No.74		B18C/GSR 5.433"	4	137.922	48	21.006	21.79	23.5	3/8"
No.74d		B18C/GSR 5.433"	4	137.922	48	21	21.79	22.86	3/8"
No.75		B16A 5.290"	4	134.37	48	21	23.75	23.5	3/8"
No.76		K20 5.464"	4	138.79	51	22	19.86	19.81	3/8"
No.76b		k20 (I)	4	139.014	48.006	21.996	23.75	21.59	3/8"
No.77		H22 5.485"	4	139.32	48	21.006	21.79	23.75	3/8"
No.78		D16 5.394"	4	137.007	48	19.006	22.81	18.19	3/8"
No.78D		D16(D16-H)	4	137.007	48	19.006	22.81	18.19	3/8"
No.79		H22 5.636"	4	143	51	22.006	23.75	23.5	3/8"
No.156b		F20	4	153	51	23	23.85	23.85	3/8"
No.157		H23/B20A/F22	4	141.75	51	22	22.86	22.83	3/8"
No.158		K24A	4	152	51	22	19.86	19.81	3/8"
No.179		D15B2 5.295"(L)	4	134.5	45	19	22.8	18	5/16"
No.179b		D15-I 5.370"	4	136.4	48	19	22.81	18.19	3/8"
No.244		5.405"	4	137.287	48	22	23.75	23.5	3/8"
No.245		6.050"	4	153.67	48	22	23.75	23.5	3/8"
No.295a		B18C	4	137.9	48	21	21.8	18	5/16"
No.295b		B18C-2	4	143.9	48	18	21.8	18	5/16"
No.504			4	149	43	18	17.8	17.8	3/8"
No.456		K 124	4	124	48	20	21.75	21.75	3/8"
No.305		F23	4	140.485	48	21	23.8	20	3/8"

Package

1). XYTOSAN packing

2). Neutral packing

3). According to customer's requirement

Contact us

ANQING XINYI AUTOPARTS CO.,LTD

Contact Person: Miss Juley

Tel: +86-556-5675229

Fax: +86-556-5171000

Mobile: +86-13865157191

http://xytosan.en.made-in-china.com

Web:http://www.osvat.cn
