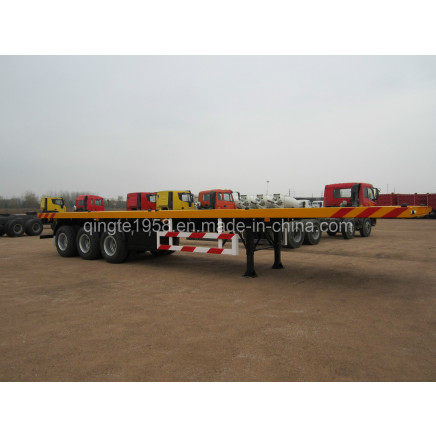

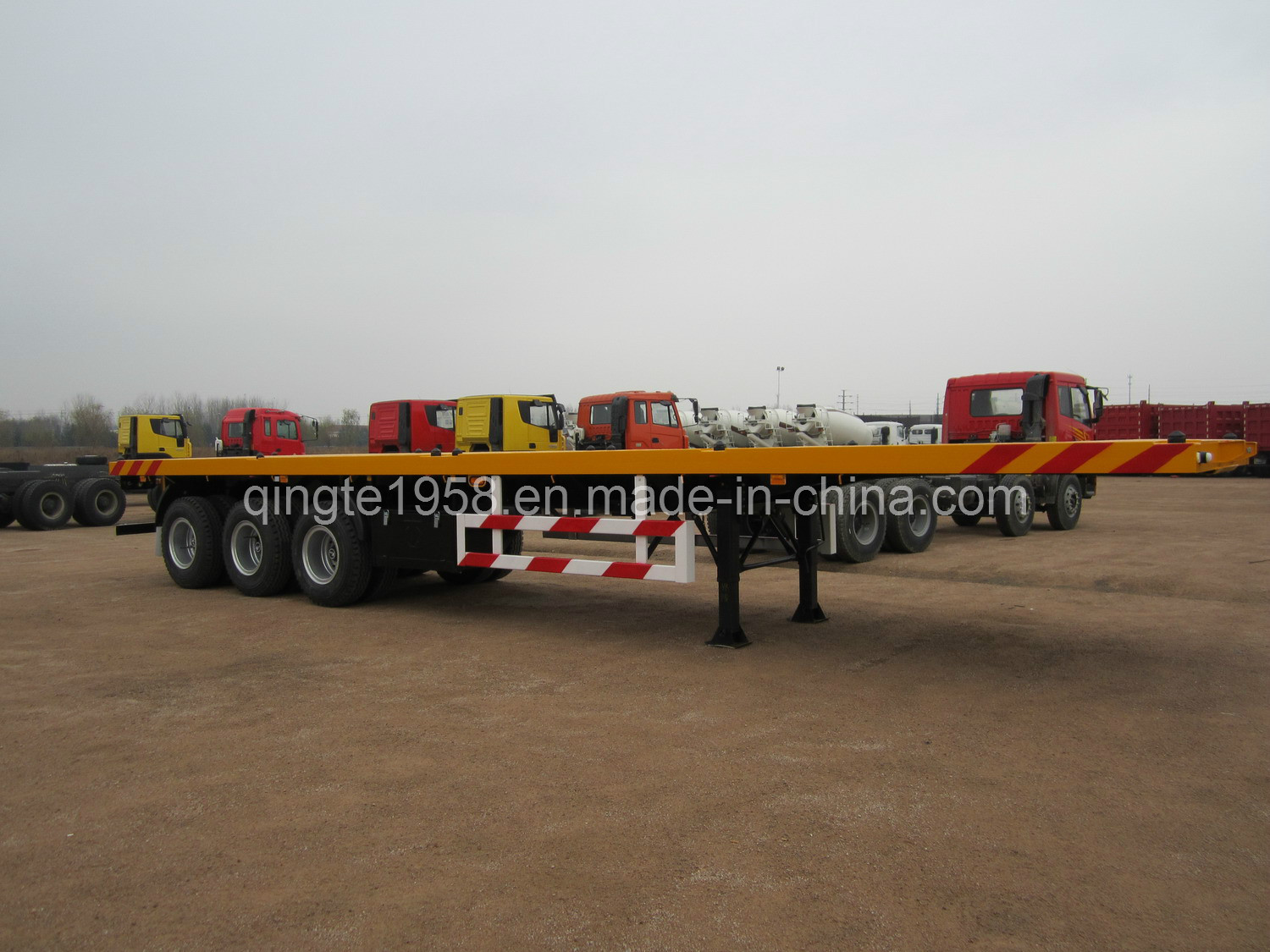

Flatbed Semi Trailer (Container Semi-trailer)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 12000/ Piece

Price:US $12000.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 04, 2015 To Jun 04, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:20 feet, 30 feet, 40 feet, 45 feet

Type:Semi-Trailer

Towing Pin Material:Alloy Steel

Impeller Type:Front Semi-open Type

Hook Type:Single

Universal Joint Type:Flexible Universal Joint

Brake Pad Material:Less Metal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Material:Steel

Scale:Heavy Duty

Certification:ISO/Ts16949, ISO

Load Capacity:50t

Contact Person:Mr. Chen Feng(Manager of African Market)

Cellphone:+86-13964262856

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS, CE

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:20000/Year

Product Description

Basic Parameter:
1, Type: QDT9401TJZP Tri-axle flatbed container semi-trailer Suit to: 6X4
2, Overall Size: 12355X2450X1504(mm);
3, Tare weight: 7300kg Max. Payload: 40Tones;
4, Axle distance: 7090+1310+1310(mm);
5, Hanger: American type or German type. WABCO Brake System;
6, Axle: BPW 13T or YUEK 13T, Wheel Track: 1820/1820/1820(mm); Tool Box: 1PCS; Spare Tire Bracket: 2PCS;
7, Tires: (12R22.5 or 12R20), 13PCS; Rims: (22.5X9), 13PCS;
8, Kingpin: JOST 2inch or 3.5 inch; Landing Gear: JOST-C200; LED light, Twistlocks: 12PCS;
9, I-beam: (500mm), Band Plate(16mm), Web Plate(8mm)

The above trailer frame's design is used steel Q345B for I-Beam.
We can also make the trailer frame lightly with high strength steel T700, same capacity, but the tare weight of semi-trailer will be reduced about 1Ton. We can supply the completed semi-trailers in SKD type and load trailer frames, spares etc. By containers, which will help you to decrease the cost of sea freight and is covenient to the shipping time, and also we will instruct you to weld and assemble the semi-trailers. We can design and produce as your requirement.

Pls don't hesitate to contact with me if you need the semi-trailers(flatbed, skeleton, lowbed, drop side, stake, port special, bitumen tank, diesel tank. My contact informations are as following:

Contact Person: Mr. Chen Feng(Manager of African Market)
Cellphone: +86-13964262856
