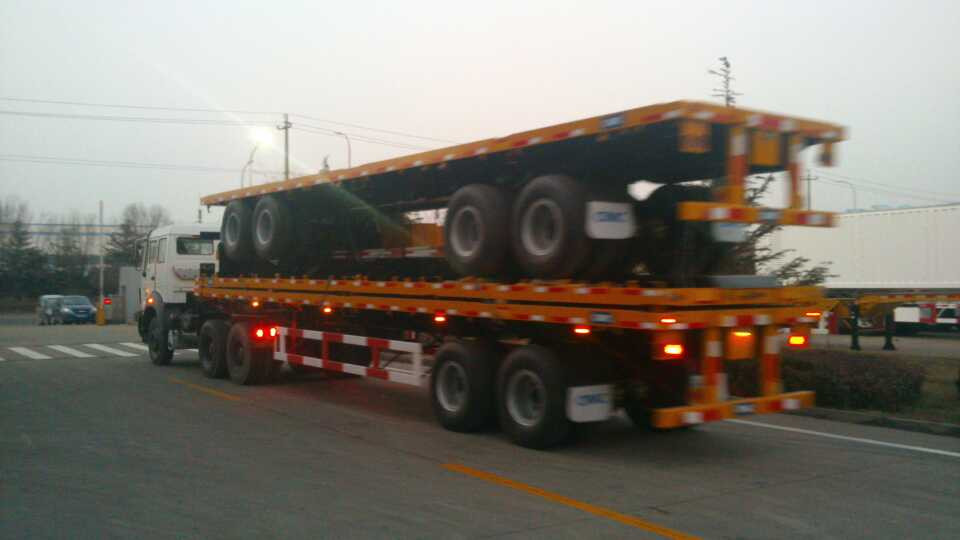

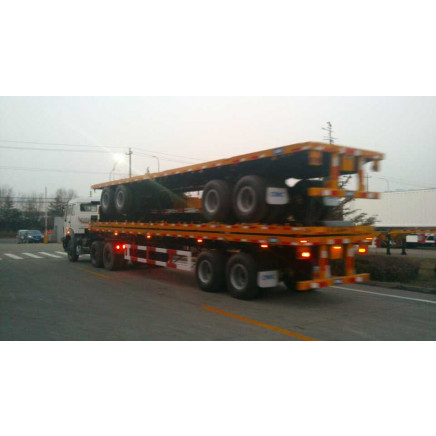

Flat Bed Semitrailer

Flat Bed Semitrailer

More Views

Flat Bed Semitrailer

Be the first to review this product

More than 10 available

Availability: In stock

Price:US $10000.0 / Piece
Min. Order (Pieces) Unit Price
1.0 US $ 10000/ Piece
Trade Terms: FOB, CFR, CIF
Payment Terms: L/C, T/T
Price Valid Time:From Jan 23, 2015 To Apr 15, 2015
Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now
OR
Flat Bed Semitrailer

Also available at

Login or Signup to View Links.
Description

Details

Basic Info.

Model NO.:ST9401TJZ
Type:Suspension
Towing Pin Material:Carbon Steel
Impeller Type:Closed Type
Hook Type:Double
Universal Joint Type:Rigid Universal Joint
Brake Pad Material:Semimetal
Towing Pin Type:Mushroom Type
Towing Pin Diameter:90mm
Differential Gear Type:Gear Type
Independent Suspension Type:Cross Arm Type
Brand:Cimc
Color:Optional
Certificate:ISO9001 CE BV SGS
Suspension:Optional
Export Markets:Global

Additional Info.

Trademark:CIMC
Packing:Nude Packing
Standard:ISO CE SGS
Origin:China (Mainland)
Production Capacity:1000 Units/One Month

Product Description

This semi-trailer is used in transportation construction machine.
General
Overall Dimension13000mm*2490mm*1600mm
Tare Weight7630kgPay Load40ton
King Pin Setting1240mmRear Overhang1690mm
Track1840mmWheel base6800mm+1305mm+1305mm
Running Gear
SuspensionTri-axle 11-pcs leaf spring suspension with equalizer beam
Tires11.00R22.5, 12units
AxlesCNHTC axle, 13T capacity
BrakesDual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
Under Frame
Main BeamI shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross BeamMild Alloy Q235
King PinSize: 50# (2'') or 90#(3.5''); Type: welded or assembled
Landing GearSingle side operation or double side operation, Static capacity 30Ton
Twist Locks12 lock positions with 8 twist locks
Flatbed FloorCheckered sheet, thickness 2.5mm
Toolbox1 tool box, length 1.5m
Electrical & Paint
Lights & ReflectorsRear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring24V, 6 lines
Air/Elec. ConnectorISO standard air connector, 24V 7 pin plug socket
PaintColor upon request

Additional Information

Additional Information

Manufacturer N/A
Send inquiry? Yes
Trending Product N/A
Invite Distributors N/A
Credit Points N/A
Price Match N/A
Reviews
Seller: Qingdao Seize The Future Automobile Sales Co., Ltd
Shandong,China

Truck, Dump Truck manufacturers / suppliers in China, offering Sinotruk HOWO 6*4 371HP Tractor Truck, Sinotruk 4X2 290HP HOWO Tractor Truck/Trailer Head, North ... Read More

Other products from this seller Container Trailer Low Bed Semitrailer (2/3 Axles) Low Bed Semitrailer (2/3 Axles) Cimc 4 Axles Construction Machinery Transportation 80ton Low Bed Semi Trailer CIMC 3 axles flat bed container semitrailer 40ft CIMC 40ft container semitrailer flat bed 3 axles More
