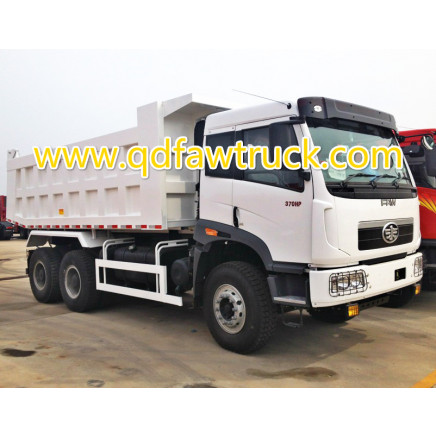

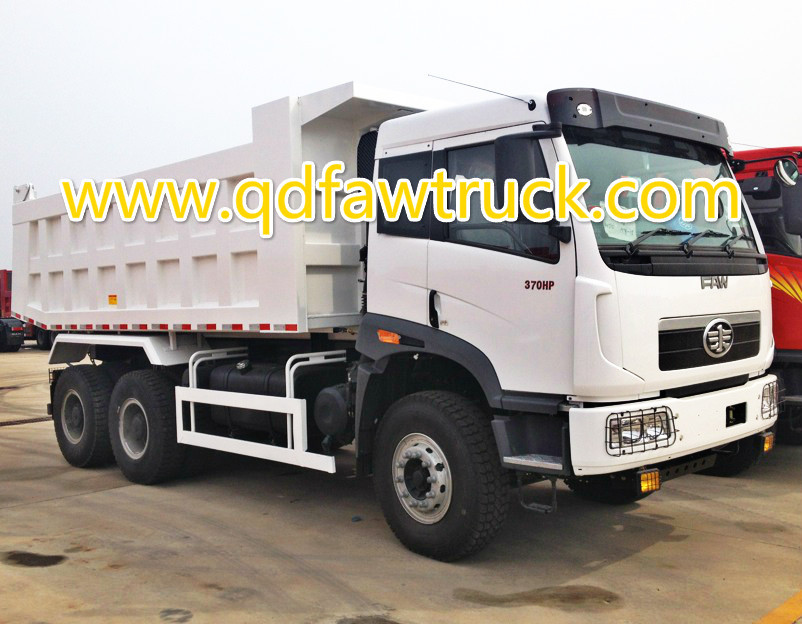

FAW J5P 30 Ton Tipper

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF

Payment Terms:L/C, T/T

Trademark:FAW

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Drive Wheel:6×4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:8704223000

Production Capacity:50 PCS/Month

Product Description

FAW 30 Tons Tipper
Disel: 4-Stroke direct injection diesel engine 6-cylinder in-line with water cooling, turbo-charging and intercooling
Engine model: STEYR, Euro II, WP10.380
Maximum output: 380HP at 2200 rpm according to DIN
Maximum torque: 1500Nm at 1100-1600 rpm
Displacement: 9.726L
Bore: 126mm Stroke: 130mm

Clutch
? 430diaphragm spring clutch A-type, hydraulically operating with air assistance

Transmission
FAST FULLER 12speed 12JSD160T

Driving axle
BENZ Tech LC300 16t strengthened axle (punching-welding axle housing, double reduction driving axle, inter-wheel differential and differential lock

Front Axle
STEYR 9 ton front axle

Chassis
Frame: "I"type cross section in vertical, 850mm X 300mm X 10mm
Front suspension: Conventional and parallel leaf spring type suspension
Rear suspension: Inverted leaf spring stabilizator suspension

Steering
USA TRW technologye

Braking System
Service brake
Brake gap can be adjustedautomatically, double circulation air brake system
Parking brake
Spring energy, compressed air operating on rear wheels
Auxiliary brake: Engine exhaust valve brake
Wheel & Tyres
12.00R20/ 12R22.5 Bias tyres

Rim: 8.5-20
No. Tire: 10+1 spare
Dimensions in mm
Wheel base 3825+1350
Front wheel track 2022
Rear wheel track 1860
Front overhang 1525
Rear overhang 2000
Approach angle(° ) 20
Departure angel(° ) 23
Overall length 9114
Overall width 2500
Overall height 3550

Cargo Tipper body
Body size(mm)
5600× 2300× 1500
Capacity
19.32CBM
Thickness of body steel(mm): Floor 8 side & back 4

Weight in kg
Kerb weight 12270
Front axle loading capacity 9000
Rear axle loading capacity 16000X2
Performance
Maximum driving speed(km/h) 90
Maximum gradeability(%) 30.
