Faw 8X4 Big Capacity LPG Cylinder Transport Truck for Sale

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (set)	Unit Price
1.0	US $ 40000.0-65000.0/

Price:$40000.0 - $65000.0 / set

Trade Terms: FOB, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 02, 2015 To Jul 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW5687

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Propane

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Brand:Clw

Description:Faw 8X4 Big Capacity LPG Cylinder Transport Truck

Axle:4 Axle

Volume:35.5cbm

Design:Original Equipment Manufacturer, Original Design M

Package:Bulk, RO-RO, Container, Naked, Waxed

Terms of Payment:FOB, CIF

Tire:Optial

Certificate:CCC and Others

Color:Red, White, Brown, Camo, Any Color Any Your Reques

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:Bulk, RO-RO, Container, Naked, Waxed

Standard:CCC, BV, SGS

Origin:Hubei. China

HS Code:8705909090

Production Capacity:800sets/Month

Product Description

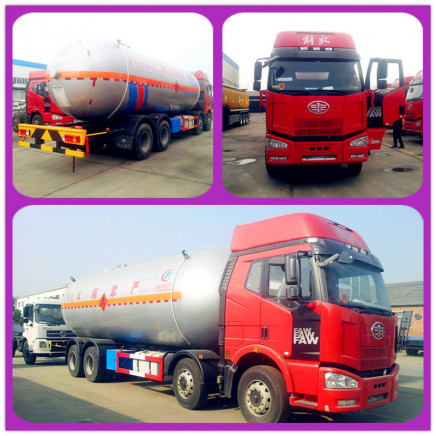

Faw 8x4 big capacity lpg cylinder transport truck for sale

Description	Faw 8x4 big capacity lpg cylinder transport truck for sale
Vehicle Parameter
Drive Model	8x4
Fuel Type	Diesel
Chassis Mode	CA5310
Vehicle Main Dimension in MM	Dimension(LxWXH)		11700x2495x3690
	Wheel base		1950+4550+1350
	Overhang (front/rear)		1400/2450
	Wheel track		1950/1950/1847/1847
	Approach/Departure angle		18/12�
Weight in KGS	Curb Weight		15960
	Loading Weight		14910
	GVW		31000
Max. driving speed(km/h)			79
Engine	Model		BF6M1013
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		285HP
	Emission standard		Euro IV
Gearbox	8 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	380
Tire	11.00R20, 12pcs+1spare
Number of axles	4
Brakes	dual circuit compressed air brake
Tank Parameter
Tank Dimension(LXD)		8963x2375mm
Fact cubage		35.5CBM
Design pressure		1.61Mpa
Design temperature		50 �C
Filling medium		LPG( Liquid Propane Gas) 420~490kg/cbm
Tank material		Q370R
Corrosion allowance		1.0 mm
Hydraulic test pressure		2.10Mpa
Thickness
Tank	10.7mm
Cover	7.0mm
Configuration and Accessories
1) Mechanic liquid level meter 2) Pressure meter 3) Thermometer 4) Double emergency cutting valve 5) Double safe valve 6) Two tool boxes 7) Double valve boxes 8) Single outlet 9) Double loading and unloading system 10) Fire extinguishers 11) Plastic mudguards 12) Anti-Static tape Optional equipments 1) Double outlets 2) Rubber mudguard

About Our Company

Our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3Cauthentication.We can produce various kinds of LPG Trucks, LPG Semi-trailers and LPG Storage Tanks.

1.The biggest LPG truck's valid volume is 35.5cbm
2.The biggest LPG trailer's valid volume is 58.5cbm;Low transport costs, more profit.
3.Our LPG storage tank is ranged from 10cbm to 100cbm, both ground and underground.

We CLW Heavy Industry Co., Ltd are a professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks, semi-trailers, and storage tanks.
All  our products comply with the international quality standards and are greatly appreciated in a variety of markets around the world like  Africa, North America, Middle East, Australia and so on.

CLW Heavy Industry Co., Ltd also provide products as follows:

1.LPG Tank Truck Trailer/ Fuel Tanker Truck
2.Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3.Truck with crane / Truck mounted crane
4.Dump Truck / Tipper Truck/Side Tipper/End Tipper
5.Fire Fighting Truck / Fire Truck / Fire Vehicle
6.Concrete Mixer Truck
7.Van truck / Blasting equipment transporter/ Refrigerated truck
8.Fecal suction truck / Sewage suction truck
9.Cement Powder Tank truck/ Bulk cement truck
10.High-altitude operation truck
11.Self-loading garbage truck, garbage compactor truck,sealed garbage truck
12.Tractor
13.High Pressure Cleaning Truck
14.Sweeper Truck
15.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc.)

FAQ

1.Q:How about the quality of trucks of your factory?
A:Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates.The chassis and spare parts come from the original manufacturers with anti-fake label.

2.Q:How many years of your company's service, especially after-sale service?
A:CLW Heavy Industry Co., Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days.We offer 1 year after-sale service.

3.Q:Is there any advantages of your price?
A:CLW Heavy Industry Co., Ltd is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4.Price term: FOB, CIF.

5.Payment:30% deposit after order confirmation, 70% balance should be paid before delivery.All by T/T,  L/C.

6.Delivery time: 25 working days after payment is received.

7.Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special  order for you.

Any question please contact me without hesitation!!!

CLW Heavy Industry Co., Ltd
International Trade Center
Contact person:Nancy Wang
Website:Http://truckcl.En.Alibaba.Com
Cel:+86-13872880251
+86-18186127295
Fax:+86-27-83796298
