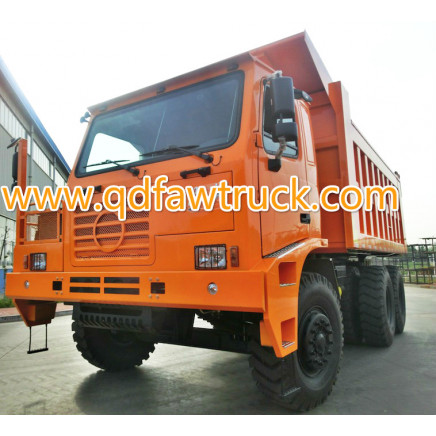

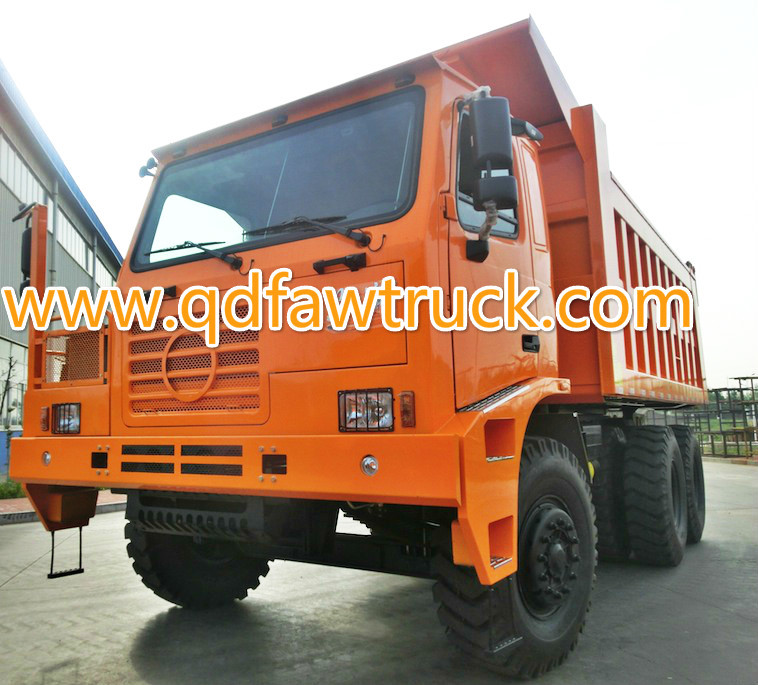

Faw 60 Tons Mining Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 74500.0-119800.0/ Piece

Price:$74500.0 - $119800.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 08, 2014 To Mar 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:Dump truck

Transmission Type:Manual

Power:Diesel

Load Capacity:51-60t

Emission Standard:Euro 3

Drive Wheel:6×4

Engine Capacity:?8L

Seats:1

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:ISO

Origin:China

HS Code:87042300

Production Capacity:20PCS/Month

Product Description

FAW 60 Tons Mining Dump Truck\Tipper, Dump Truck, Tipper, Mining Dump Truck, Dump Truck, Dump Tipper, Heavy Truck, Tipper Truck, FAW Dump Truck
Traction type: 6X4
Driving type: LHD
Cabin: Single seat cab(Air conditioning)

Engine
Engine brand: YUCHAI BRAND/ XICHAI BRAND
Engine model: 390HP / 420HP Euro III
Engine type: 6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection
Displacement: 9.726 liters
Max. Output: 390HP@2200rpm
Max torque: 1750NM@1100-1600rpm
Specific fuel consumption: 192g/Kwh

Gear box
Gear box: FAST FULLER 12JSD220T

Clutch: GF430J spiral spring
Steering: ZF 8098, hydraulic steering with power assistance.

Tyre
Tyre: 14.00-24/ 16.00-25
No. Of tyre: 10+1spare

Front axle: STEYR Strengthened wide welded box stiff front shaft
Rear axle: Strengthened wide steel two-grade reducing and double tires drive axle
Fuel tank capacity (L): 400
Max. Speed (km/h): 50
Wheel base (mm): 3800+1400
Front overhang (mm): 1500
Rear overhang (mm): 1000
Front track (mm): 2400
Rear track (mm): 2200
Approach angle: 29 degree
Departure angle: 34.5 degree
Dimension (mm): 8360x3000x3425 /8690x3500x3670

Body:
Inner size(mm): 5600x2800x1500 / 5950X3300X1750MM
Loading Capacity: 40/60 Tons
GVW: 65/ 90 Tons
Thickness of body steel(mm): Floor16mm side & back 12 mm

Engine	YUCHAI 390HP, YUCHAI 460HP
Gear box	12JSD220TA, 12JSD250TA
Tyre	14.00-24/ 16.00-25
Loading capacity	40/ 60 tons
GVW	65/ 90 tons
Dump body	5600x2800x1500/ 5950x3300x1750mm

Additional Information
