FAW 40 Tons 8X4 Dump Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 48900.0-59900.0/ Piece

Price:$48900.0 - $59900.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Dec 12, 2014 To Mar 31, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CA3310

Transmission Type:Manual

Power:Diesel

Load Capacity:41-50t

Emission Standard:Euro 2

Drive Wheel:8×4

Engine Capacity:?8L

Seats:?5

Horsepower:351-450hp

Tire Type:Inner Tube

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Truck Type:Dump Truck

Type:Cargo Truck

Brand:Faw

Steering:Rhd, LHD

Driving:8X4

Capacity:50 Tons

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:FAW

Packing:Nude Packing

Standard:CCC

Origin:China

HS Code:87042300

Production Capacity:300 PCS/ Month

Product Description

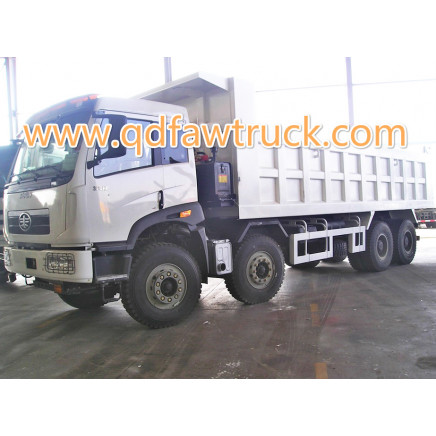

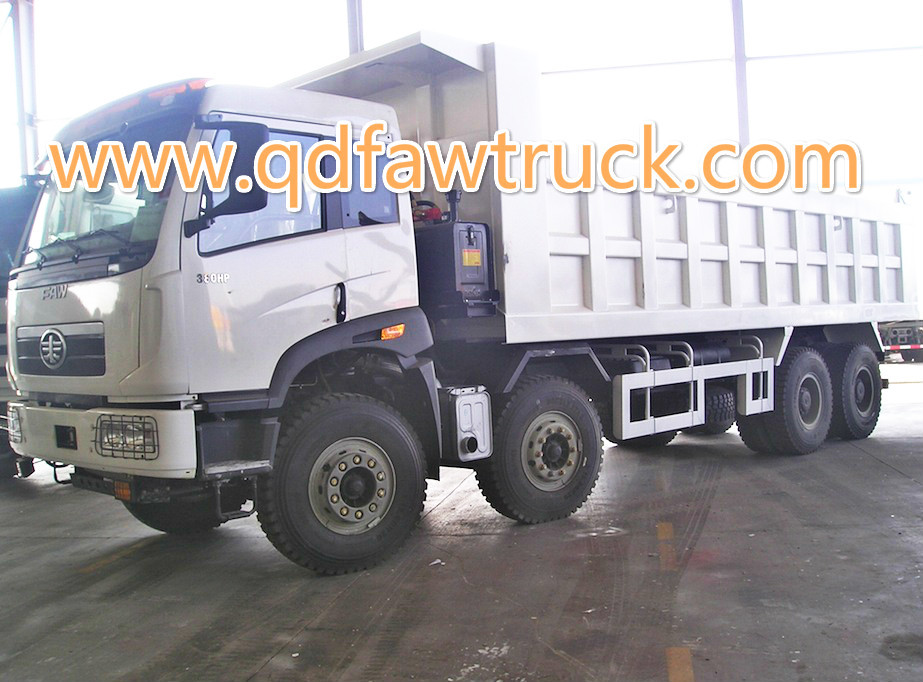

New Condition FAW 50 Tons Tipper
FAW 50 Tons Dump truck
Overall dimensions Length 10488
Width: 2500
Height: 3185, 3480
Axle base (full load): 1860+3960+1350
Front overhang(loaded): 1438
Rear overhang(loaded): 1880

Wheel base Front wheel: 2020
Rear wheel: 1840.
Ground clearance(loaded) Under front axle: 285
Under rear axle: 290
Passing angle(loaded) Approach angle: 24
Departure angle: 39
Mass
Parameter Curb weight (kg): 15725
Gross truck weight: 31000
Payload weight(kg): 15080
ENGINE: WP10.336N, WP10.340E32
TRANSMISSION: CA10T, FULLER 12JS160T
REAR AXLE: LB300
TIRE: 12.00R20
Cargo box dimension: 7600X2300X1500. Mm

Q: What's the brand of your truck?
A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.

Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us.

Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.

Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.

Product Description
FAW 380HP engine, FAW gearbox, 40-50 tons loading capacity

Packaging & Shipping
Nude packing or 40'HQ

Our Services
Spare parts, Warranty

Company Information
FAW, The first Auto works in China, have the longest truck producing history and more than 56 years producing experience.

FAQ
T/T, L/C could be accept.

OVERALL SIZE(mm)	1134025003600	GVW(Kg)	51000
CARGO SIZE(mm)	7200/7400× 2300× 1500	FACT LOADING(Kg)	40t-50t
APPROACH/DEPARTURE	24/16	CURB WEIGHT(Kg)	15300
F/R OVERHAND(mm)	1470/2120	MAX SPEED(km/h)	85
CHASSIS MODEL	CA3310P66K2L6BT4E
ENGINE TYPE	ENGINE MANAFACTURE	CC(ML)	POWER(KW)
WP10.380E32	WEICHAI POWER	9726	279
FUEL	DIESEL	EMISSION	GB3847-2005, GB17691-2005 EURO 3
AXLE	4	TIRE	12+1
WHEELBASE	1860+4300+1350	TIRE SPE.	11.00R20, 12.00R20, 11.00-20, 12.00-20
AXLE LOADING	6500/6500/18000	F TRACK	2050/2050
STEEL SPRING PLAT	10/10/12	R TRACK	1830/1830
