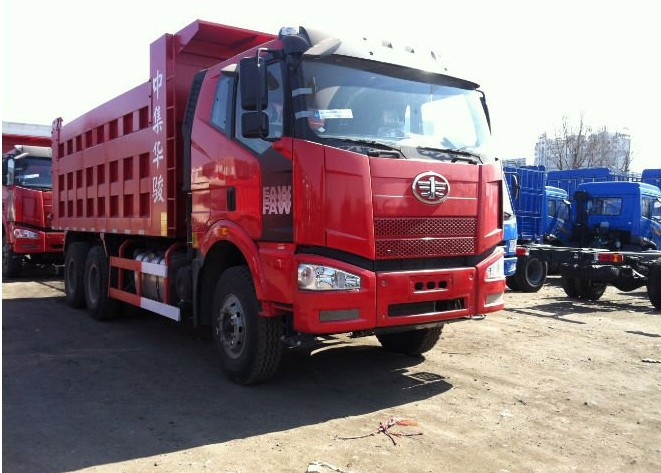

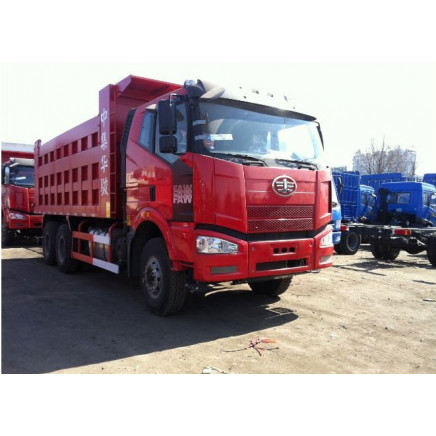

FAW 20 Cubic Dump/ Tipper Truck
Faw J6 Dump Truck, J6 Dump Truck, Faw J6 Tipper Truck, Faw J6 Dumper Truck, J6 Truck, J6 Tipper Truck, Faw J6 Truck, Faw J6 Tipper, FAW J6 dumper, J6 dumper truck, J6 Tipper, dump truck FAW, tipper TRUCK FAW, Tipper FAW, Dumper FAW, Dumper truck FAW, Truck FAW, China FAW, FAW China, China FAW group
FAW J6 Dump Truck
Type CA3250P66K2
Type Name 6*4 cab over engine reinforced towing truck
Cabin J6, A/C
Engine Model Xichai, CA6DL2-35E3F
Emission standard Euro 3.
Power (KW) 350PS
Clutch model 430mm, single plate, dry, diaphragm
Gearbox Model CA10TA/ FAST 12JSD160TA transmission
Rear Axle LC300 wheel reduction axle
Rear Axle speed ratio 5.733
Wheel & tire 12.00R20, Model 16Ply Rating
Frame Reinforced frame 300*80*(8+5)
Axle Base 3850+1350
Fuel Tank 400.
Overall dimensions Length 8560,
Width 2495
Height 3600(high top)3980(high-top dome) 3800(new high top)
Axle base (full load) 3850+1350
Front overhang(loaded) 1470
Rear overhang(loaded) 890
Wheel base Front wheel 2050
Rear wheel 1830
Ground clearance from topsurface of frame at fifth wheel Unloaded truck 1121
Full load 1058
Ground clearance(front/rear) 285/220
Passing angle(loaded) Approach angle 18
Departure angle 40
Mass
Parameter Curb weight (kg) 9520
Gross truck weight 25000
Weight distribution unloaded Front axle 4750
Second axle
NOTE:
We are a leading special purpose vehicle & vehicle body manuifacturer from China, our products: Refrigerated truck & body, Insulated truck & body, Dry cargo truck & body, Store/stake truck & body, Explosion-proof truck & body, Dump truck & body, Truck crane & body, Mobile catering truck & body,
Q: What's the brand of your truck?
A: Our brand is FAW, First Automobile Works is the biggest truck manufacture in China, our products cover all series such as tractor truck, tipper truck, cargo truck, and other special trucks.
Q: How can we trust your company?
A: We are the official authority company by FAW Qingdao Automobile Company. And we are registered in the Commercial Department of China, with the whole qualification for exporting, you would feel relax and safe to do business with us. We are your reliable partner.
Q: Can u provide the ISO9001 certificate or some others related?
A: Yes. We have been exporting trucks for years. Rich experience for exporting to different countries, African market, Russia, South America, this help us better know have to handle with different certificates needed.
Q: How about warranty item?
A: We could support u original spare parts. And also email or telephone assist in the following days. If necessary, for large quantity ordered, our engineer could go for technical assist.
