Factory Direct Supply Customized Asme 56cbm 27440kg Isobutane Transport Tank

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 33500.0-39800.0/ Piece

Price:$33500.0 - $39800.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jun 12, 2015 To Aug 18, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW Trailer

Type:Semi-Trailer

Certification:SGS, ISO/TS16949, CCC, DOT, ISO, CE

Loading Weight:5-120ton

ABS:With ABS

Tent Type:Complex

Axle Number:3

Tire Number:6

Color:as Your Like

Condition:New

Description:Factory Direct Supply Customized Asme 56cbm 27440k

Volume of The Tank:58000L

Shape of End Plate:Ellipse or Round

Filling Material:Propane/Propylene /Isobutane

Filling Coefficient:0.42

Baffle:4-5 PCS Inside

Safety Control System:Safety Valve, Pressure Mete

Tire:11r22.5 12r22.5

External Dimensions:13000*2500*3990

Export Markets:Global

Additional Info.

Trademark:CLW BRAND

Packing:Waxed Before on Board

Standard:ISO, CCC, CE CE, ASME, ASTM, EEC, ASME, ASTM, EEC

Origin:Hubei Suizhou

HS Code:87053010

Production Capacity:500unit/Month

Product Description

Factory direct supply customized asme 56cbm 27440kg isobutane transport tank
1, certificate ISO9001, 3C, ASME
2 High quality, low price
3 Loading LPG tanker volume 40cbm to 58.5cbm
4 Fuwa, L1 or BPW 3 axles.
5, Very Safety Control System: Float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.

LPG Tank Semi Trailer is also called LPG Semi -trailer truck, LPG semitrailer transport truck, is widely used in transporting kinds of LPG. It has large loading quality, safe, stable, etc features.

About our company

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

FAQ
1.Payment:
30% deposit after order confirmation, 70% balance should be paid before delivery. All by T/T, L/C.

2.Delivery time:
25 working days after payment is received.

Packaging & Shipping:
1. Naked or waxed before on board.
2. Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.

Our warranty:
1. One year quality guarantee for three key parts: Axles, engine, transmission.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.

Below specification is just for your reference. More information of our LPG Tank trailer.please feel free to contact with Ms. Kitty Zhen. We will customize the truck according to your requirement.

Sales Manager: Kitty Zhen
Mob.: 0086-133 4990 9442

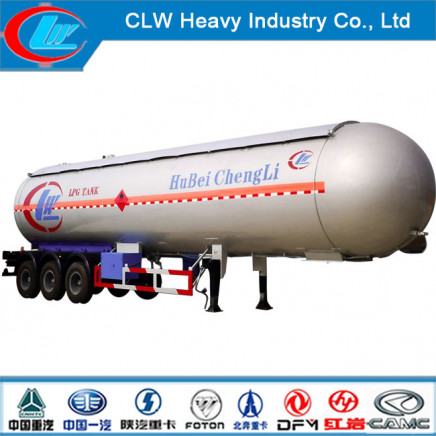

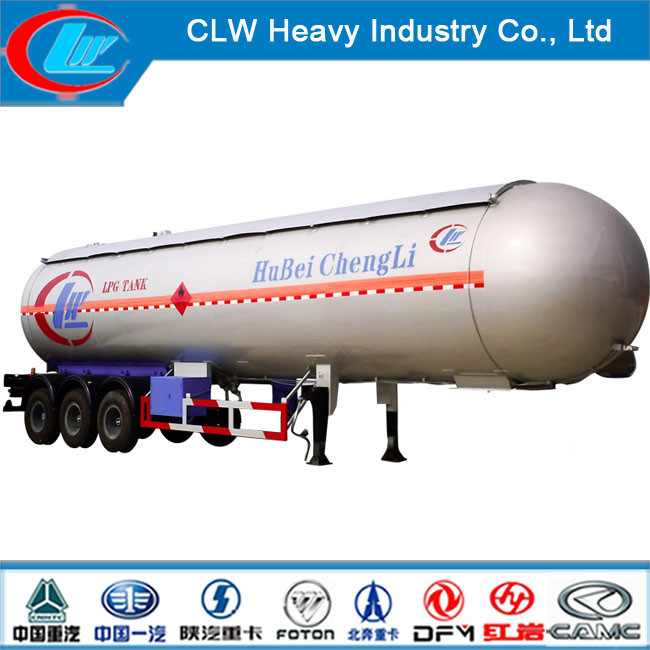

Photo for reference, finial product can be made according to exact requirements
Tank
Transporting Media		Dimethylmethane, Liquid Ammonia, Liquid SO2, LPG,Butane
Shape		Round Shape
Total Volume(m3)		56CBM
Tanker Body Steel Sheet		Q345R/11.5mm
End plate		Q345R/11.5mm, by punching
Parts for Tank
Manhole cover		3 sets of 500mm/Q345R manhole fixed on top of Tank, with breather valve
Unloading valve		2-3 sets of DN80 fixed at button of Tank
Pipeline at button of tank		4"seamless steel tube/Q345
Labeling system		Oil Type Indication
Anti-static electricity system		pulling, wire carrier, sheet copper (6 sheet-standard layout)
Other Parts
Ladder		1 unit at front of Tank
Guard on top of Tank		Zinc galvanized -guard-net
Oil hose box		Circular single hole tube, 1 unit on each side
Oil hose		2 unit, 3" x 6m size in black rubber
Side guard		cross bar-structure
Rear button guard		Fixed type
Work tank deck		Box type
Fire extinguisher box		2 unit at the back of each side
Mud guard		Steel structure in trapezoid form
Lights and wire		24V, 7 coils with lights for parking, reverse, instruction, head lamp and end lamp
Chassis
Main Beams		Heavy duty and extra durability designed; Opting for high tensile steel Q345R,welded by automatic Submerged-Arc processes
Axle		3 axle
		BPW brand FUWA brand
Landing Gear		JOST Two-speed, manual operating, heavy duty landing gear
King Pin		JOST 2"standard bolt-in king pin
Suspension		German design mechanical suspension
Pneumatic Braking System		WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.
Wheel rim		8.25R22.5 wheel rim
Tire		11R22.5 tubeless tire with one spare tire
Painting		Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final pain

Company Information

Cheng Li produced a liquefied gas storage tanks in series, can be used to store the different nature of the liquefied petroleum gas (propane), propylene, ammonia, dimethyl ether, methanol, butadiene, butane, ethylene oxide, methylamine, etc. In low pressure liquefied gases at room temperature; Volume from 10 cubic meters --- 100 cubic optional.
Chengli pressure components of the productIion materials, size and weld quality, operation quality, installation quality, safety valves and shut off valves devices and accessories within the strict qualification, inspection, test.
The tank materials on physical and chemical tests such as: Mechanical properties and chemical composition.
The tank welded joints, welding line, tank head, the pressure of the geometric location of each component through rigorous X-ray non-destructive testing and magnetic particle testing inspection
Factory scene

Our leading varieties include more than 100 types of trucks and related products such as water tank truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others. Our cooperation partners including Sinotruk, FAW, Dongfeng , FOTON, Schacman, Beiben, Hongyan and etc.
Other Semi-Trailer Products Series
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler tank Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Exporting

Chengli special automobile Co., Ltd is an automobile manufacturer , the company is a marketing enterprise of various heavy automobile brands, integrating international and domestic trade. Besides, the company has established a good relationship with domestic and overseas customers from Africa, South America, the Middle East and South Asia, winning a universal recognition and trust from the oversea customers and contributing to China trucks' entrance to the international market.
1.58 sets of military water trucks for national defense
2. Dump trucks in support of the United Nations
3. Fuel tank trucks exported to Sudan
4.78 sets of water truck exported to Nigeria
5. Dump trucks exported to the Ivory Coast, Kazakhstan
6.108sets of trucks exported to Libya
7.36 sets of dump trucks exported to North America
8.218 sets of garbage trucks exported to West Africa
9.60sets of water trucks exported to Congo
10. Garbage trucks exported to Vietnam
11.98 sets of dump trucks exported to Ghana

We are confident and committed to providing our customers with the best qualityand service all the time

If you are interested in our trucks, pls contact me, I will send our best quotation to you!
