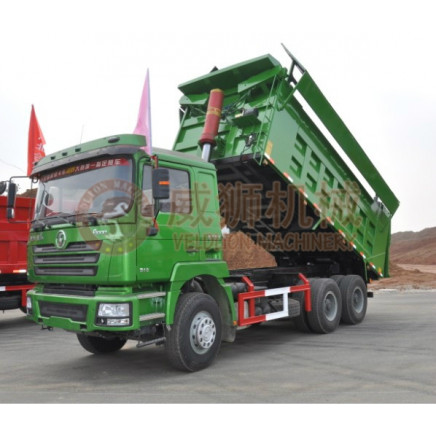

F3000 6x4 Dump Truck (VL3257)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 45900/ Piece

Price:US $45900.0 / Piece

Trade Terms: FOB, EXW, CIF, CPT, FCA

Payment Terms: L/C, T/T

Price Valid Time:From Oct 11, 2014 To Jan 11, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3257

Transmission Type:Manual

Power:Diesel

Load Capacity:25t

Emission Standard:Euro 3

Drive Wheel:6в4

Engine Capacity:6-8L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Dump Truck:Truck

Truck Type:Dump Truck

Type:Dump Truck

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude Packing or Roro Ship

Standard:CE, ISO9001: 2000

Origin:China

Production Capacity:300 PCS Per Month

Product Description

1. F3000 6X4 Dump truck Quick Details:

(1) The dump truck are mainly used for sand, rocks, and gravel transportation.
(2) Curb Weight: 12500kgs
(3) Overall Dimension: 8240в 2500в 3350mm
(4) Max Loading Weight: 30000kg
(5) Drive Mode: LHD/RHD, Diesel Engine 266HP - 420HP
(6) Steelsheet Thickness: Floor 8mm, front, side and back wall 6mm

2. Company introduce for China 20tons Dump Truck
HUBEI VELDLION MACHINERY Co., Ltd is an authorized dump truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

Our main products:
1. Dump Truck / Tipper Truck
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

Our Service:
(1) Over 400 workers include our sales and engineers will offer you the best design, price and quality;
(2) Pefect after-sales service, offer long days quality guarantee.
(3) within 7-24 hours feedback.

3. Contact us for China 20tons Dump Truck
Atten: Mr ERIC KE
Mobile: 0086-18961715558
Www. Veldlion. Com

4. Parameters datasheet

Product			Dumper truck
Model			WS3254
Chassis Model /Manufacturer
Overall Dimension	LengthвWidthвHeight		8500+2495+3450 mm
Box size	LengthвWidthвHeight		580023001100 mm
Total Mass			25000Kg
Max Payload			30000 Kg
Kerb Weight			12200Kg
The parameters of chassis
Chassis Model /Manufacturer			SX3254
driving type			6*4(Left hand driver)
Cab type			single row
Engine	Manufacturer :		XCQC
	Model		WD615.38
	Rated Power		380 HP
	Maximum power		280(KW)
	Displacement		9726ML
	Fuel type		Diesel oil
	Type		Straight six-cylinder, intercooling, Internal EGR
Wheel base			3625+1350mm
Front axle			7T front axle
Rear axle			Double 18T rear axle
Front/Rear wheel tread			2022/1830mm
The number of leaf spring			10/12
Tyre			12.00-20R
The number of tyre			10+1(spare tyre)
A/C Air Conditioning			With Air-Condition
Max Speed			75Km/h
The parameters of box
Box size		580023001100 mm
Material of Box		Q235B quality carbon steel
Floor/edge thickness		8mm/6mm (optional)
Color of the Box		According to your documents
