External Wall Decorative Panel

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:100 Square Meters

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T, Western Union

Trademark:OEM/Captain

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

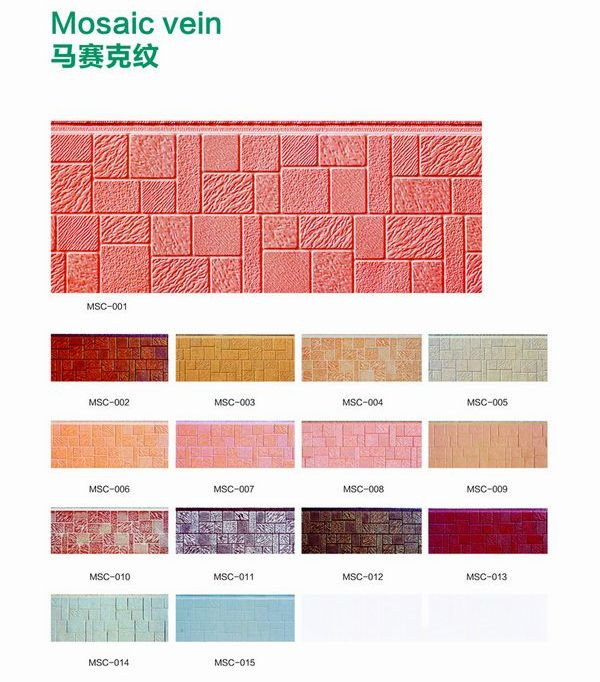

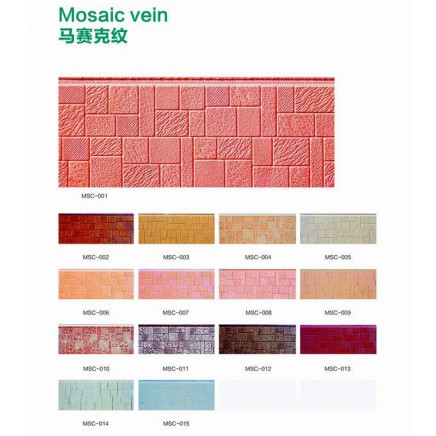

Model NO.:mosaic vein

Material:Sandwich Panel

Usage:Warehouse, Villa, Dormitories, Temporary Offices, Workshop

Certification:CE

Customized:Customized

Specification:Customized

Export Markets:Global

Additional Info.

Trademark:OEM/Captain

Packing:Export Container /Pallet /Disassembly with Carton

Standard:SGS, ISO

Origin:China, Shandong

Production Capacity:360000m/Month

Product Description

Specifications
1. Fireproof 2. High performance and low cost.
3. Green environmental, no asbestos.
4. Long-lasting color and ornamental.

Product name: Fireproof decorative board with fluorocarbon for exterior wall
Product type: HF-(5-30) specification: 2440mm*1220mm*(5-30)mm
Manufacture standard:
GB25970-2010HG/T3792-2005 GB8624-2006

The fireproof decorative board is a variety of inorganic materials with high temperature steaming, repression and high density fiber pressurization of the cement, special technology on surface coating high-performance fluorine carbon coating and PFM inorganic coating, color is rich, beautiful surface, and fiber reinforced cement with high density, bump pressure resistance, uv resistance, weathering resistance, wear resistance, weather resistance, corrosion resistance, easy to clean and fire non-combustible, antistatic, moisture proof and other excellent characteristics, is the metal building materials (the surface of the steel plate, aluminum curtain wall), natural stone, glass building materials and coatings and a veneer material.

Main features:
1. Excellent fireproof performance classA2.
2. Long-lasting color and ornamental.
3. Anti-acid, alkali, moisture, and acid rain.
4. Weathering stability, resistance to chemical corrosion.
5. Stability of the wind pressure.
6. Lasting antibacterial effect.
7. Green environmental, no asbestos.
8. High performance and low cost.

Application:

Products can be used for high-rise building exterior decoration engineering and office buildings, shopping malls, hotels, factories, railway stations, such as large construction of exterior wall decoration, the outside walls of the old buildings renovation and transformation, is the best decoration for subway, tunnel and other large engineering products.

Quality management:

Company is a comprehensive import ISO9001-2008 international quality management system, established a perfect quality management system, from raw material purchasing, storage, then delivery from factory, each procedure has strict scientific quality management process. And our company products have been certify by CE, products can be exported to the European market.
Our company set up a special testing center, equipped with full-time quality management and inspection personnel, equipped with advanced professional quality inspection equipment, to ensure product quality target.

Results
Serial No	Inspection Items	unit	Technical Requirements	Test Results	Individual Determinant	notes
1	In-container Status	/	No solid piece	No solid piece	Qualified
2	nonvolatile matter	%	?40	52	Qualified
3	Drying time	h	/	/	/
	Outer Drying		?2	1	Qualified
	Inner Drying		?24	8	Qualified
4	Pencil hardness	/	?F	4H	Qualified
5	adhesive force(1mm)		?1	1	Qualified
6	Shininess Deviation(60�)	�	?10	10	Qualified
7	Coating Thickness	?M	?200	200?M	Qualified
8	fluorine	/	?18%	18%	Qualified
9	frost resistance	/	Not being warped and no cracks	Not being warped and no cracks	Qualified
10	Acid resistance	/	No bubbling, hump, pulverization	No bubbling, hump, pulverization	Qualified
11	Alkali resistance	/	No bubbling, hump, pulverization	No bubbling, hump, pulverization	Qualified
12	wear resistant Consumables	/	?5L?M	5L?M	Qualified
13	Water absorption/(g/m2)soaked for 1h	/	No bubbling, hump, pulverization	No bubbling, hump, pulverization	Qualified
