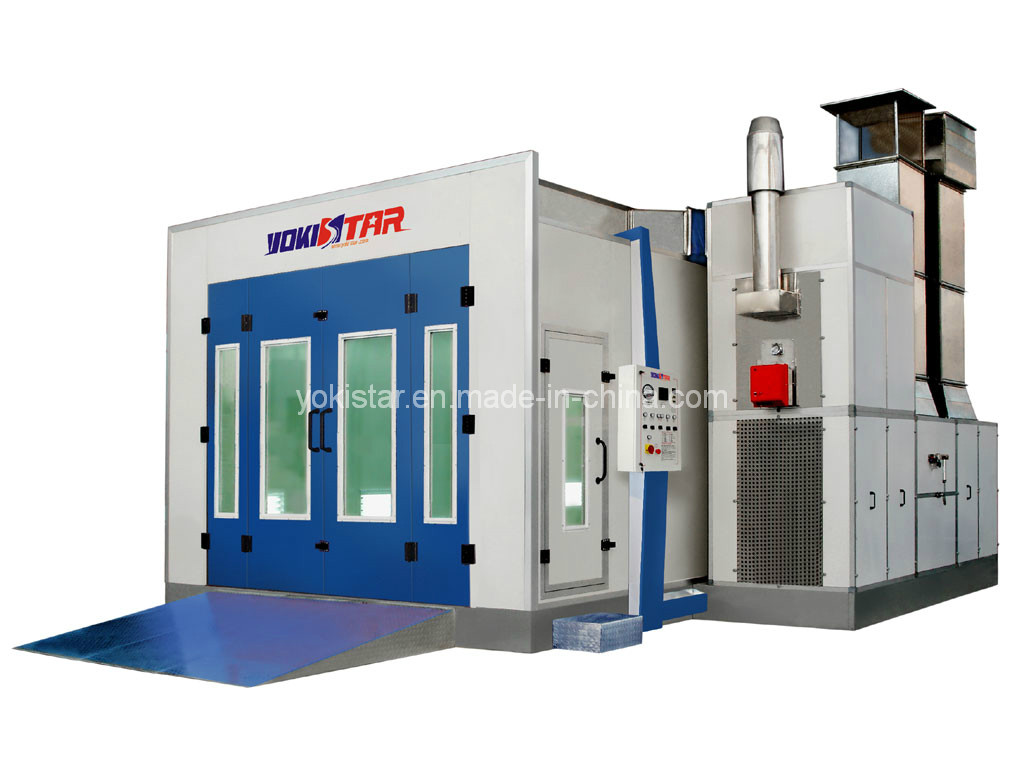

Excellent Powder Coating Commercial Spray Booths with Riello Burner

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Set

Trade Terms:FOB, CFR, CIF, EXW

Payment Terms:L/C, T/T, Cash

Trademark:YOKISTAR

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:YS-60

Certification:CE

Airflow Direction:Full Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Full Downdraft Airflow Way

Air Intake:1X7.5kw Direct Drive Turbo Fan

Air Exhaust:1X7.5kw Direct Drive Turbo Fan

Heating:Riello Rg5s Diesel Burner

Voltage:1X220V, 3X380V, Your Special Voltages Are Accepted

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Product:Spray Booth, Prep Station, Infrared Curing System

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:20?GP can load 1 set, 40?GP 2 sets.

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

Model:YS-60
Inside dimention:6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met.
designed according to European standard

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Excellent Powder Coating Commercial Spray Booths with Riello Burner

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products

High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Inside dimension	6900 в 3900 в 2650mm ( LвWвH )
Outside dimension	7000 в 5450 в 3400mm ( LвWвH )
Main door	Folding door, 4 folds, 3000в2700 mm ( WвH ) , made by bending steel without cover frame, colour : blue.
Escape door	1 unit, 800в2000mm ( WвH ) , colour: white
Basement	Galvanized steel assemble, 300mm high, with adjustable bolts, quadrate steel support, 5 rows of grilles made by flat bar and twisted steel, then galvanized. 4 ramps, external setting, 750в2000mm/pc.
Wall Panels	Thickness: 50mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with 50mm thick rock wool inside, colour: white .
Lighting	Ceiling Lights: 8Units в 4Pcs=32Pcs в 58W, with electronic ballasts, lighting boxes are powered coated. Side Lights: 13Units в 4Pcs=52Pcs в 18W, with electronic ballasts, horizontally set, lighting boxes are powered coated.
Generator setting	Intake air from back upper direction, exhaust air from back upper aluminium alloy steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle.
Intake and Exhaust air system	1в7.5 KW turbo fan, power: 7.5KW, air capacity: 25000m 3 /h.
Intake and Exhaust air system	1в7.5 KW turbo fan, power: 7.5KW, air capacity: 25000m 3 /h.
Heating system	RIELLO RG5S diesel burner, stainless steel heat exchanger, pneumatic damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h.
Filtering system	Pre-filter, ceiling filter, fibreglass filter, activated carbon filter
Roof Plates	Galvanized steel
Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter, temperature limit controller, pressure gauge, pressure alarm system, adjustable electric exhaust damper. All motors are normal start.
