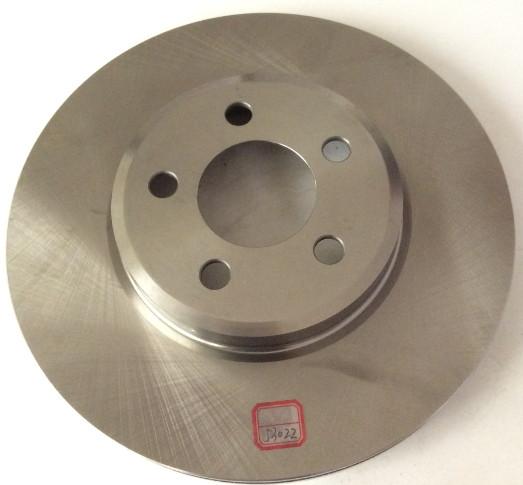

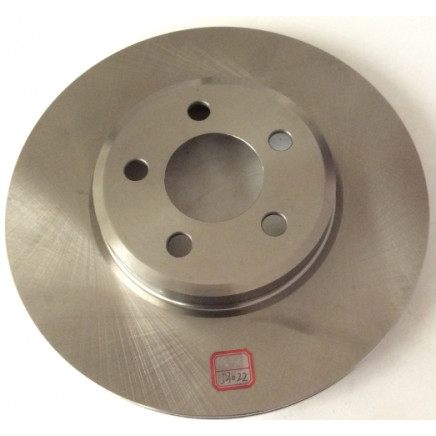

Excellent Braking Systems and Brake Disc (Amico 53022 OE 4779196ad)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$7.9 - $35.5 / Piece

Min. Order (Pieces)	Unit Price
100.0	US $ 7.9/ Piece
200.0	US $ 35.5/ Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Jun 15, 2015 To Jun 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:AMICO 53022 OE 4779196AD

Type:Brake Discs

Material:Iron

Position:Front

Certification:ISO/TS16949, TS16949, ISO9001

Classification:Disc

Drum Brakes Classification:Brake Drum

Main Market:Global

Number of Holes:5

Solid or Ventd:V

Export Markets:Global

Additional Info.

Trademark:luzao

Packing:Neutral Packing or According to The Requirements

Standard:TS ISO

Origin:Shandong Zouping

HS Code:87083099

Production Capacity:100, 000pieces/Month

Product Description

Shandong Zouping Luzao Metal Material Co.,ltd

brake discs, brake rotor ,brake drum

Height	54.6mm
Diameter	320 mm
Centering Diameter	72.5 mm
Pitch Circle Diameter	114.3 mm
Brake Disc Thickness	28mm
Minimum Thickness	26.5 mm
Number Of Holes	5
Solid Or Vented	V

Quality Standard---GG20

1. Material Requirements

1.1 Must meet Grade GG20 for gray iron castings.

1.2 Chemical Composition (Percent)

       * Total Carbon:     3.0 - 3.50%
       * Silicon:             1.90 - 2.30%
       * Manganese:       0.60 - 0.90%
       * Phosphorus:      0.12% Max.
       * Sulfur:               0.10% Max.

1.3 Microstructure:

      1.3.1 Graphite Structure-
              Predominantly type A, size 3-5.

      1.3.2 Matrix
              Pearlitic with max. 15 ferrite
              Free from chill

1.4 Physical Properties:

      1.4.1 Tensile Strength-     Min. 200 N/mm

      1.4.2 Brinell Hardness-     190 - 230
           ( 10 mm ball, 3,000 kg load)

           Our brake disc is well exported to North America,South America,the Middle East,South Korea,Singapore,Malaysia,United Kingdom,and Denmasrk,and enjoy a very good reputation worldwide.

Now we have more than 2,500 items in total which include almost all typical brakes worldwide,especially some newbrake parts for GM,VW,FIAT,BMW,Peugeot,Opel,Renault,Mercedes,Benz,Hyundai,Daewoo,Kia,and all Janpanese cars.

If you are interested in our product, please contact us.,tel:0086-543-4347957,
