European Style CE Certificated Articulated Mini Loader

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

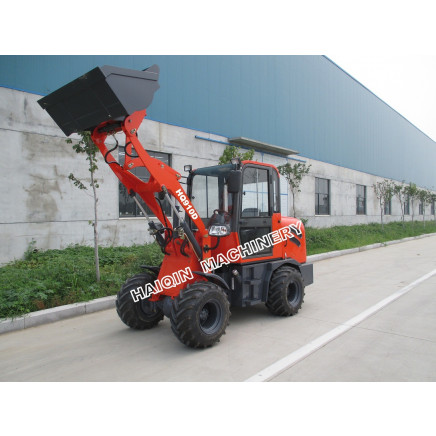

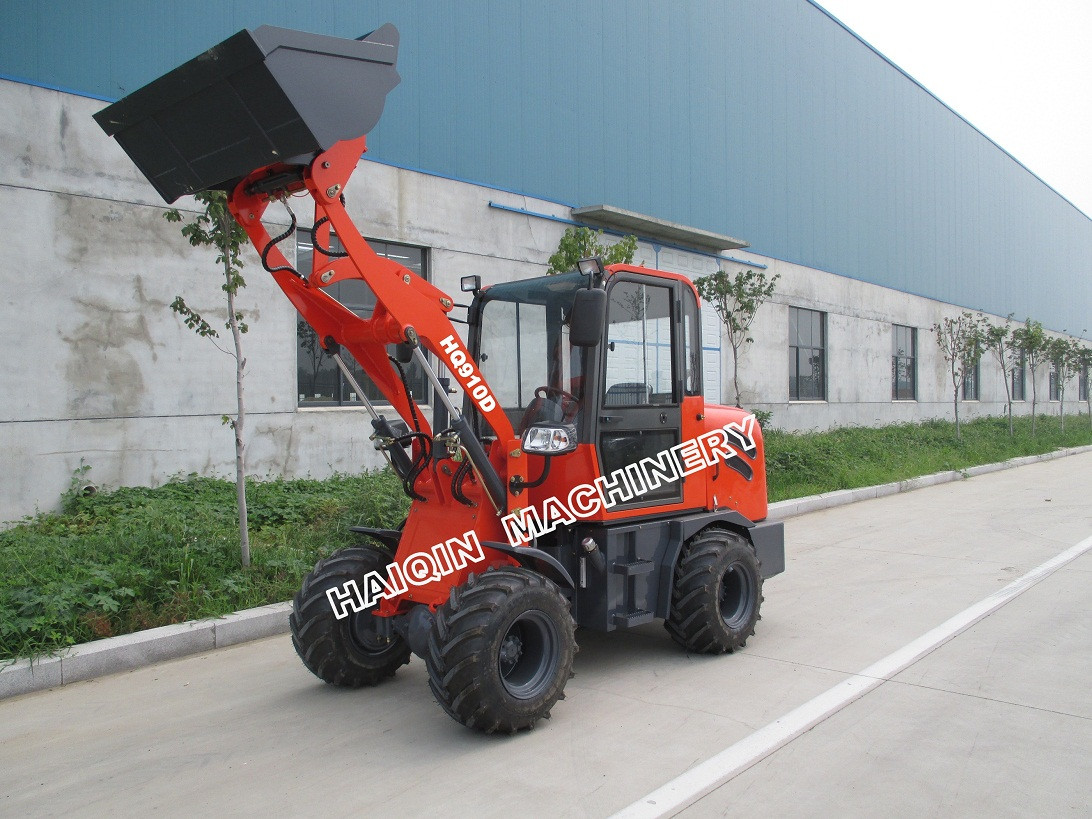

European Style CE Certificated Articulated Mini Loader

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 6000.0-8000.0/ Piece

Price:$6000.0 - $8000.0 / Piece

Trade Terms: FOB, CFR, CIF, CIP, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Mar 08, 2015 To Oct 04, 2016

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:HQ910D

Type:Wheel Excavator

Usage:Earth Moving

Bucket:Shovel

Transmission:Hydraulic Transmission

Drive Type:Internal Combustion Drive

Bucket Capacity:0.5~1.0m³

Size:Small-Scale

Certification:CE, ISO9001: 2000, SGS,Rops&Fops

Condition:New

Steering Angle:38 Degree

Hinge Joint Tyre:European Style,Have Big Swing Angle

Operation System:Hydrostatic Operation

Export Markets:Global

Additional Info.

Trademark:Haiqin

Packing:3 Units in One 40 Container

Standard:CE, ISO, SGS, ROPS&FOPS

Origin:China

HS Code:84295100

Production Capacity:8000 Units / Year

Product Description

1, HQ910D Mini loader Features:

(1,Whole loader with CE Approved,E4 lamp,Joystick operation, quick hitch .

(2, The new appearance and design .

(3, The cabin have big space inside .

(4, Hydrostatic operation.

(5, The central hinged swinging with European style,have big swing angle .

(6, The steering angle is large ( 38 degree), Turning radius is small, more suitable for narrow areas work .

2, Details of HQ910D mini loader :

ENGINE SPECIFICATIONS
Engine type	Changchai N385Q( Perkins engine for option)
Cylinders	3
Max. output kW	20KW
Bucket capacity	0.5-0.6 m3
Cooling system	Water
ELECTRIC SYSTEM
Operating voltage V	24
Battery A	60
Alternator W	500
WEIGHTS
Operating weight (Standard) kg	2550
Max. lift force daN	2473
Rated load capacity (kg)	1000
Max load capacity (kg)	1200
MACHINE
Ground speed km/h
High speed	0 - 15
Low speed	0 - 7
Fuel tank capacity l	40
Hydraulic oil l	40
HYDRAULIC SYSTEM
Transmission hydraulics
Oil flow l/min	55
Operating pressure bar	160
External services
Oil flow l/min	70.4
Operating pressure bar	160
Standard tyres	7.50-16 ( 31*15.5-15 tire for option)
