Specifications
Prefabricated EPS cement sandwich panel
1. Lightweight
2. Sound Insulation
3. Water / fire proof
4. Fast / east installing

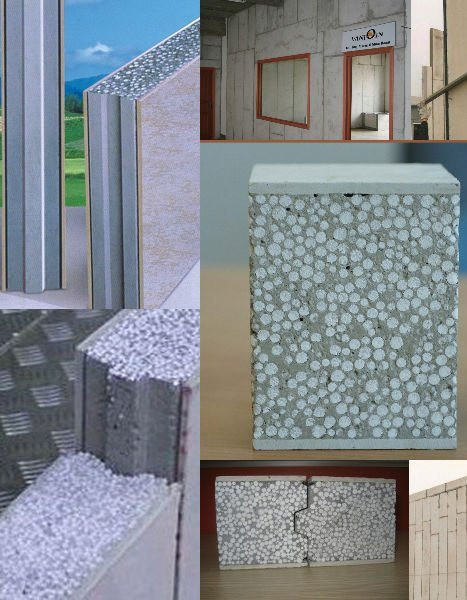

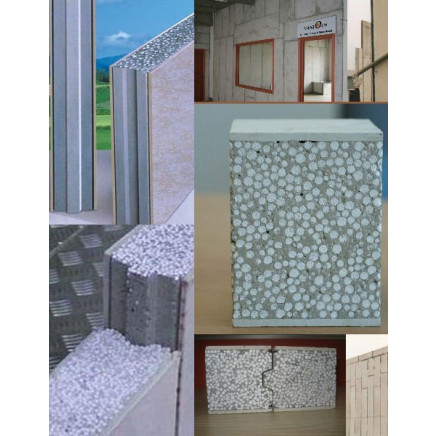

2015* lightwight prefabricated EPS cement sandwich panel
Light energy saving wall material-Sandwich panel is a kind of light weight energy saving wall material compound cement and expended polystyrene bead, 100% free of asbestos
Application: Interior and exterior partition on steel or concrete structure building, for new construction, additions or renovations.
Performance Index:
Weight
- 50mm thick
- 75mm thick
- 100mm thick
- 120mm thick
- 150mm thick
Nominal ( at ambient )
- 44 kg/m˛
- 64 kg/m˛
- 77 kg/m˛
- 99 kg/m˛
- 110 kg/m˛
Thermal conductivity
( BS 874; Part 2: 1986)
0.221 W/0K
Flexural Strength ( Longitudinal )
4.27 MPa
Flexural Strength ( Transverse )
4118 N
Moisture Movement
0.06%
Moisture Content
9%
Resistance to continuous heating
80° C
Surface alkalinity
pH 7-10
Non-combustibility ( Face Boards)
BS EN ISO 1182: 2002
BS476: Part 4
GB8624-1994, Grade A
Head of combustion ( Face Boards)
BS EN ISO 1716: 2002
Fire rated partition
Euro Class A1
2 hour FRP
BS EN 1364-1
BS 476: Part 22
GB/ T9978
Water tightness to ASTM C1185
No droplets observed behind the panel,
Test 24 hours at 250mm water head
Partition stiffness - heavy duty grade (BS5234: Part2: 1992, Annex A)
Pass
Resistance to structural damage by multiple impacts from a large soft body
- heavy duty grade (BS5234: Part2: 1992, Annex E)
No collapse or dislocation
Surface damage by hard body impact- heavy duty grade
(BS5234: Part2: 1992, Annex B)
Pass
Effects of door slamming- heavy duty grade
(BS5234: Part2: 1992, Annex B)
Pass
Resistance to crowd pressure- heavy duty grade
(BS5234: Part2: 1992, Annex G)
No collapse or damage
Heavy weight anchorage (high level wall cupboard) eccentric downward
(BS5234: Part2: 1992, Annex K)
No damage or detachment of anchor
Anchorage Load
45kg
Acoustic Performance
- 50mm thick
- 75mm thick
- 100mm thick
- 120mm thick
- 150mm thick
37db
40db
42db
44db
46db
Advantages
Rapid installation
Easily transportable. On and off site - lightweight concrete
Strong and durable
Termite, Pest and Rot resistant
Excellent thermal/sound ratings
Superior quality and finishes. Takes all decorative treatments
Environmentally friendly
Easily worked. No special tools required
Excellent fire resistant qualities. Fire rated and load bearing
Cyclone and Earthquake resistant. Proven technology in emergency zones, preventative construction
Installation training available. For local unskilled labour and trade
Dora
Xiamen Shengqian Group
Xiamen Shengqian Imp. &Exp. Co. Ltd (Branch)
11th Floor 2# Building No. 2362 Fangzhong Road, Xiamen, China
Tel: +86-0592-5705809-825 Fax: +86-0592-5705739
MP: +86-13959214405
