Environmental Water Curtain Paint Equipment

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 3500/ Piece

Price:US $3500.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jun 13, 2015 To Aug 12, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:UNZJ

Type:Powder Coating Booth

Certification:CE

Substrate:Steel

Brand:Unzj

Coating:Painting

Airflow Direction:Fully Undershot-type

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Front Door(Mm):2800(W)*2600(H), 3 Folded Doors

Service Door:650*1800mm

Inlet Fan:2X3kw Centrifugal Fan

Outlet Fan:1X4kw Centrifugal Fan

Company:Manufacturer

Export Markets:Global

Additional Info.

Trademark:UNZJ

Packing:Export Container /Pallet /Disassembly with Carton

Standard:CE

Origin:Shandong China

HS Code:8424899990

Production Capacity:2000/Year

Product Description

Type: Spray Booths
Size:4000*1200*2000
Voltage: 220V/380V
Certification: CE

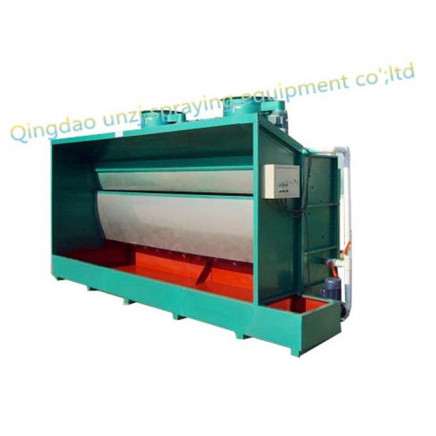

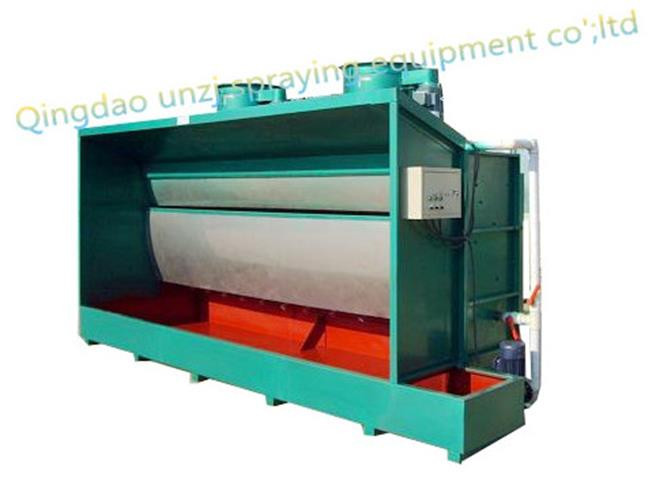

Water Curtain Spray Booth
1, CE approved
2, Spray booth professional manufacture
3, Easy to operate and environmental type
4, Suitable for water paintingPaint and coating room paint and coating room
The inside dimension and outside dimension can be design as your requirement. Baoyue offter the warranty about 1 year, with professional technical and best service in this line.

The detailes:
5, Timely delivery.
Water curtain painting booth, air protect, environmently spray booth:
1. Powerfrugal system
2. Auto pressure system
3. CE, CCS certificate
4. Professional install team abroad
5.1 year warranty

Wind strengh	18000m3/h
Ventilator power	1.5kw
Pump power	2.2kw
Overall Dimensions	505016002450mm
Net weight	1120kg

Paint and coating room paint and coating room paint and coating room
Spray booth conveying and storage:
Paint and coating room paint and coating room paint and coating room
As spray booths are in big size, they're conveyed in bulk while loading and unloading. The parts in frame should be loaded and unloaded by fork vehicles while the small parts are conveyed by manpower. The finished parts of spray booth are usually stored in the finished products warehouse, and marked on the outside packages for checking before delivery. After being sent to the destination, all the parts should not be put in the open air but in store house to prevent from rusting and oxidized by the moisture.
Paint and coating room paint and coating room paint and coating room
Operating principle:
Air-supplying and exhausting devices start at the same time (Warm-up in winter), fresh air enters to the heating air-supplying unit through inlet filter from air inlet, and the processed airflow will be passed by the air-supplying unit to the static pressure chamber on the top of the booth. The airflow will be treated by the filter cotton on the bottom of the chamber and then entered in the painting booth in laminar flow way, which makes the remaining paint mists down along the airflow, avoiding them emission all round.
