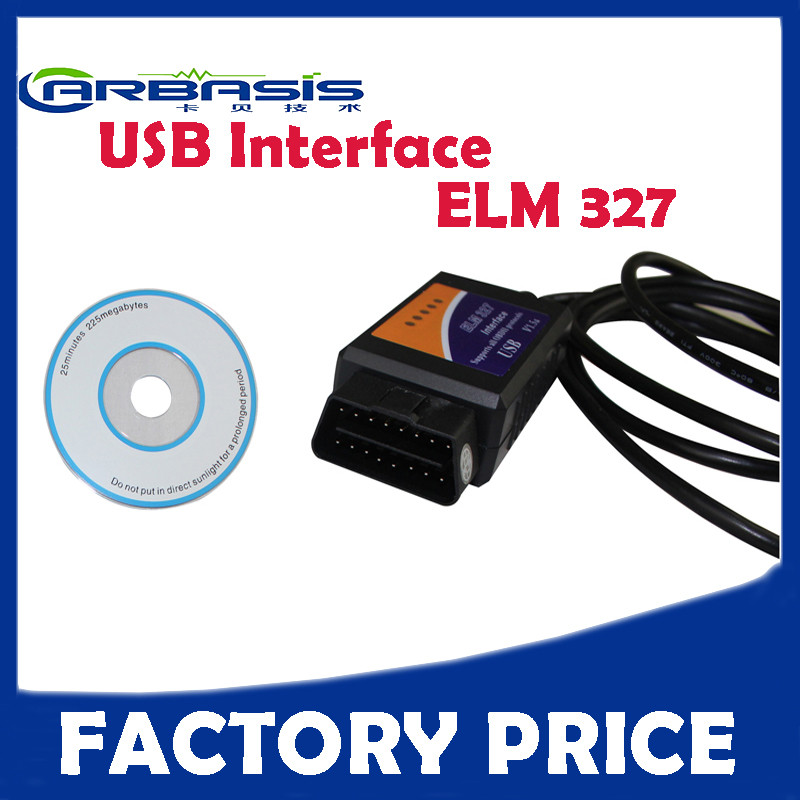

ELM 327 USB interface Scan tool Software ELM 327
Product Description:
ELM327 Scanner Software ELM 327 USB plastic Description: 1. ELM327 is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The processor is an ELM327. The output protocol (connection to laptop) is USB. It is easy to use and very useful to diagnose cars. 2. Processor:
ELM327 Scanner Software ELM 327 USB plastic
1. ELM327 is the latest PC-based scan tool. It supports all OBD-II protocols and is dispatched with a number of compatible programs. The processor is an ELM327. The output protocol (connection to laptop) is USB. It is easy to use and very useful to diagnose cars.
2. Processor: ELM327.
3. OBD-II Software for ELM327 is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
4. The program is very user-friendly, and easy to learn. It is also very easy to install:
Simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.
5. The software supports two platforms - DOS and Windows.
Functions:
1. Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2. Clear trouble coder and turn off the MIL ("Check Engine" light)
3. Display current sensor data, including:
Engine RPM; Calculated Load Value; Coolant Temperature; Fuel System Status; Vehicle Speed; Short Term Fuel Trim; Long Term Fuel Trim; Intake Manifold Pressure; Timing Advance; Intake Air Temperature; Air Flow Rate; Absolute Throttle Position; Oxygen sensor voltages/associated short term fuel trims; Fuel System status; Fuel Pressure; Many others...
Upcoming Function:
Data graphing and logging; Freeze Frame data; Continuous and Non-Continuous Oxygen Sensor test results
Specifications:
1. OBD-II Protocols:
ISO15765-4 (CAN); ISO14230-4 (KWP2000); ISO9141-2; J1850 VPW; J1850 PWM
2. Output protocol: RS232
Baud rate: 9600 or 38400
Indicator LEDs: OBD Tx/Rx, RS232 Tx/Rx, Power
Operating voltage: 12V, internal protection from short circuits/overvoltages
Nominal idle current: 45 mA
3. Free software:
1)GM Mode 22 Scan Tool by Terry
2)OBD Gauge for PalmOS and Pocket PC by Dana Peters
3)OBD Logger by Jonathan Senkerik
4)OBD-II ScanMaster by Wladimir Gurskij (ScanMaster 3.52 - local copy)
5)OBD2 Scantool by Ivan Andrewjeski
6)OBDII for ELM322 by David Huffman
7)pyOBD by Donour Sizemore for MacOSX and Linux
8)RDDTC by Pete Calinski
9)Real Scan by Brent Harris
10)ScanTest for Pocket PC by Ivan Ganev aka a-ser
11)wOBD by WDT
Package including:
1 * ELM327 unit ( USB version)
1 * CD drive
