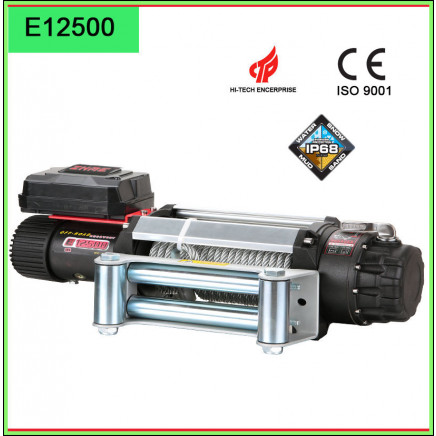

Electric Winch E12500

More Views

More than 10 available

Availability: In stock

Price:$230.0 - $250.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 250/ Piece
15.0	US $ 230/ Piece

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Money Gram, Western Union

Price Valid Time:From Mar 14, 2015 To Jun 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:E12500

Type:Electric Winch

Power Type:Series Motor DC

Working Voltage of Electric Winch:Low Voltage

Brand:Zhme

Certification:GS, CE

Rated Line Pull:12500lbs Electric Winch

Export Markets:Global

Trademark:ZHME POWER WINCH

Packing:1PC Per Carton

Standard:CE, RoHs

Origin:China

HS Code:84253190

Production Capacity:6000PCS/Month

12500lbs Electric winch Specifications
Water proof Resistant IP68
Patented Oil Seal
Patented and Efficient Brake Action
High Performance

Specifications
Rated line pull:	12500 Lbs (5670kgs) single line.
Motor:	Series wound 6.0 hp /4.4kw,12V DC
Gear Train:	3 stage planetary
Gear ratio:	262:1
Clutch:	Sliding Ring gear
Braking action:	Automatic in the drum
Fairlead:	4-way Roller fairlead
Wire rope:	5/16"×92'(7.8mm ×30m)
Drum size:	2.5"×9.0"(63mm×224mm)
Dimensions:	23"×6.7"×8.4"( 584mm×170mm×214mm)
Mounting bolt pattern:	10"×4.5"(254mm×114.3mm)
Battery:	Recommended 650 CCA minimum for winching 32 square mm,72"(1.83m)
N.W:	86lbs (39kgs)
Packing:	620mm X 200mm X 390mm per carton 400 cartons per 20' container

Line speed and motor current (first layer)
Line pull	Lbs	0	2000	8000	10000	12500
Line pull	Kgs	0	907	3629	4536	5670
Line speed	FPM	25.6	12.5	7.3	6.4	6
Line speed	MPM	7.8	3.8	2.24	1.96	1.8
Motor current	Amps	65	100	200	230	290

The best choice for your vehicles!
