Description

Details

Basic Info.

Model NO.:FTW9406GSN

Type:Axle

Towing Pin Material:Carbon Steel

Impeller Type:Front Semi-open Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Less Metal

Towing Pin Type:Mushroom Type

Towing Pin Diameter:50mm

Differential Gear Type:Gear Type

Independent Suspension Type:Cross Arm Type

Efficient Bulk Powder Tanker:Oil Tanker

Export Markets:Global

Additional Info.

Trademark:JUPITER

Packing:Nude, Coating with Wax

Standard:CCC

Origin:China

Production Capacity:60 Pieces/Month

Product Description

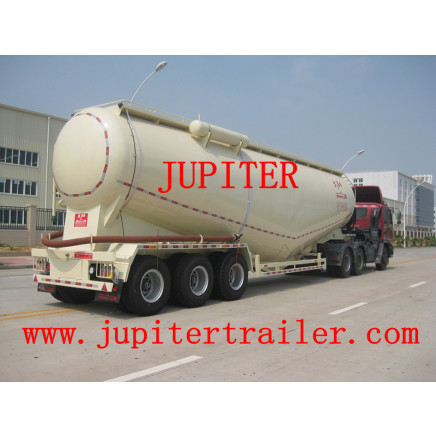

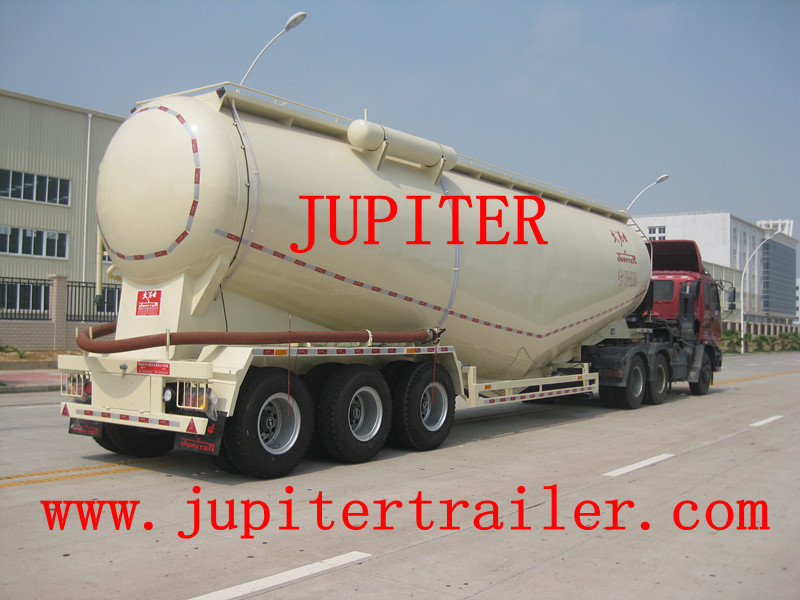

This bulk cement tanker semi trailer, also called cement bulker, is a kind of semi trailer mainly used to carry powder materials, such as cement, coal ashes, limestone powder, talcum powder, and more. And the transportation medium can be dry powder, granules, and wet powder.

This semi trailer can be used to improve transportation efficiency as well as to reduce transportation costs, thus reducing your product costs and achieving mechanization in loading, transporting, unloading, and storing.

The main components are chassis (including the towing chassis), tank assembly, power takeoff driving system, air source system, and air path and its control system.

This bulk cement tanker trailer enjoys high average unloading speed, and low residual ratio. The unloading speed is more than 1.2T/min, and its residual ratio is less than 0.3%.

The cement bulker should adopt RORO, and bulk goods.

We can provide tri-axial and bi-axial bulk cement tanker semi trailers for you to choose.

Tank top accessories

2 manholes DN500 with hinged and swivel quick release lids Walkway with handrail and ladder

Discharge equipment

2 outlet cones of 850mm diameter

An aeration pad is mounted in each discharge hopper

All airlines have no-return valves

Discharge possibilities

Central discharge opening on the 2 hoppers diameter 200mm, closed with a blank cover

Material outlets of 100mm diameter with manual valves, lead out together to discharge pipe

Painting

All steel parts are steel blasted before painting

Tanker and chassis is painted according to customer's wish

Accessories

Side protection

2 PVC hose carriers

Mudguards

Tool box
