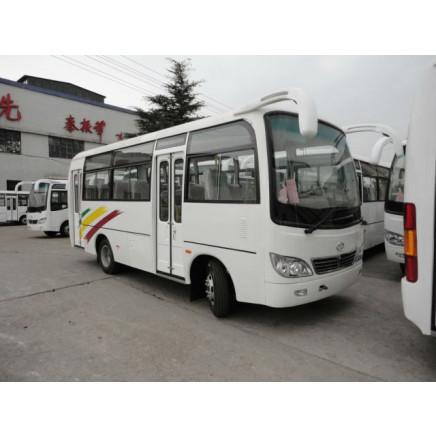

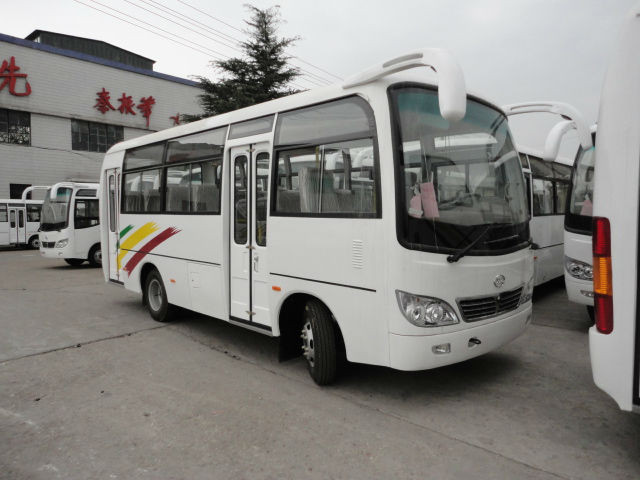

Economical 25 Seats Mini City Bus

More Views

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CIF

Payment Terms:L/C, T/T

Packing:Nude Packing

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Login or Signup to View Links.

Description

Model NO.:JNQ6660

Usage:Bus

Structure:Low Floor Bus

Emission Standard:Euro2

Transmission Type:Manual

Seats:21~40

Max Speed:91-110km/h

Fuel:Diesel

Steering Position:LHD

Size:Minibus

Displacement:3.865L

Dimensions:6600*2240*2750/2950mm

Export Markets:South America

Packing:Nude Packing

Origin:Jiangsu, China

Production Capacity:500sets/Month

Economical 25 Seats Mini City Bus

1.Conficuración básica y parámetro pricipal tecnología:

Model	JNQ6660		Standard allocation
Outer dimension (L×W×H)(mm)	6660×2240×2750		CY4102BZLQ diesel engine manual folding passenger doorRadio and tape playerManual windowsManual rear-view mirror7.00-16 tireiron floorwhite(common paint).
Wheel Track (Front /Rear)(mm)/	1830/1600
Wheel base (mm)	3308
Kerb mass(kg)	4000
Gross mass(kg)	6500
Seats(persons)	22~25		Options
Fuel tank capacity(L)	90		1.Metallic paint 2.VCD & LCD player 3.7.00R16 radial-ply tire 4.A/C 5.Peach wood decorative dashboard
Min. ground clearance (mm)	250
Min. turning diameter (m)	13
Max. speed(km/h)	100
Tyre model	7.00-16
Transmission	5speed manual
Brake	Double pipeline in series hydraulic control
Drive type	4×2
Engine Options and technology parameter
Model		CY4102BZLQ
Type		Vertical, in line, water-cooled four strokes, turbo-charger, inter-cooling
Max powerkw		88/2800
Max torque(Nm)		392/1400-1800
Fuel consumption(L/100km)		14
Fuel		Diesel
Displacement(L)		3.856
Compression ratio		17:1
