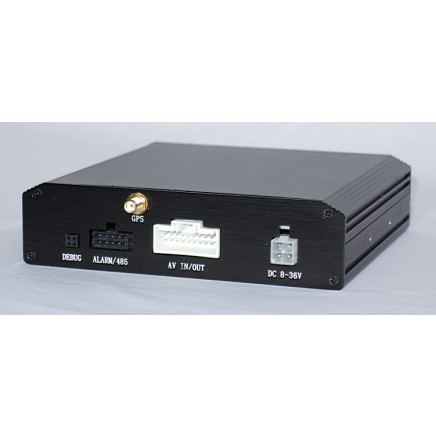

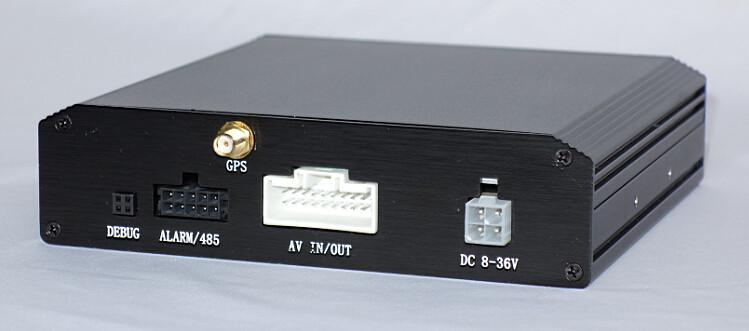

Economic Local Record Mobile DVR

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
2.0	US $ 72/ Piece

Price:US $72.0 / Piece

Trade Terms: FOB, FCA, EXW

Payment Terms: T/T, D/P, Paypal, Western Union

Price Valid Time:From Aug 23, 2014 To Sep 30, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VC-MDRS6000S

Interface:BNC\VGA\HDIM

Compression Format:H.264

Storage:SD Card, Max 64G

Channel:4 CH

Export Markets:Global

Additional Info.

Trademark:VCOMSKY

Packing:Standard Carton

Standard:ISO9001, CE, ROSH, FCC

Origin:Sz, China

HS Code:8525609000

Production Capacity:100000PCS

Product Description

VC-MDR S6000S is a high level SD Card mobile digital video recorder specially designed for vehicle surveillance purpose. It adopts high speed processor and embedded operating system, and applies various advanced technologies in IT field, such as A/V codec, high capacity SD card storage, network streaming media, A/V noise reduction, wide range voltage design.

Key Features:

l Industrial level design;
l Advanced audio/video compression technology;
l 4-channel video input,2 ch audio input;
l ASF standard file format;
l Built in G-sensor module for optional;
l Local PTZ control;
l Data redundant storage technology;
l Patent UPS power-off protection design;
l Fast startup;
l Optional function: Bi-directional voice communication, telephone dialing, disk pre-heating;
l Central management software provided for optional;
l Support intercom function;
l Support 6ch I/O alarm, over speed alarm, g-sensor alarm, video lose alarm, motion detection alarm;
l Support broadcast voice;
l Support LED control;
l Support max 64G SD card.

Suitable for:

Bus, School bus, Logistics vehicle, Taxi, Police car, Special purpose vehicle, Train/metro, Ship/boat

Specifications
Item		Description
Operation system		Linux
GUI		Setup system parameters with remote controller
Security management		Support user password, supervisor password management; support encryption transmission
Video	Video input/output	4-channel video input, 1-channel video output; Airplug. 1.0Vp-p, 75?
	Dual stream	Support
	OSD	Time & date, vehicle ID, GPS etc
	Compression	H.264. VBR/CBR
	Preview function	Single channel, 4-picture splicing preview, support event triggered full screen and splicing switching display function
	Video frame rate	PAL: up to 25 frame/sec for single channel NTSC: up to 30 frame/sec for single channel
	Video resolution	support up to 1 channels D1 + 3channels CIF Record: PAL:720x576(CIF) NTSC:720x480(CIF) Playback: PAL:352x288(CIF) NTSC:352x240(CIF)
	Video quality	Level 1 to 4 video quality adaptive, level 1 best, level 4 lowest
	Video Bit Rate	64Kbps~1.5Mbps, 6 levels of bit rate optional
Audio	Audio input/output	4-channel input; 1-channel output
	Compression	ADPCM
	Bite Rate	16KB/S
Recording	Storage media	Support SD card with 64G maximum capacity
	File format/system	ASF/ FAT32
	Recording mode	Support manual, timed, alarm & motion detection recording
	Recording search	Search recording video files by time, type, storage device, etc.
	Recording playback	Support local playback, support up to 4-channel synchronous playback, and analyze the vehicle message in the file at the same time
	Recording playback	Support fast forward, fast backward, play, pause controls, support 2, 4, 8, 16 times speed fast forward or fast backward, support the control of playback by time
Alarm	Alarm input	2 channels input
	Buzzer	1 buzzer alarm
	USB	1pc USB1.1 interface
	Functional alarm	Support local signal alarm,Abnormal alarm, motion detection alarm
System upgrade		Support auto /manual upgrade
Software upgrade		Support USB/SD upgrade
Power supply	Power supply management	ACC startup/shutdown; Delay shutdown
	Input voltage	DC:+9V ~ +36V
	Output voltage	+12V@2A;+5V@2A
Working environment	Temperature	Normal: -20 ~ +60 Hard disk pre-heating: -25 ~ +60
Working environment	Humidity	10% to 95%
Dimension		142(W) x38(H) x123(D) mm.
Weight		Net weight:
