Dump Semi Trailer Tipper Semi Trailer (QDT9400ZC)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, CFR, CIF, DAT, FAS, DDP, DAP, CPT, FCA, EXW

Payment Terms:L/C, T/T, D/P

Trademark:Qingte

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9400ZC

Fuel:Diesel

Certification:ISO9000, TS16949

Emission Standard:Euro 4

Condition:New

Dimensions(Mm):12918 X 2500 X 2915

Total Mass(Kg):40000

Kerb Weight(Kg):11060

Wheelbase(Mm):7001+1360+1360

Rated Contained Mass(Kg):28940

Hopper Inner Dimensions(Mm):12774 X 2288 X 1200

Number of Axles:3

Axle Loading Capacity:-/24000

Export Markets:Global

Additional Info.

Trademark:Qingte

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:1000/Year

Product Description

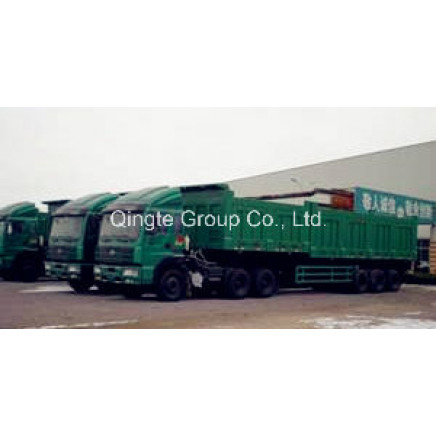

Dump Semi Trailer, Tipper Semi Trailer(QDT9400ZC)
QDT9400ZC

Adopting HYVA Dydraulic System or America CUSTOM.

Company Presentation

Qingdao Zhongqi Special Automobiles Co., Ltd., one of the most important entities of Qingte Group Co., Ltd., is a joint corporate enterprise set up by Qingte Group Co., Ltd. And China Auto Industry Import & Export Corporation. Established in 1992 with registered capital of RMB 100 million yuan and 130 thousand sq. M. Of floor space, Qingdao Zhongqi Special Automobiles Co., Ltd. Now have reached an annual Production Capacity of 10 thousand sets of various kinds of Special Vehicles.

Basing on technique breakthrough of Chassis and Special Device, we have obtained great development on product series of Hydraulic Aerial Platform Vehicle, Special Operation Vehicle, Municipal Duty Vehicle, Construction Operation Vehicle, Heavy-duty Road Transportation Truck, City Cleaning Truck, and other high grade products including Military Vehicle, Airport Tractor and Oil Transportation Truck, gradually forming our Qingte feature which shows an advanced level both in domestic and internationally. It is worth mentioning that the Hydraulic Aerial Platform Hot-line Work Vehicle, cooperative developed products with Altec, USA, have always been world first class and the best in domestic.

Our Hydraulic Aerial Platform Hot-line Work Vehicle series and Multi-function Poling Machine, adopting optimal configuration from Altec, could satisfy wide ranges of demand from power sector, communication sector and city construction, with its working height from 11m to 25m and isolation voltage from 46KV to 220KV. Qingte-Altec Products have passed the performance test processed by the State Power Corporation assigning institution, Wuhan High Pressure Research Institution(WHHPRI), with all of its technical index reaching the original design standard. After its test, the series was highly recommended by the institution.
ISO9001: 2000, ISO14000, OHSMS18000, AAAA, "CCC", . 2012., , , , .
Qingdao Zhongqi Special Automobiles Co., Ltd. Has taken the leading in obtaining ISO9001: 2000 Certification, ISO14000 Environment Management System Certification, OHSMS18000, CCC and the National AAAA Level Standardization Good Behavior Enterprise Confirmation, establishing a thorough quality management system. Qingte Group Co., Ltd. Was identified 2012 National Technology Innovation Demonstration Enterprise. With a national level enterprise technical center, containing its high technical level and development capabilities, Qingte Group now have an independent capacity of developing various kinds of special vehicles and parts

Name vehicles :	Dump Semi Trailer	Types of vehicles :	Semi Trailer
Chinese brands :	Qingte	English brand :
Vehicle models :	QDT9400ZCX	SDRC car instalment Notice :	F0


Engine capacity :		Combustion types :
Dimensions ( × × )(mm) :	12918×2500×2915	Huoxianglanban in size ( × × )(mm) :	12774×2288×1200
The total mass (Kg) :	40000	Rated contained mass (Kg) :	28940
Zhengbeizhiliang (Kg) :	11060	In the quality of the utilization factor :
Trailer total mass (Kg) :		Semi-trailer carrying saddles the maximum allowable weight (Kg) :	16000
Chajingu / departure angle / (°) :	-/17	Suspended before / after hanging / (mm) :	-/1936
Wheelbase (mm) :	7001+1360+1360	Shaft number :	3
Axle-load :	-/24000()	Maximum speed (km/h) :
Oil Consumption :		Spring few films :	-/13/13/13,-/10/10/10
Several tire :	12	Tire specifications :	12.00-20,12.00R20
Before Lunju :		After Lunju :	1870/1870/1870
Other :	,.	Exemption :
