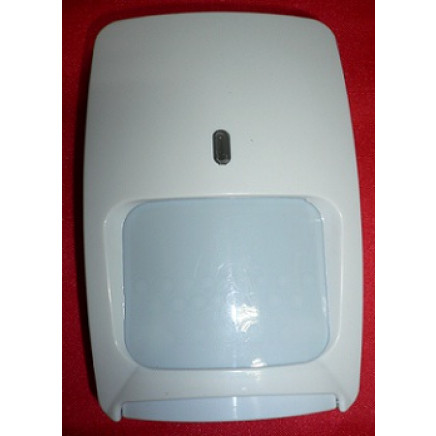

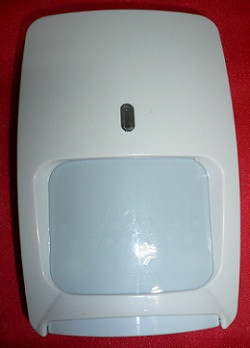

Dual PIR + Mw + Intelligence Motion Detector for Alarm System (DT7225/DT7450/DT7450C)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:FOB, CIF, EXW

Payment Terms:L/C, T/T, Paypal, Money Gram, Western Union

Trademark:T-GUARD

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DT7225/DT7450/DT7450C

Certification:CE

Condition:New

Customized:Customized

Alarm Form:Sound and Light Alarm

Type:Sensor

Installation Mode:Contact Type

Application:Home, Industry, Special Equipment

Usage:PIR Sensor

Shipment:DHL, UPS, FedEx..

Service:OEM&ODM

Delivery:Fast

Color:White

Export Markets:Global

Additional Info.

Trademark:T-GUARD

Packing:CTN

Standard:CE

Origin:China

HS Code:8531100000

Production Capacity:50000PCS/Year

Product Description

Reliable Detection with 100 lb. Animal Immunity
By combining Uniform Sensitivity Optics with the advantages offered by K-Band technology, the DT7235T sensor gives installers the best of both worlds _ quality detection and the ability to ignore pets or other animals up to 100 lbs.

Fast and Simple Installation without Adjustments
No adjustments are necessary. Installers simply mount the unit at the recommended height, conduct a brief walk-test and the sensor is ready. A highly visible, single colored LED helps the installer easily identify range from any distance or angle within the pattern.

Superb Detection through K-Band Technology
K-Band microwave technology delivers sharp detection without holes or weak spots. The custom-made source offers pattern shaping to fill the protected area with a broad, balloon-shaped pattern which matches the PIR pattern. It also offers pattern containment to reduce the penetration of microwave energy through walls.

Patented False Alarm Prevention Features
The DT7235T offers more than the standard features that protect against false alarms due to RF signals, electrostatic discharge, and electrical overstress. The patented black bug guard improves white light immunity and the patented adaptive microwave threshold circuit automatically adjusts for room disturbances.

Sturdy, Attractive Housing
The sleek, sturdy housing fits into a variety of building styles and blends with any room decor. ABS plastic is used for shock and impact protection. The housing offers a convenient wiring channel, knockouts for mounting and wiring, and easy access to wiring terminals.

Uniform Sensitivity Optics
The custom-designed Fresnel lens provides the same sensitivity for human targets at the edge of the pattern as exists directly in front of the sensor, giving the DT7235T consistent coverage throughout the protected area.

Microwave Adaptive Threshold
Using a patented microwave adaption circuit, the DT7235T automatically adjusts its thresholds to account for room disturbances such as ceiling fans and other repetitive moving objects which are not an intrusion event. The result excellent false alarm immunity even in "active" rooms.

White Light Immunity
A patented black bug guard reduces false alarms by providing 6, 500 lux of white light immunity. This helps reduce false alarm problems caused by lights, flashlights or reflective objects.

Microwave Supervision
Independent circuitry supervises the microwave against failure. Effective in Hot or Cold Environments
The DT7235T operates effectively in harsh environments (14° To 131° F / -10° To 55° C). Temperature compensation adjusts processing for improved detection and false alarm immunity.
Range
35' x 40' (11 m x 12 m)
Alarm Relay
