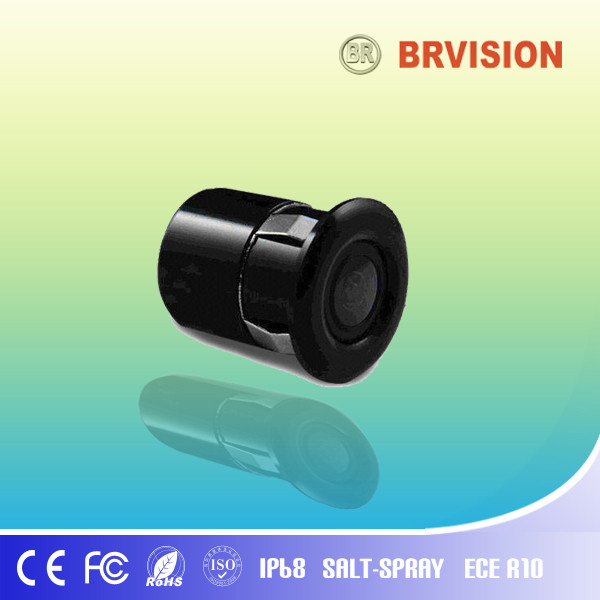

Drilled Hole Car Rearview Camera for Vehicle

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:T/T, Paypal, Western Union

Trademark:BRVISION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:BR-MNC02

Shell Material:Alloy

Probe Number:4

Display Type:Reverse Image

Interface:RCA

Function:Night Vision

Definition:420TVL

Chip:CCD

Waterproof Grade:IP68

Alarming Distance:2.5-0.35m

Probe Diameter:18.8mm

Place of Origin:Guangdong, China

Brand Name:Brvision

Type:Reverse Camera

Sensor:CMOS

Export Markets:North America, South America, Western Europe

Certificate:CE/FCC/RoHS

Focal Length:Fixed Lens

Additional Info.

Trademark:BRVISION

Packing:Custormize Package

Standard:CE/FCC/ROHS

Origin:Shenzhen(Guangdong)

Production Capacity:2000/Week

Product Description

1. Brief Introduction:
- License plate rear view camera,
- 1/4" CMOS color sensor,
- 170° view angle,
- 12V DC power input

2. Certificate:
- CE, FCC, Emark, ISO9001-2008

3. Quality Control:
- Ageing Test
- Waterproof Test
- Salt-spray Test
- Viberation Test
- Cable Swing Test
- High Pressure Immersion Water Test
- High Low Temperature Testing: -20C°-70C°

4. Key Specification:
- Image Device: 1/4" CMOS image sensor
- TV System: NTSC/PAL
- View Angle: 170°
- Waterproof: IP68
- Vibration Rate: 10G
- Resolution: 420TV lines
- 1.8mm waterproof lens
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Minimum Illumination: 0-01Lux
- Video Output: 1-0vp-p, 75Ohm
- Gamma Consumption: 0-45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20° to +70° (RH95%Max.)
- Storage Temperature (Deg.C): -30~+80°(RH95%MAX.)

model	BR-MNC02
image sensor	1/4" CMOS color sensor
min.illumination	Color:0.1Lux @(F1.2,AGC ON) Black/white:0.2 Lux @ (F1.2,AGC ON)
shutter	1/50(1/60)s - 1/10,000 s
lens	HD professional lens 3.6mm(6/8mm lens optional)
Day&Night	24PCS IR LED with IR Cut
video compression	H.264 HighProfile, JPEG snapshot
bite rate	100Kbps~6Mbps
max.image resolution	1280*720
frame rate	50Hz:25fps (1280720) 60Hz:30fps (1280720)
image setting	Saturation, brightness and contrast are adjustable through IE browser or client.
storage	Network storage
intelligent alarm	Motion detection, video loss, cable break, IP address conflicts
protocol	TCP/IP,HTTP,DHCP,DNS,DDNS, PPPOE,SMTP,NTP(HTTPS, RTP/RTSP, SIP ,802.1x,IPv6 )
basic	anti-flicker, dual-stream, heartbeat, password protection
net interface	One RJ45 10M/100M
operating condition	-20 to 70 degree, 90% or less(non-condensing)
Power supply	DC12V±10%
Protection range	IP68
