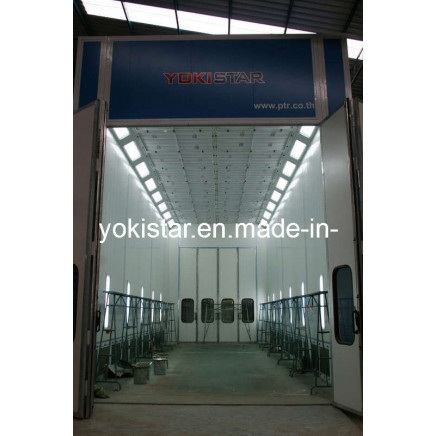

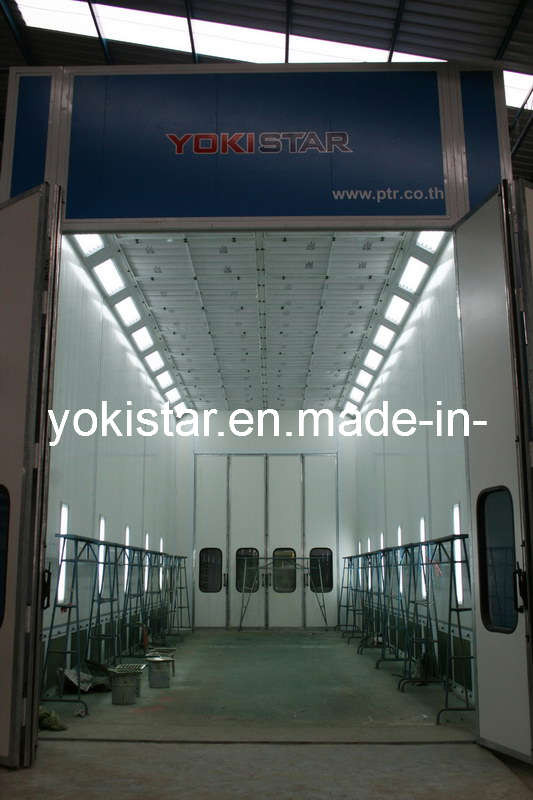

Downdraft Ventilation Large Car Paint Spray Booth

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$35900.0 - $46670.0 / Set

Min. Order (Sets)	Unit Price
1.0	US $ 35900/ Set
28720.0	US $ 46670/ Set

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Cash

Price Valid Time:From Apr 15, 2014 To Jun 11, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:YS-18-50

Certification:CE

Airflow Direction:Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Downdraft Airflow Way

Air Intake:6в5.5kw Double-Intake Centrifugal Fans

Air Exhaust:3в11kw Double-Intake Centrifugal Fans

Heating:3 Units Riello Rg5s Diesel Burners

Voltage:1X220V, 3X380V, Your Special Voltages Are Accepted

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Products:Spray Booth, Prep Station, Infrared Curing Lamps

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:1 set needs a 40?HQ and a 40?GP.

Origin:Guangdong, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

Model:YS-18-50
Inside dimention:18000*5000*5000mm L*W*H
Any Size Requirements Can Be Met.
applied for bus or truck spraying

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Inside dimension	18000в5000в5000 mmLвWвH
Outside dimension	18144в6896в5600 mmLвWвH
Pit	2 rows of pits in the ground for exhaust air, dimension of each pit is 16000в760mm(LвW), with galvanized grilles made by twisted steel and flat bar above.
Main door	Folding door, 4-folds, 4000в4500mm(WвH), galvanized steel frame, with polystyrene(EPS) inside, colour: blue.
Escape door	2 units, 800в2000 mm (WXH), colour: white.
Room body	Profiled bar beams in the roof to strengthen the room body; wall panel thickness:70mm, width:1150mm, tongue and groove structure, 0.476mm colour steel with polystyrene(EPS) insulation inside, colour: white.
Lighting system	Ceiling Lights: 24Unitsв4Pcs=96Pcsв36W, electronic ballasts. Side Lights: 28Unitsв4Pcs=112Pcsв36W, with electronic ballasts, vertically set, up and down interleaving installation.
Generator setting	Intake air from side upper direction, exhaust air from back upper direction, quadrate steel frame, outside is white coated steel,inside is galvanized steel,filled with heat preservation material in the middle.
Intake and exhaust air system(3 units)	6в5.5KW double-intake centrifugal fans for intake air, model YDW4.5S, air capacity is 15500m 3 /h for each fan
Intake and exhaust air system(3 units)	3в11KW double-intake centrifugal fans for exhaust air, with motor outside, belt-drive, model TAE-630H, air capacity is 28000m 3 /h for each fan. Equip manual dampers for exhaust air
Heating system(3 units)	3 units RIELLO RG5S oil burners, heating productivity: 780000 Kcal/h, stainless steel heat exchanger, 3pcs pneumatic dampers actuate from spraying to baking cycle
Filtering system	Pre-filter, high efficiency filter(ceiling filter), exhaust fiberglass fiter, activated carbon filter
Roof Plates	50mm thick EPS heat preservation panels
Control box	Spraying, heat spraying, baking, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter,hours meter, temperature limit controller, pressure gauge. Exhaust star-delta motor start
