Double Nozzle Dispenser LPG Filling Station 5000L, 10000L LPG Skid Station for Propane Isobutane

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 18600.0-51600.0/ Piece

Price:$18600.0 - $51600.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jun 05, 2015 To Sep 08, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:clw

Function:Storage Pressure Vessel

Application:Liquefied Gas

Material:Carbon Steel

Pressure:1.6MPa?p<10.0MPa

Storage Medium:Flammable/Toxic

Pressure Level:Medium Pressure (1.6MPa?p<10.0MPa)

Condition:New

Filling Material:Propane, Isobutane, LPG Gas, Natural Gas

Tank Material:Q345r, Q370r

Capacity:5cbm-100cbm, 120cbm

Acessory:Safty Valves, Indicaors

LPG Tanker Size:13866*3132*3722

End Plate Thickness:16mm, 18mm/18mm, 18mm

Filling Ratio:0.42

Design Pressure:1.77MPa

Production Standard:Asme

Corrosion Allowance:1mm

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:Naked/Waxed Before on Board

Standard:ASME, ADR, CCC, ISO14001

Origin:Hubei

HS Code:8705909990

Production Capacity:1000 Sets/Month

Product Description

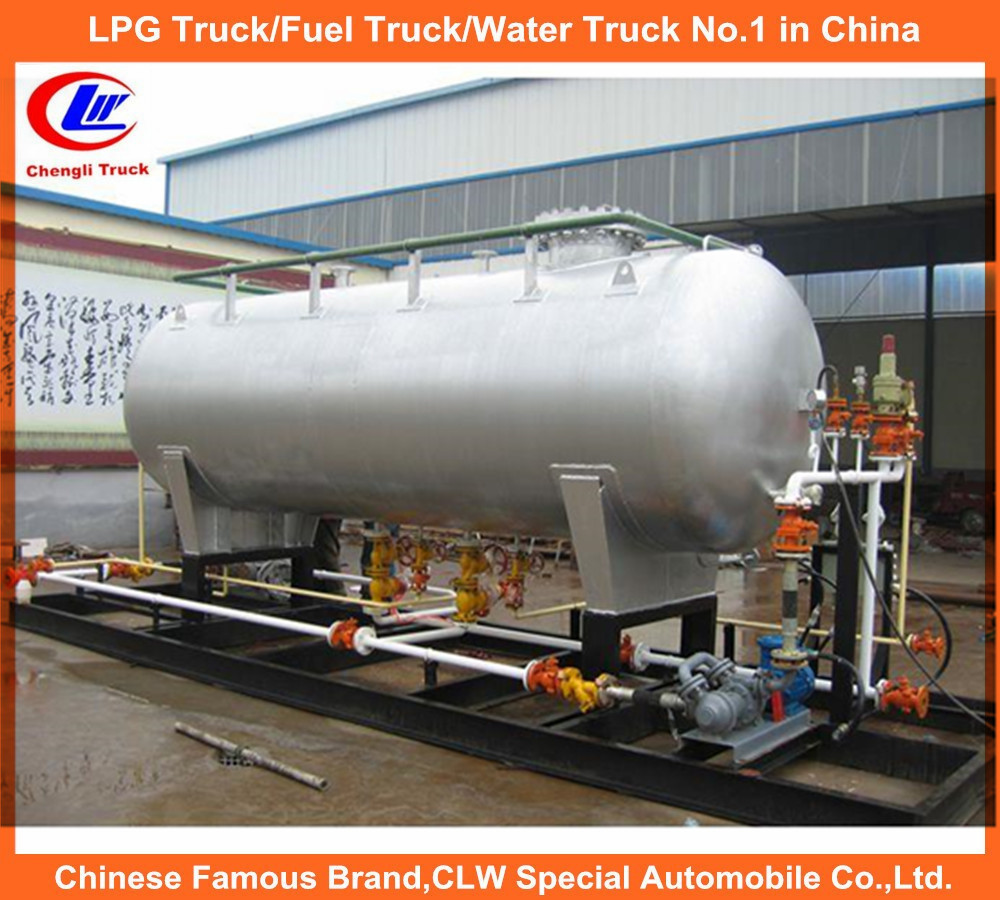

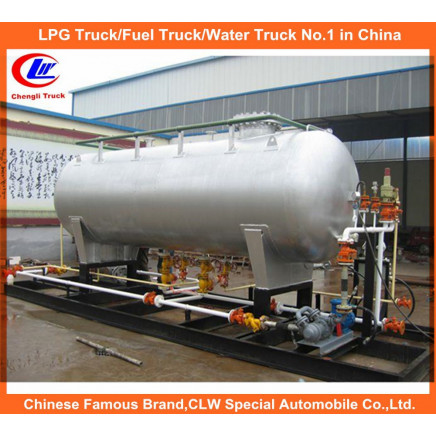

Double Nozzle Dispenser LPG Filling Station 5000L, 10000L LPG Skid Station for Propane Isobutane

Features:
1.Factory direct sale with the high workmanship, reasonable price.
2.Capacity:5m3, 8m3, 10m3, 12m3, 15m3, 20m3, 25m3, 32m3, 50m3, 60m3, 65m3, 80m3, 100m3, 120m3
3.New design:Attractive appearance and safety in usage
4.Certificate ISO9001 and 3C, ASME.We're expecting friends from all over the world to come to visit our factory.

LPG series products:
1.LPG storage tank of all kinds of size(5m3, 8m3, 10m3, 12m3, 15m3, 20m3, 25m3, 32m3, 50m3, 60m3, 65m3, 80m3, 100m3, 120m3)
2.LPG truck/LPG tanker truck/LPG tank truck
3.LPG semi-trailer

CLW SERIES PRODUCT------ YOUR FRIST CHOICE IN China
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.

Our main products:
1.Dump Truck / Tipper Truck/Side Tipper/End Tipper
2.Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3.Truck with crane / Truck mounted crane
4.LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5.Water truck / Water Tank Truck / Water Sprinkler Truck
6.Concrete Mixer Truck
7.Van truck / Insulated truck/ Refrigeration truck
8.Fecal suction truck / Sewage suction truck,
9.Cement Powder Tank truck/ Bulk cement truck
10.High-altitude operation truck,
11.Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc.)
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
Contact information:

Sales Manager:Helen Jiang
Cell:+86 135 5419 5719;+86 135 5419 5719

Item	Unit	Parameter
Product Name		Liquefied Gas Storage Tank
Manufacturer Name		ChengLi Special Automobile Co., Ltd
Model		CLG3100-100
Overall dimensions	Mm	1386631323722
Tank Dimension	Mm	DN31001613866(inner diathicknesslength)
Fact cubic meters	Cbm	100
Total Mass in working order	Kg	60000kg
Working pressure	Mpa	?1.6
Testing hydraulic pressure		2.22
Testing pressure for gas density		1.77
Working temperature		?50
Other	Tank material:16MnQ345R, 16mm thickness;Seal cover:18mm thickness;Pressure relief valve model:A42F-2.5-80, open pressure:1.68-1.76Mpa;LPG density:0.42t/m3 for propane.Mark dangerous caution on tank.

Safety accessory:

	Model Number	Quantity
Tank	50 CBM
Cut-off Valve	DN50	6 Pieces
Cut-off Valve	DN25	2 Pieces
Cut-off Valve	DN80	1 Pieces
Needle Valve	J24W, M20×1.5	1 Pieces
Safety Valve	DN80	1 Pieces
Magnetic reversible level gauge	UZFAL-2.5RF2640-0.50	1 Pieces
Pressure gauge	M20×1.5 1.5Level 0~4MPA	1 Pieces
Thermometer	M33×2 2.5Level	1 Pieces

Skid station accessory:

Accessory	Quantity
Cut-off Valve	9 Pieces
Compressor	1.5MPa
Shock-absorbing Tube	1 Set
Filling pump machine	2 Pieces
Discharge Pipe	5 Miters/set, 2sets
Anti static electric motor	1 Piece
Bottom Base	1 Unit
