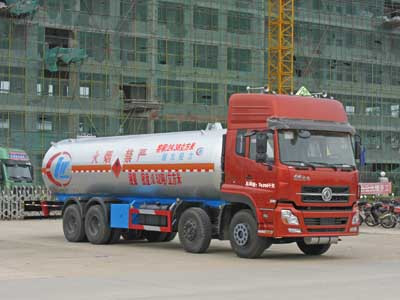

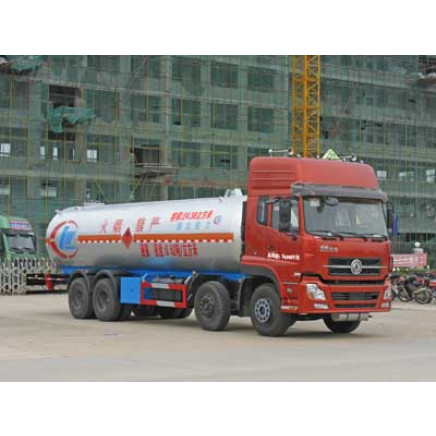

Dongfeng Tianlong 8X4 Heavyduty Oil Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 53620/ Piece

Price:US $53620.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, Paypal

Price Valid Time:From Jun 26, 2015 To Sep 26, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL5311GYQ

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Tank Volume:15001-30000L

Drive Wheel:8в4

Seats:?5

Horsepower:251-350hp

Engine Capacity:6-8L

Storage:Oil

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Tubeless

Condition:New

Fuel:Diesel

Certification:ISO9000, CCC

Engine Type:4 Stroke

Volume:10000-20000L

Type:Patrol Car

Payload:20t

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:in Bulk or in Container, Wax Polished

Standard:CE, ISO9001: 2000

Origin:China

HS Code:8706002200

Production Capacity:300 PCS Per Month

Product Description

DONGFENG 25m3 Liquid Ammonia tank truck
Tank material: 16MnR
Tank capacity: 25m3

Item	unit	Parameter
Model		VL5312GYQ Liquid Ammonia Truck
Chassis model		DFL1311A3
Engine type		C260 33
Engine	ml/kw	8300/191
TRUCK
Overall dimension	mm	11995в2500в3690
GVW	kg	31000
Rated loading capacity		12678
Mass in working order		18127
Axle burthen		6500/6500/18000
Number of axles		4
Approach/departure angle		26/10
Suspension front/bcak (mm)	mm	1460/2985
F/R track base		1940/1860
Wheel base		1950+4250+1300
Number of tyres		12
Tyre specification
Pieces of Spring		8/8/10
TANK
Design pressure	Mpa	2.16
Maximum working pressure		1.94
Design temperature	╟C	-19 ~ 50 ╟C
Loading Material		Liquid ammonia
Corrosion Allowance	mm	1.0
Cubage	m 3	24.38
Tank's demension	mm	?1878в9413
Tank thickness	mm	12
Loading coefficient		520kg/m 3
Material of tank		Q345R
Standard	GB150-1998
	Pressure Vessels Safety and Technical Supervision Regulation
	Regulation of Safety Supervision for Liquefied Gas Tank
