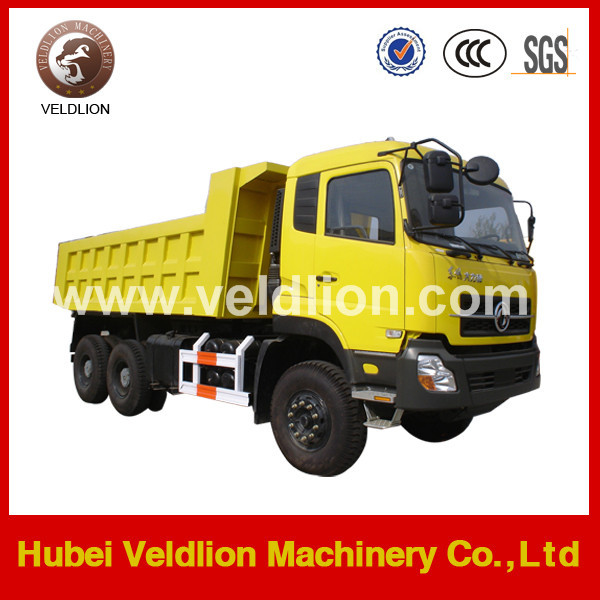

Dongfeng Hercules 6X4 Dump Trucks

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 45500/ Piece

Price:US $45500.0 / Piece

Trade Terms: FOB, CFR, CIF, FCA, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jun 10, 2014 To Sep 10, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3251

Transmission Type:Manual

Power:Diesel

Load Capacity:21-30t

Emission Standard:Euro 2

Drive Wheel:6в4

Engine Capacity:4-6L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ECE

Tire Design:Tubeless

Dumping Type:Front Lifting Style

Condition:New

Dump Truck:Tipper Dump Truck

Fump Truck Certification:ISO, BV Test, CCC, SGS

Export Markets:Global

Additional Info.

Trademark:Veldlion

Packing:Nude Package or Roro Ship

Origin:Hubei

Production Capacity:3000PCS Per Month

Product Description

1. Technical parameters of the tipper dump trucks.
(1) For construction and industrial trucks
(2) Curb Weight: 12305kgs
(3) Loading Weight: 24800kgs
(4) Box Volume: 21000L
(5) Engine Power: 266Hp - 420Hp
(6) Steelsheet Thickness: Floor 8mm, front, side and back wall 6mm

We also supply you the other type of HOWO, 4*2, 4*4, 6*2, 6*4, 6*6, 8*4 different engine power(270HP, 290HP, 310HP, 330HP, 350HP, 380HP, and 420HP), EURO II, and EURO III dump truck. We could choose the right truck for you and confirm that is your good assistant in your work.

2. Company introduce
HUBEI VELDLION MACHINERY CO., Ltd is an authorized Special Trucks manufacturer. We are specialized in the production of a variety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. Heavy duty truck,
2. Fire engine truck
3. Truck mounted with crane
4. Dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,
13. Chemical liquid tank truck

3. Contact us
Atten: Ms. Julia He
Mobile: 0086-15927026165
www.veldlion.com

Item	unit	parameter
Vehicle model	Dongfeng 6*4 hydraulic dump truck
Chassis model	DFL3251A1
Overall dimensions	mm	8750,8550,8155,7955,7750в2500в3200,3400
Fact loading	kg	25000-35000
GVW	kg	24800
Rated loading capacity		12365
Kerb weight		12305
Body internal dimensions	mm	6200,5800,5400,5200,4800в2300в1060
Wheel base		3800+1350,3900+1350,4000+1350,3800+1450
Front tread		2027/2040
Rear tread		1820/1820,1850/1850
Front overhang		1500/1900,1500/1800,1500/1405,
Rear overhang		1500/1305,1500/1100
Approach/departure angle	╟	30/28,30/27,30/26
Exhaust/power	ml/hp	11120/250
Max speed	km/h	80
Tire specification	11.00-20,11.00R20,12.00-20,12.00R20	Engine type	dCi340-30
Traction system	6x4	Tire number	10
Number of axles	3	Electric system	24v
Operation control system	Electrically hydraulic control	Allowable passengers in cab	3
Feul type	Diesel	Emission Standard	Euro 3
Engine	Dongfeng Automobile Co.,ltd
Production cycle	15-25 days
Warranty	12 month,from the date of supply
