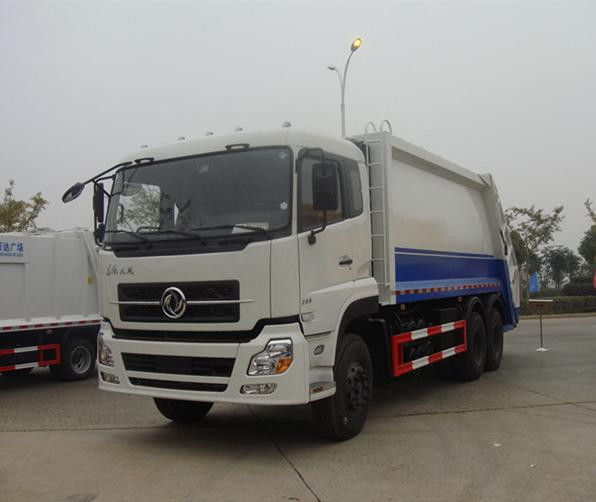

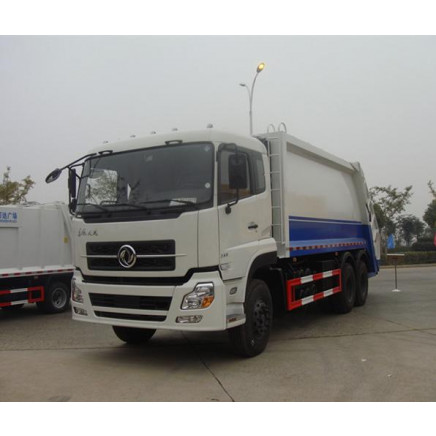

Dongfeng Chassis 18cbm Compactor Garbage Truck for Exportation

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 48500.0-59500.0/ Piece

Price:$48500.0 - $59500.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T

Price Valid Time:From Apr 27, 2015 To Jul 27, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:SLG18

Type:Compactor

Certification:ISO9000, CCC

Volume:?15000L

Emission Standard:Euro 3

Transmission Type:Manual

Engine Type:4 Stroke

Fuel:Diesel

Drive Wheel:6×4

Brand:Dongfeng

Models:Medium

Usage:Compression Type

Chassis:Dongfeng

Overall Dimensions L*W*H(Mm):10500*2500*3400

Curb Weight Kg:14870

Gross Weight Kg:25000

Engine:C245 33

Displacement Ml:8300

Power:245HP/180kw

Garbage Container Volume(M3):18

Export Markets:South America, Southeast Asia, Africa, Mid East, Eastern Asia

Additional Info.

Trademark:SLCM

Packing:as Required

Standard:ccc

Origin:Hubei

Production Capacity:500 Units Per Month

Product Description

Features

1. Equipped with completely sealed garbage container, hydraulic system, operation system.
2.Equipped with rear turnover mechanism,can hook dustbin or loading garbage by itself.
3.Equipped screeds and push shovel, compress by itself.High compression ratio.
4.The sewage will flow to sewage tank automatically, avoid second pollution.
5.Good sealed performance, easily operation,high safety.

Parameters

Overall Dimension(mm)	10500×2500×3400
Gross Weight(Kg)	25000			Curb Weight(Kg)	14870
Axle No.	3			F/Rear Suspension(mm)	1460/3340
Wheelbase(mm)	4350+1300			Max Speed(Km/h)	90
Chassis Technical Parameter
Chassis Name	Truck Chassis			Chassis Brand	Dongfeng
Overall Dimension(mm)	9460×2480×3030			Tyre No.	10 tyre with 1 spare tyre
F/ R Suspension(mm)	1460/2350			Tyre Specification	10.00-20
Front Track(mm)	1986			Rear Track(mm)	1860/1860
Drive Type	6x4			App/Dep Angel (°)	20/16
Cab Allowed Person	3			Clutch	Single-dry diaphragm spring
Brake	Air Brake			Air Conditional	Equipped
Steering Wheel	LHD with Power-assisted			Gear box	Fast 9 speed forward 1 reverse
Engine
Engine Model	C245 33			Engine Brand	Dongfeng
Displacement(ml)	8300			Power	245hp/180kw
Fuel Type	Diesel			Emission Standard	Euro III
Superstructure Technical Parameters
Garbage Container Volume(m3)		18	Thickness of Garbage Container			Side:3mm, Bottom:4mm

Other products

the garbage compression truck we produce is from 4m³ to 18m³

Other special truck,such as water trucks, tank trucks, garbage trucks, fecal suction trucks, sewage suction trucks, dump trucks, van trucks, semi-trailers, wrecker trucks, trucks with cranes, high-altitude operation trucks, training trucks, bulk cement trucks, chemical liquid trucks, fire engines, truck fittings, cement mixers and tractors.

welcom to inquire!
