Dongfeng 4X2 6 Wheel 10ton Road Wash tank truck,Water Tank Truckfeatures: 1. Dongfeng High Quality Chassis, 4x2 Drive, LHD/RHD
2.Self suction, self discharge function, front flushes sprinkles, side spurts, post positioned work table.
3. High-pressured Sprinkler, spraying of water to be possible to adjust columnar and the fog shape.
4. Optional fire pump and fire-fighting accessories.
5. Especially suitable for the municipal administration environmental sanitation department, the large-scale industry and mining enterprise.
6. SGS ISO CCC approved, accept customes' OEM customized

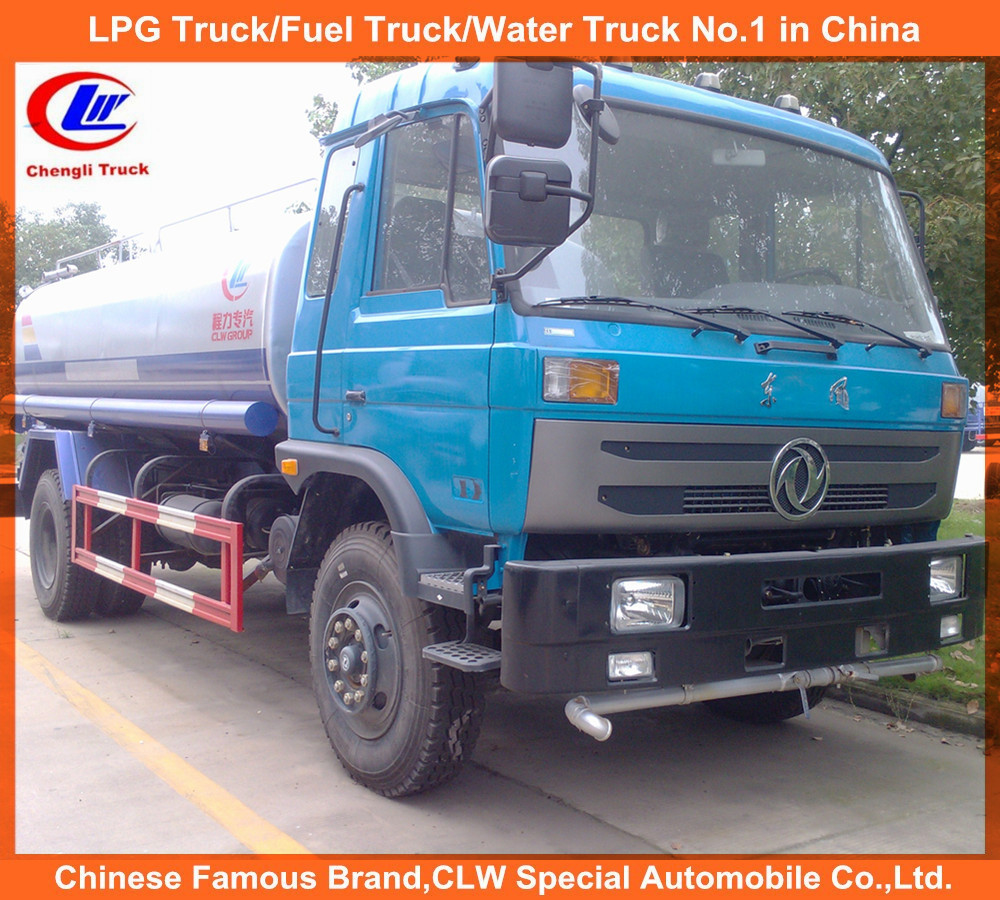

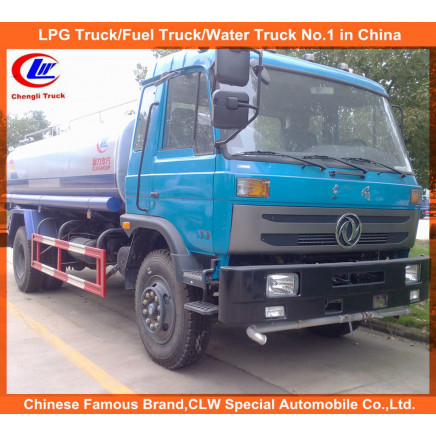

Dongfeng 4x2 water tank truck, water carting pictures:
BEST COMPETITIVE PRICE WITH TRUSTED QUALITYChengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.Our trucks exported to different countries:
Our main products:1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
Sales Manager: Helen Jiang
Mob: +86 135 5419 5719
Product |
Dongfeng 145 Water tank Truck |
Chassis type |
EQ1108KJ |
| Volume |
10-15m3 |
Parameters |
Overall dimension length/width/height (mm) |
8390×2470×2810 |
Total Mass(kg) |
12810 |
Kerb Mass(kg) |
7115 |
Approach angle/ Departure angle(mm) |
27/13 |
Front suspension/rear suspension(mm) |
1250/2300 |
Fuel Type |
diesel |
Fuel Consumption/100 km |
18 |
Max Speed |
90 |
Engine |
Type |
EQB160-20 / YC4E140-20/ |
Displacement/Power(kw) |
5880 /4257/ 118/105160(ps)145(ps) |
Manufacturer |
Dongfeng Commins Diesel Engine Co., Ltd/Guangxi Yuchai Machine Co., Ltd |
Type |
Water-cooling,6-in-line four-stroke supercharged diesel engine |
Chassis |
Drive type |
4×2 |
Wheelbase(mm) |
3950 |
Tread(front/rear) |
1900 / 1800 |
Front axle |
2.8T |
Rear axle |
8T |
Steering gear |
Duel-armed steering wheel,power steering |
Transmission |
6 gear mechanical drive transmission |
Clutch |
Diaphragm clutch,hydraulic remote control,pneumatic servo |
Braking system |
Split air braking systemspring brakingexhaust braking |
Cab |
Non-longheaded, one and a half row cab,whole metal-enclosed |
Number of spring axle(front/rear) |
8/10+7 |
Tire Type |
9.00-20 |
Air-condition |
Choose to fix |
Watering system |
Watering pump |
Self-priming centrifugal pump |
Special performance parameters |
Watering width |
? 15 |
Watering gun range |
? 28 |
Vertical suction range |
? 7 |
Watering pressure |
250-450KPa |
Watering |
0.2-2l/ |
Pump lift |
90m |
Suction time |
<5min |
Flow rate |
60 m3/h |
