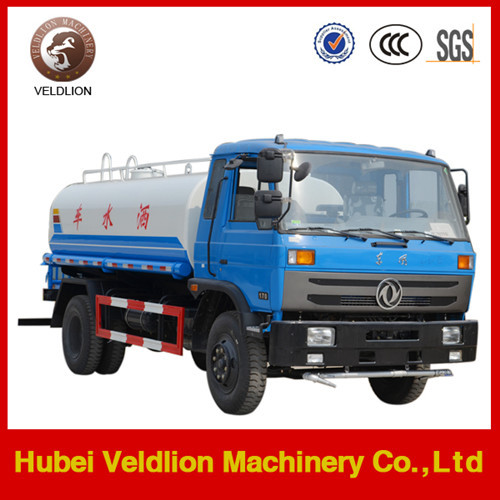

Dongfeng 4X2 10000L/10 Ton/10m3 Water Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 25000.0-35000.0/ Piece

Price:$25000.0 - $35000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Aug 12, 2015 To Nov 12, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:VL3204

Transmission Type:Manual

Power:Diesel

Load Capacity:11-20t

Emission Standard:Euro 3

Tank Volume:10001-15000L

Drive Wheel:4в2

Seats:?5

Horsepower:150-250hp

Engine Capacity:4-6L

Storage:Oil

Tire Type:Solid Tire

Tire Certification:ISO

Tire Design:Radial

Condition:New

Model:5000L Water Tank Truck

Chassis Brand:Dongfeng

Drive Side:Left/Right

Tank Meterial:Q235A

Color:Optional

Export Markets:Global

Additional Info.

Trademark:VELDLION

Packing:Nude Packing or Roro Ship

Standard:CE, ISO9001: 2000

Origin:Hubei, China

HS Code:8716311000

Production Capacity:3000 PCS Per Year

Product Description

I. QUICK DETAILS OF Dongfeng 4x2 10000L water tank truck
1. Suction? 7m Sprinkler width? 14m Range? 28m
2. With front spout, back spill and side spout function
3. With the working platform at the back, wich can be installed green high-pressure water spray gun. (The spray gun shape can be adjustable: Heavy rain, moderate rain, drizzling rain or haze.
4. Provide the best high-power sprinkle pumps quality of the national, And with fire coupling, self-flow add self- priming function.

II. COMPANY INTRODUCE

HUBEI VELDLION MACHINERY Co., Ltd is an authorized dump truck manufacturer. We are specialized in the production of a variety of special-purpose vehicles.

Create value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.

OUR MAIN PRODUCT:
1. Dump Truck/Tipper Truck
2. Fire Fighting Truck
3. Truck with Crane
4. Semi-Trailer and Tractor Truck
5. Water Tank Truck,
6. Fuel Tank Truck,
7. Concrete mixer truck,
8. Fecal suction truck, sewage suction truck,
9. Light Cargo Truck, Mini Truck,
10. High-altitude operation truck,
11. Garbage Truck, Compactor Garbage Truck, Sealed Garbage Truck,
12. Bulk Cement Truck, Powder tank truck
13. Chemical liquid tank truck
14. Van truck, insulated truck, Refrigeration Truck

III. Strong advantage:
1. More than 300 workers, large and advanced production;
2. Have professional engineer, can offer the best and cheapest design;
3. Build strict QC team to guarantee the quality;
4. Own profesional sales team, can offer follow-up service;
5. High quality with resonable price;
6. Euro II, III, IV, V emission standard are optional.

IV. CONTACT INFORMATION
If you want to know more about our Dongfeng 4x2 10000L water tank truck, please do not hesitate contact with us as below:

HUBEI VELDLION MACHINERY Co., Ltd
ATTN: Real Liu
Mobile phone: +86 13656866460
Website: www.veldlion.com

V. PARAMETERS DATASHEET OF Dongfeng 4x2 10000L water tank truck

Commodity	Dongfeng 4x2 10000L water tank truck
Chassis	EQ1110GLJ
Drive system	Left hand drive, RHD is optional
Cubage (T)	10000 Liters
Vehicle	Overall dimension(length/width/height)mm	8000в2470в3050
	G V W(kg)	15700
	Payload (kg)	8000
	Kerb mass(kg)	5700
	Approach/Departure Angle(╟)	30/15
	Front/Rear Suspension (mm)	1250/2050
	Fuel Type	Diesel
	Fuel consumption(L/100km)	22
	Top speed	90
Engine	Model	YC4E160-33
	Exhaust/Power(kw)	5900/ 120kw
	Exhaust/Power(kw)	(160HP)
	Manufacturer	Guangxi Yuchai diesel Engine Co., Ltd
	Type	6-in-line water cool diesel engine
Chassis	Drive type	4в2
	Wheelbase (mm)	3950
	Tread(front/rear)mm	1940/1860
	Front Bridge	5 Ton
	Rear Bridge	10 Ton
	Transmission	Double spoke wheel, with power steering
	Gear box	6-forward gear, one reverse gear, mechanical transmission
	Clutch	Uniwafer, dry screw spring clutch
	Brake system	Air brake
	Cab	One and half row longhead cab
	Number of spring axles(front/rear)	8/13
	Tire specification	9.00-20
	Air condition	optional
	Water pump	Self-sucking centrifugal pump
Water system performance	Water width	?16
	Water monitor range	?28
	Vertical suction range	?7
	Pressure	250-450KPa
	Watering speed	0.2-2(L/M3)
	Pump lift	90m
	Priming time	<5min
	Flow	60 m3/h
