Dongfeng 15 Cbm 4X2 Fuel Tank of Truck (CLW1160)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Dongfeng 15 Cbm 4X2 Fuel Tank of Truck (CLW1160)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 24000.0-26000.0/ Piece

Price:$24000.0 - $26000.0 / Piece

Trade Terms: FOB, CFR, EXW, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA

Payment Terms: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Price Valid Time:From Jul 03, 2015 To Jul 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW1160

Transmission Type:Manual

Power:Diesel

Load Capacity:1-10t

Emission Standard:Euro 3

Tank Volume:10001-15000L

Drive Wheel:4�2

Seats:?5

Horsepower:150-250hp

Engine Capacity:6-8L

Storage:Oil

Tire Type:Inner Tube

Tire Certification:ECE, GCC, ISO, DOT, Asme ASTM

Tire Design:Radial

Condition:New

Material:Carton Steel Q235

Exhaust/Power(Kw):190HP

Type:Fuel Tank Fuel Tank Truck Fuel Tank Trailer

Engine Model:Dongfneg

Wheel:6wheels

Capacity:15000L

Driving Model:4X2

Chassis Model:EQ1160

Warranty:One Year for Three Parts (Engine, Gearbox, Axle)

Package:Bulk, RO-RO, Container, Naked for Fuel Tank Truck

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:RO-RO Bulk Naked Container

Standard:ECE ISO GCC CCC ASME ASTM

Origin:Hubei China

HS Code:8701909000

Production Capacity:100000PCS/Year

Product Description

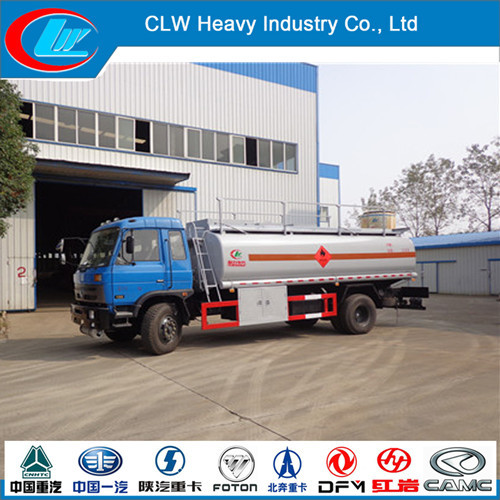

Good quality DONGFENG 15 CBM 4X2 fuel tank of truck

SPECIFICATION:
CHASIS
1.Description:DONGFENG 15 CBM 4X2 fuel tank of truck
2.Drive Model:4X2
3.Chassis:EQ1160
4.Dimensions(L x W x H)mm:9000*2490*3100
5.Wheel base (mm):4950
6.Overhang (front/rear) (mm):1250/2800
7.Wheel track (front/rear) (mm):1940/1800
8.Approach/Departure angle(�):28/12
9.Curb Weight:6125kg
10:GVW.:15990kg
11.Max. driving speed(km/h):75

ENGINE
12.Engine Model:ISB190 33
13.Type:4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
14. Horse Power(HP):190
15.Emission standard:Euro III
16.Gearbox:6 forwards & 1 reverse
17.Clutch:Reinforced diaphragm clutch
18.Tire:10.00R20. 6 pcs+1 spare tire

UPPER
19.Fact cubage:15000liter
20.Tank material:Q235 carbon steel
21.Tank thickness:6mm
22.Body Internal Dimension:6300*2350*1450mm

EQUIPMENT
optional:1.Tank can be separated to several unattached small tanks to fill different fuels
2.Tank material: carbon steel,stainless steel,FRP etc.
3.Tank shape: Roundness , quadrate , oval
4.Oil pump: self-priming pump,gear pump
5.Oil meter:single,double,Fiscal processor
standard:1.Equipped with valves and pipes,a set of Fuel Dispenser
2.Equipped with a ladder on tank
3.Install with the motion of the satellite positioning function recorder

If you are interested in this model, pls feel free to send inquiry, and we will always be glad to quote.
Contact with me!

Sale Manager: Albert Du
Mobile:0086-18660874450
0086-13872880263
Tel/Fax : 00862783796298


COMPANY INFORMATION
ClW Heavy Industry Co., Ltd
which was appointed by the Development and Reform Committee of China.Chengli is a professional company who deal in different kinds of special vehicles, trailers and construction machinery.
� Established from 2004.
� 12 independents workshops.
� 1000 sets of equipment, 25 assemble lines.
� 300 senior engineers and technicians. About 2000 to 3000 workers
� 380kinds of trucks and semi-trailers.
� 20 years wholesale experience
� Turnover 250 million and Export 20million annually
� Turnover 2 billion trucks and semi-trailers annually.
� Truck Sold to 80 countries
� Cooperates with DONGFENG,SINOTRUCK,ISUZU,FOTON,FAW,BEIBEN,ETC

ADVANTAGES
1. We have own factory located in Suizhou---the special truck town of China. we can control every details----the development, the quality and the cost. As a result we can supply the quality goods with most competitive price.
2. We are familiar with the whole Chinese special truck market. And we are clear the different advantage and different quality level for each factory. So we can consolidate the resource for the customers and supply the most suitable goods for them.
3.  There is a strong professional team in our company including engineers and business executives. So we can provide the best solution and service for all customers

OUR PPRODUCTS
1.LPG Tank /Skid LPG Tank /LPG Tank Truck /LPG Tank Trailer/LPG accessory
2.Fuel Tank/Fuel Tank Truck/Fuel Tank Trailer
3.Water Tank/Water Tank Truck / Water Sprinkler Truck/Water Wagon/Milk Truck
4.Van truck/Refrigerator truck/Explosion Proof truck
5.High-altitude Truck/Truck with crane
6.Chemical Liquid Truck
7.Bulk cement truck/Cement Powder Tank truck
8.Concrete Mixer Truck
9.Tractor
10.Fire fighting truck/ Fire Truck / Fire Vehicle
11.Dumper/Tipper Truck/Side Tipper/End Tipper
12.Wrecker
13.Flat transport truck
14.Sweeper truck
15.High pressure cleaning truck
16.Liquefied Gas Transport Truck
17.Pressure Vessel
18.Fecal suction truck / Sewage suction truck
19.Self-loading garbage compactor truck
20.Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )

LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as strict quality control system can ensure all the tank from us run very well with 10-20 years use life.

FAQ
1.Our price term: FOB Shanghai as common, other port is also acceptable.
2. Our Payment term: T/T, 30% deposit after order confirmation, 70% balance should be paid before delivery.
3. Delivery time: the delivery time is 20-30 days as common, the exact delivery time depends on the order and the current production condition.
Packaging and shipping
1, Packaging: nude or waxing;
2. Shipping: RoRo ship or bulk ship according to the customer' order or requirement

Technique Paraments

Description	DONGFENG 15 CBM 4X2 Fuel tank Truck
Drive Model	4X2
Chassis	EQ1160
Number of axles	2
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)		9000�2490�3100
	Wheel base (mm)		4950
	Overhang (front/rear) (mm)		1250/2800
	Wheel track (front/rear) (mm)		1940/1860
	Approach/Departure angle(�)		28/12
Weight in KGS	Curb Weight		6125
	GVW.		15990
Max. driving speed(km/h)			75
Engine	Model		ISB190 40
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		190HP
	engine capacity(ml)		5900
	Emission standard		Euro IV
Gearbox	6 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	180
Tire	10.00R20 tire , 6 + 1(spare)
Brakes	dual circuit compressed air brake
Tank
Material	Q235A Carbon steel
Medium	Oil
Loading Capacity (m�)	14.5
Overall dimensions(mm)	6300�2350�1450
The back of the protective	section size (mm)	100�50�5
	ground height (mm)	500
Thickness(mm)	6
ABS model	3631010-C2000
optional Equipment	Tank can be separated to several unattached small tanks to fill different fuels Tank material: carbon steel,stainless steel,FRP etc. Tank shape: Roundness , quadrate , oval Oil pump: self-priming pump,gear pump Oil meter:single,double,Fiscal processor
Standard Equipment	Equipped with valves and pipes,a set of Fuel Dispenser Equipped with a ladder on tank Install with the motion of the satellite positioning function recorder
