Dongfeng 12 Wheel LPG Tanker Truck for Liquified Gas Storage LPG Transportation

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 51550/ Piece

Price:US $51550.0 / Piece

Trade Terms: FOB, CIF

Payment Terms: L/C, T/T, D/P

Price Valid Time:From May 05, 2015 To Aug 05, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Transmission Type:Manual

Power:Diesel

Load Capacity:11-20t

Emission Standard:Euro 2

Tank Volume:?30000L

Drive Wheel:6×4

Seats:?5

Horsepower:251-350hp

Engine Capacity:?8L

Storage:LPG

Tire Type:Inner Tube

Tire Certification:ISO, DOT

Tire Design:Radial

Condition:New

Export Markets:Africa

Additional Info.

Trademark:CLW

Packing:Bulk Shipment, Roll-Roll, Container Shipment

Standard:ISO 9001, ISO 14001,

Origin:Hubei, China

HS Code:8705909990

Production Capacity:20000 Unit / Year

Product Description

30CBM LPG Tanker Truck Dongfeng 10 wheels with One Years Warranty

1. LPG Container Tanker can storage propane, liquified gas.
2. Can also supply capacity of 8000L, 10000L, 15000L, 20000L, 25000L, 30000L, 35000L, 40000L
3. Truck Brand: Dongfeng, Sintruck Howo, FAW, Foton, Beiben Benz, Iveco
4. Professional LPG Tanker manufacturer with more 10 years manufacturing experience
4. High Quality LPG Tanker with Competitive Factory Price.

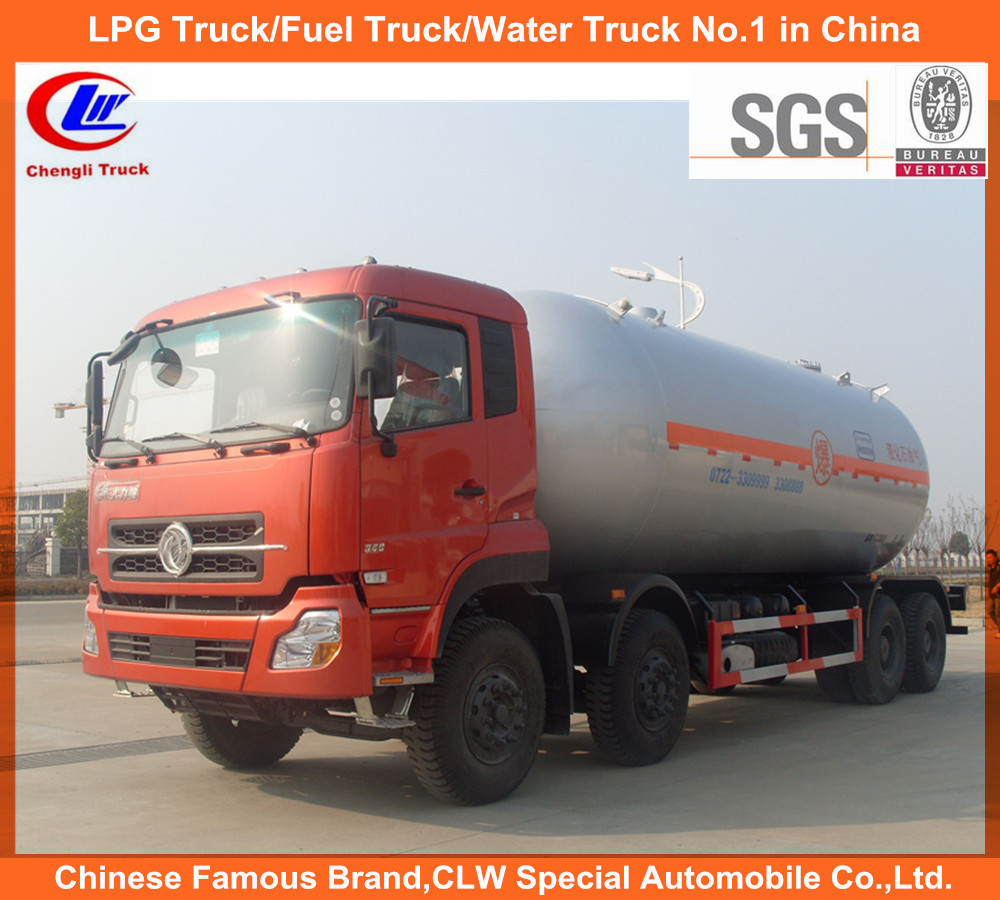

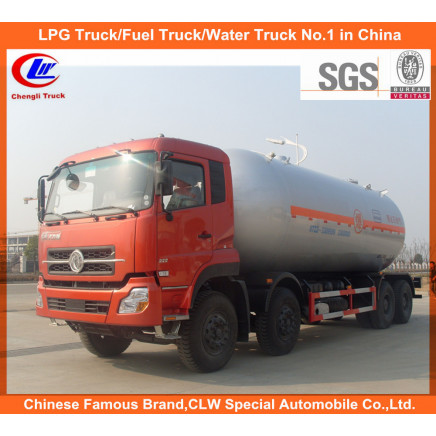

Dongfeng 8x4 10 Wheel LPG Tanker Truck
Truck dimension (L×W×H)mm		11995x2480x3500
Driving Type		8×4, 10 wheel
Cabin		Flat head, LHD or RHD available, with Air conditioner.
Engine	Engine Brand	280HP, Dongfeng Cummins Engine C280 20,
	Emission Standard	Euro 2
	Displacement	8300 ml
	Engine type	Diesel 6-Cylinder in line with water cooling, turbo-charging & inter cooling
Gear Box		9 forward and 1 reverse speed, mechanical transmission (DF9S1600)
Clutch		?430mm, diaphragm spring clutch
Front Axle		I-beam type 5T front axle
Rear Axle		10T×2
Tyre		11.00R20
Wheel Base	mm	1950+4250+1300
Qty of Leaf Spring Suspension	mm	8/8/10
Front / Rear Overhang	mm	1460/3035
Front / Rear Tread	mm	1940/1860
Approach /Departure Angle		25/9
Gross Vehicle Weight (GVW)	Kg	31000
Loading Mass	Kg	13000
Curb Weight	Kg	17805
Max Speed	Km/h	90
Tanker Specification
Volume of Tanker		30000 Liter, 30 CBM
Tank Dimension (length × diameter)		9334×DN2124 mm
Design Pressure		1.77Mpa
Designed Thickness		11.5mm
Material		16MnR
Testing Water Pressure		2.65Mpa
Tyre		12.00-20, 12R22.5,

Our Service

Warranty:
One year's warranty for major 3 components, including Engine, Gear Box, Axles.

Spare Parts:
1. Supplying quick-wearing parts at the truck delvery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.

After Sales Service:
Email & Phone call tracking for each truck on timely manners.

Important Figure of Our Factory Chengli:

3000 Acres(2 million SQM) Factory Premises with New factory Under construction
3000 Workers with Professional Training
300 Different Types of Trucks Available for Choice
300 Million Total Sales Volume for 2014
More Than 10 Years Manufacturing Experience

Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
