Main feature of 4x2 dongfeng 2-5cbm water truck1. Dongfeng Chassis,2. Tanker capacity: 2000 litres to 5000 liters3. Tanker material is carbon steel and thickness is 5mm. Stainless steel and aluminum alloy is optional.4. Equipped with China famous Weilong pump, best quality.5. Factory sale, competitive price
Water truck, is also called as the sprinkler, watering cart, water tank truck, water spray truck, water sprinkler truck, water tanker truck and multi-function green watering truck.
The water truck is mainly used in city road, large factory area, army, landscape garden and other Departments for cleaning the pavement, sanitation, dust-proof, watering, and spraying farming Chemicals for beautify the environment.
It have self-priming and self-draining function, can flush in front, water at rear and sprinkle at the tank's Side. It is equipped with a working platform at rear with high pressure water cannon, which can be Columnar, heavy rainfall, moderate rain and drizzling rain, equip with high power sprinkle water pump, Self-priming pump can pump water from pool to tank, or join the truck with fire hydrant to fill water in tank
parametera of mini tanker truck
| unit | parameter |
Vehicle model | | CLW5061GSS Water tank truck |
Chassis model | | 2A |
Horse Power | ps | 95 |
Overall dimensions | mm | 5600x1900x2200 |
Fact cubage | L | 4000 |
GVW | kg | Approx6085 |
Rated loading capacity | Approx 1980 |
Mass in working order | Approx 3975 |
Body internal dimensions | mm | 3070x1600x880 |
Wheel base | 3000 |
F/R track base | 1380/1458,1404/1458 |
Approach/departure angle | ° | 19/15 |
Exhaust/hp | ml/kw | 3298/70 |
Max speed | km/h | 90 |
Tire specification | 6.50-16 | Engine type | 4100QBZL |
Traction system | 4*2 | transmission | 5-speed with over drive |
Number of axles | 2 | Electric system | 24v |
Operation control system | Electrically hydraulic control | Allowable passengers in cab | 2 |
Equipment | Equipped with front (rear, side) sprinkler (sprinkling width>14m ) Equipped with rear working platform with water cannon (range>28m) Equipped with CLW pump(suction lift>6m) Equipped with fire valve, water valve, and filter gauze |
Engine | YunNei, diesel engine |
Production cycle | 5-7 days |
Warranty | 12 month, from the date of supply |

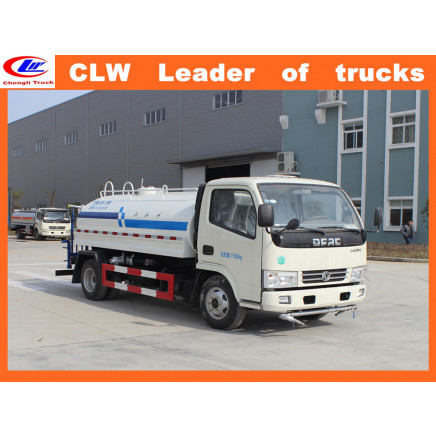

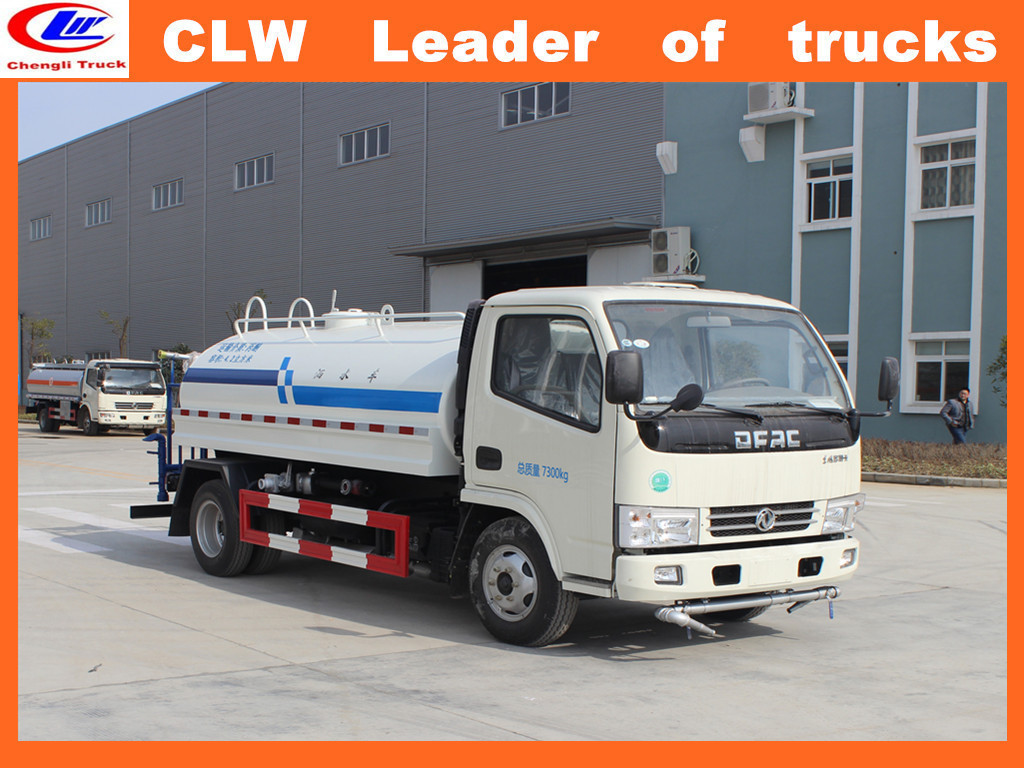

Different images of water tanker truck
Introduction of our company
Chengli Special Automobile Co., Ltd is a professional manufacturer of all kinds of special truck and trailer as well as other special equipment.
LPG tank is our most advantage key products which rank Top 5 in China, excellent engineers and high-grade production equipment as well as stricted quality control system can ensure all the tank from us run very well with 10-20 years use life.
Our main products:
1. Dump Truck / Tipper Truck/Side Tipper/End Tipper
2. Fire Fighting Truck / Fire Truck / Fire Vehicle / Fire Engine
3. Truck with crane / Truck mounted crane
4. LPG Tank Truck Trailer/Oil Tank Truck / Fuel Tanker Truck
5. Water truck / Water Tank Truck / Water Sprinkler Truck
6. Concrete Mixer Truck
7. Van truck / Insulated truck/ Refrigeration truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )
We sincerely welcome you to visit our factory and provide your precious suggestion for us!
