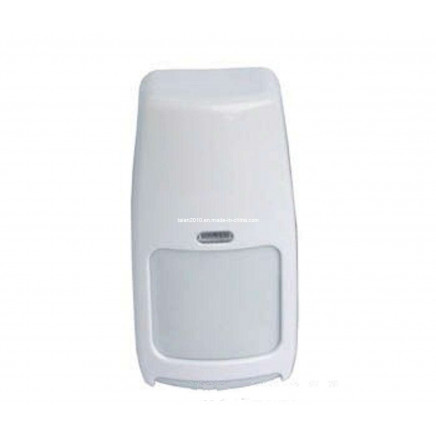

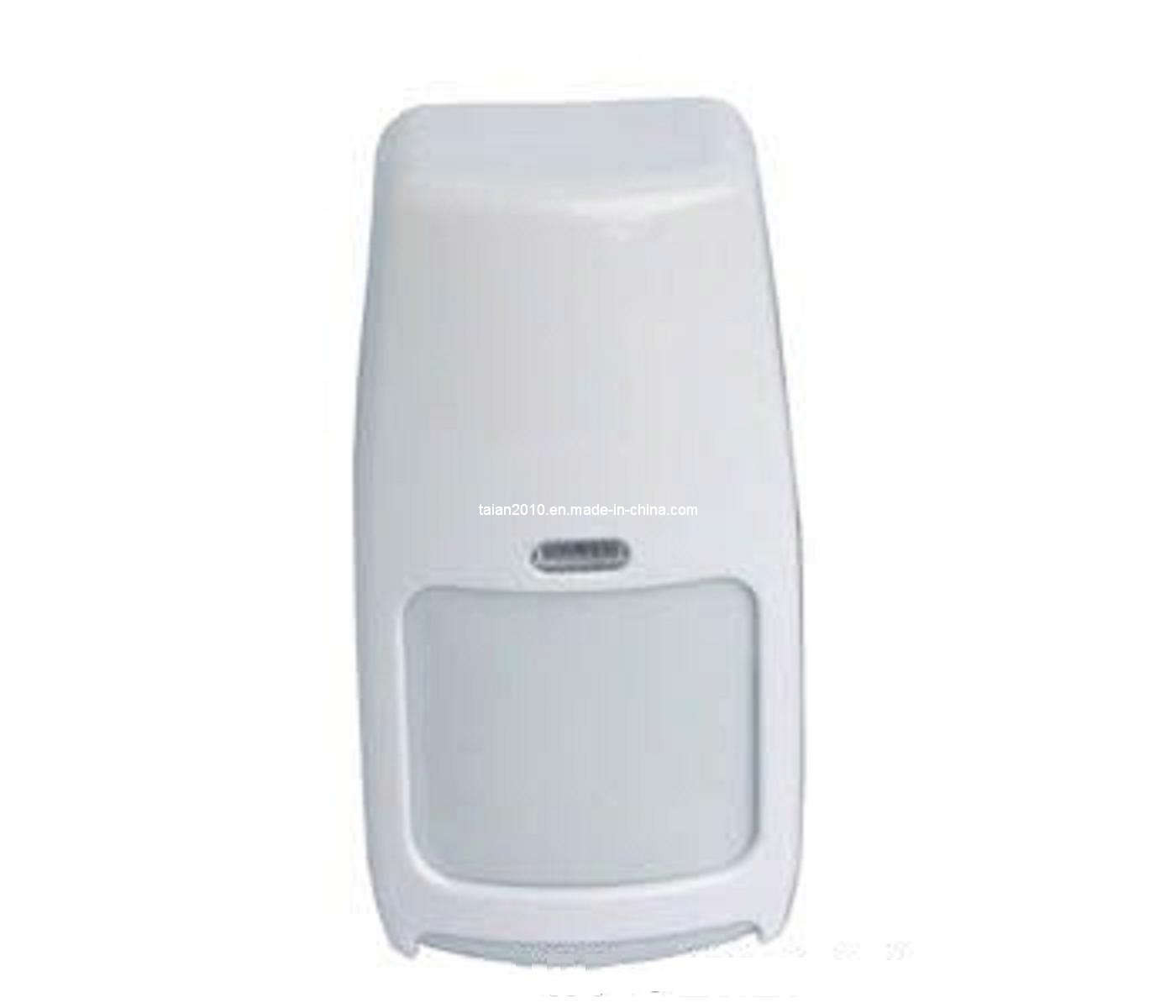

Digital Micro Mini Control Duel Tech Detector, Intruder Detector (DT-7435)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:50 Pieces

Trade Terms:Air, Ship

Trademark:HONEYWELL

Packing:CTN

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DT-7435

Export Markets:Global

Additional Info.

Trademark:HONEYWELL

Packing:CTN

Origin:China

Production Capacity:100, 000PCS/ Month

Product Description

Digital Micro mini control Duel Tech Detector
Quadruple sealed microwave head+ Dual PIR+ Intelligent digital analysis
MW adopts the latest plane antenna field-effect transistor oscillator
Sealed optical structure, anti-interference of insect or dust, enhance anti-white light performance
Syncretize MW& PIR technology, double processors improve signal processing ability
Adopts energy-saving logic processing(DMF), random dynamic time segmentation(DMT) technology
Dual infrared FRESNEL lens, with downward vision window avoid detecting dead angle.
With tamper switch, hence with reliable function
Digital pulse adjustable, automatic temperature compensation, energy analysis
Advanced pet-immunity recognition technology can distinguish the different signal between intruder and pet
Advanced anti-cloak technology to recognize the intruder with cloak

Detection mode
Dual PIR& MW complex

Detection range
Diameter 11m × 11m

Detection angle
110°

Infrared area
44 or 38

MW frequency
10.525GHz

Installation
Height: 1.8m~2.4m(surface or corner installation)

Working voltage
9~16VDC

Working current
8mA~25mA(about 20mA@12VDC)

Working environment
Temperature: -10~+50;

Relative humidity: 5%~95%RH

Anti EMI
>9000LUX

Anti-white light
>20V/M (20MHz~1000MHz)
