Digital LCD Monitor Reversing Rearview CCD Camera

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:

Min. order:1 Piece

Trade Terms:FOB, EXW

Payment Terms:T/T

Trademark:BR VISION

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WS3501T

Applicable Model:Car

Shell Material:ABS Plastic

Display Type:Reverse Image

Interface:RCA

Function:Night Vision

Definition:420TVL

Chip:CCD

Waterproof Grade:IP68

Alarming Distance:2.5-0.35m

Probe Diameter:18.8mm

Probe Number:1/2/3/4

Export Markets:Global

Additional Info.

Trademark:BR VISION

Packing:Neutral Package

Standard:CE, FCC, Rohs

Origin:China

Production Capacity:50000PCS/Years

Product Description

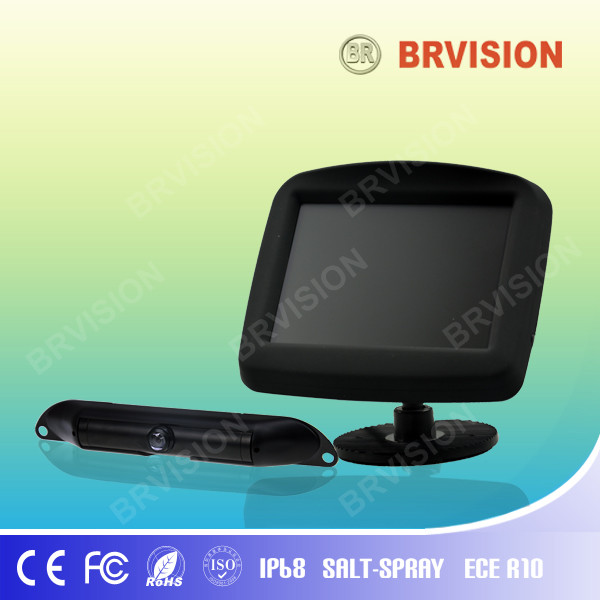

Digital LCD Monitor Split Function Reversing Rearview CCD Camera

Rearview CCD Camera Key Feature:

- 3.5" digital TFT LCD monitor
- High resolution video rearview camera
- 5M extension cable with RCA connector
- Car rearview system
Monitor Specifications:
- Screen size: 3.5" digital TFT-LCD
- Display Format: 640 x 240 Dot
- System: PAL/NTSC
- One video input .
- Viewing angle: right/left/up/down 40°/40°/20°/50°
- Brightness: 250cd/m2
- Operation Temperature: -20~70°.
- Temperature Range Storage -30~80°
- Power consumption: 2W
- Power requirement: DC 12V
Camera Specifications:
- Image Device: 1/4" CMOS image sensor
- TV System: NTSC/PAL
- View Angle: 170°
- Waterproof design
- Effective Pixels: 510*496pixels
- Sensing Area: 5.961mm*4.276mm
- Resolution: 420TV lines
- Minimum Illumination: 0.01Lux
- Video Output: 1.0vp-p, 75Ohm
- Gamma Consumption: 0.45
- White Balance: Auto
- S/N Ratio: Better than 48dB
- Electronic Shutter: 1/60S-1/5000S
- Power Supply: DC12V
- Operating Temperature: -20° to +70°RH95%Max
- OmniPixel technology for low-light performance
