Diesel or Gas Burner Powder Motorcycle Painting Line

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$10800.0 - $14040.0 / Set

Min. Order (Sets)	Unit Price
1.0	US $ 10800/ Set
8640.0	US $ 14040/ Set

Trade Terms: FOB, CFR, CIF, EXW

Payment Terms: L/C, T/T, Cash

Price Valid Time:From Aug 13, 2014 To Oct 16, 2014

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:YS-50

Certification:CE

Airflow Direction:Full Downdraft Airflow Way

Heating Mode:Diesel

Paint Mist Treatment:Dry-type

Condition:New

Ventilation:Full Downdraft Airflow Way

Air Intake:1X 7.5 Kw Double-Intake Centrifugal Fan

Air Exhaust:1X7.5 Kw Double-Intake Centrifugal Fan

Heating:Riello Rg5s Diesel Burner

Voltage:1X220V, 3X380V, Your Special Voltages Are Accepted

Optional Colour:White, Blue, Orange and Red

Port:Huangpu Port or by Your Order

Main Product:Spray Booth, Prep Station, Infrared Curing System

Export Markets:Global

Additional Info.

Trademark:YOKISTAR

Packing:Bubble Film Packing for Sea Transportation in Bulk

Standard:20?GP can load 1 set, 40?GP 2 sets.

Origin:Guangzhou, China

HS Code:84198990

Production Capacity:120units/Month

Product Description

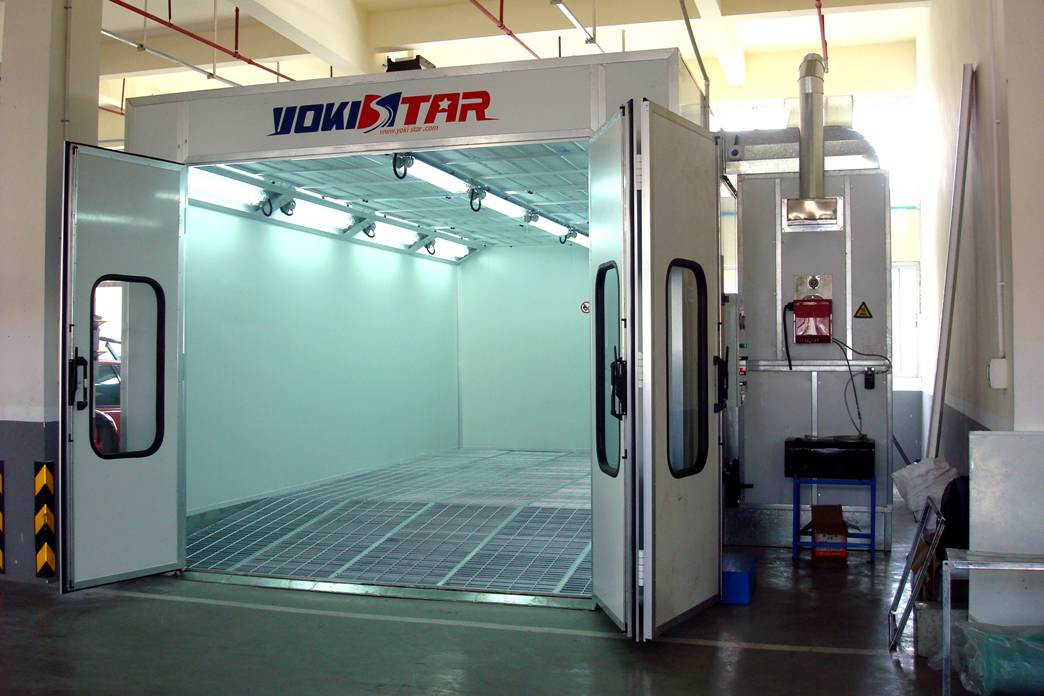

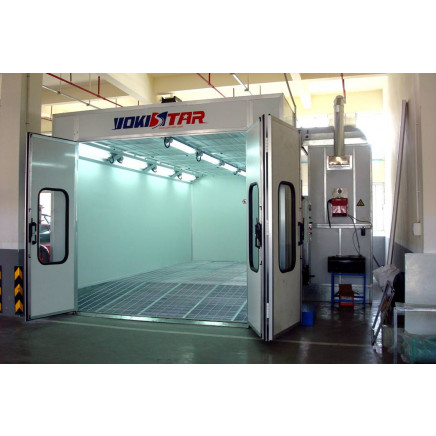

Model: YS-50
Inside dimention: 6900*3900*2650mm L*W*H
Any Size Requirements Can Be Met
With better ventilation and strong power

A. During painting, spray booth can offer a sealed environment with cleanness, safety and excellent lighting for the painting operation of all kind of components and different products.
B. During baking, drying time, temperature and humidity in spray booth can be set according to different paint materials to achieve a perfect high-quality spraying and baking for your cars.
C. Spray booth makes spraying and baking operation with no limits of all kinds of whether, thus ensuring physical fitness of operators and absolute safety of equipments.

Warranty
The goods are guaranteed for 24 months from the date of receipt, but the filters and lamps are not guaranteed. It cannot be applied for damages caused by negligence of operations or mishandling of the machine.

YOKISTAR Products
High quality and advanced technology are applied in YOKISTAR product ranges, involving automotive spray booth, bus and truck spray booth, prep station, mixing room, bench spray booth, open face spray booth and infrared curing lamp.

Inside dimension	6900в 3900в 2650mm ( Lв Wв H )
Outside dimension	7300в 5350в 3450mm ( Lв Wв H )
Main door	F olding door, 3 folds, 3000в 2600 mm ( Wв H ), with aluminum alloy frame, colour: blue.
Escape door	1 unit, 650в 1800mm ( Wв H ), colour: white.
Basement	Galvanized steel assemble, 300mm high, quadrate steel support, 5 rows of grilles made by flat bar and twisted steel, then galvanized. 3 ramps, external setting, 900в 2000mm/pc.
Wall Panels	Thickness: 50mm, width: 1150mm, tongue and groove structure, 0.476mm colour steel with 50mm thick polystyrene (EPS) insulation inside, colour: white.
Lighting	Ceiling Lights: 8Units в 4Pcs=32Pcs в 36W, with electronic ballasts, lighting boxes are powered coated. Side Lights: 8Units в 4Pcs=32Pcs в 36W, with electronic ballasts, vertically set, lighting boxes are powered coated.
Generator setting	Intake air from back upper direction, exhaust air from back upper direction galvanized steel molding frame; white coated steel outside, galvanized steel inside, filled with heat preservation material in the middle.
Intake and Exhaust air system	1в 7.5 KW double-intake centrifugal fan for intake air, model YDW4.5M, air capacity: 21 000m 3 /h.
Intake and Exhaust air system	1в 7.5 KW double-intake centrifugal fan for exhaust air, model YDW4.5M, air capacity: 21000m 3 /h.
Heating system	RIELLO RG5S diesel burner, stainless steel heat exchanger, electric damper actuates from spraying to baking cycle. Max. heating productivity: 26000kcal/h.
Filtering system	Pre-filter, ceiling filter, fibreglass filter, activated carbon filter.
Roof Plates	Galvanized steel plates
Control system	Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, hour meter. temperature limit controller, pressure gauge, pressure alarm system, adjustable electric exhaust damper. All motors are normal start.
