Df Q235 Carbon Steel Fuel Tank Truck

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Df Q235 Carbon Steel Fuel Tank Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 19000.0-27000.0/ Piece

Price:$19000.0 - $27000.0 / Piece

Trade Terms: FOB, CFR, CIF, DAT, FAS, DDP, DAP, CIP, CPT, FCA, EXW

Payment Terms: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Price Valid Time:From Jul 02, 2015 To Jul 14, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:CLW5512

Transmission Type:Manual

Power:Diesel

Load Capacity:11-20t

Emission Standard:Euro 4

Tank Volume:10001-15000L

Drive Wheel:4�2

Seats:?5

Horsepower:150-250hp

Engine Capacity:4-6L

Storage:Oil

Tire Type:Solid Tire

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Tubeless

Condition:New

Loading Capacity(Kg):9865

Tanker Capacity(Cbm):15

Max Speed(Km/H):75

Type of Fuel:Diesel

Number of Axles:2

Color:Red, Yellow, Camo, Any Color as Your Request

Brand:Dongfeng

Drive Mode:4X2

Price Term:FOB, CIF

Delivery Time:25 Days

Export Markets:Global

Additional Info.

Trademark:CLW

Packing:Naked, Waxing and So on

Standard:ISO, CCC

Origin:Hubei. China

HS Code:8705909990

Production Capacity:800sets/Month

Product Description

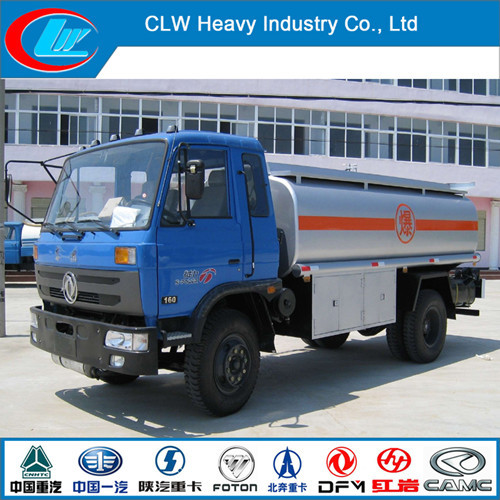

DF Q235 Carbon Steel Fuel Tank Truck

Description	DF Q235 Carbon Steel Fuel Tank Truck
Drive Model	4X2
Chassis	EQ1160
Number of axles	2
Vehicle Main Dimensions	Dimensions(L x W x H)(mm)		9000�2490�3100
	Wheel base (mm)		4950
	Overhang (front/rear) (mm)		1250/2800
	Wheel track (front/rear) (mm)		1940/1860
	Approach/Departure angle(�)		28/12
Weight in KGS	Curb Weight		6125
	GVW.		15990
Max. driving speed(km/h)			75
Engine	Model		ISB190 40
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		190HP
	engine capacity(L)		5900
	Emission standard		Euro IV
Gearbox	6 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	180
Tire	10.00-20 tire , 6 + 1(spare)
Brakes	dual circuit compressed air brake
Tank
Material	Q235A Carbon steel
Medium	Oil .......
Loading Capacity (m�)	14.5
Overall dimensions(mm)	6300�2350�1450
The back of the protective	section size (mm)	100�50�5
	ground height (mm)	500
Thickness(mm)	6
ABS model	3631010-C2000
Equipment	1. Tank can be separated to several unattached small tanks to fill different fuels 2. Tank material: carbon steel,stainless steel,FRP etc. optional 3. Tank shape: Roundness , quadrate , oval optional 4. Oil pump: self-priming pump,gear pump optional 5. Oil meter:single,double,Fiscal processor optional 6.Equipped with valves and pipes,a set of Fuel Dispenser 7.Equipped with a ladder on tank 8.Install with the motion of the satellite positioning function recorder

Our Company

We CLW Heavy Industry Co., Ltd are a professional manufacturer and exporter which is concerned with the design, development and production of more than 300 kinds of trucks, semi-trailers, and storage tanks.  We also provide spare parts for the products separately.
    All of our products comply can reach the international quality standards and are greatly appreciated in a variety of markets around the world.

1. CLW Heavy Industry Co., Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, petrol & medicals, container, and semi-trailer having nearly 15 years wholesaler experience in producing truck.

2.Our company has independent export right and has amount of clients overseas including Africa, North America, Middle East, Australia and so on. The export turnover has reached 25million dollars.

3.Our company has good after-sales service, solid technology, flawless inspection for our dear customers.

CLW Heavy Industry Co., Ltd also provide products as follows:

1. LPG Tank Truck Trailer/ Fuel Tanker Truck
2. Water truck/ Water Tank Truck/ Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck / Blasting equipment transporter/ Refrigerated truck
8. Fecal suction truck / Sewage suction truck
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck
11. Selfloading garbage truck, garbage compactor truck,sealed garbage truck
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer/ skeleton trailer/ dump semi trailer/ side wall trailer/ low bed trailer/ van container trailer/ warehouse trailer, etc.)
16. Spare parts/Accessory for above products

FAQ

1. Q: How about the quality of trucks of your factory?
A: Our trucks get ISO 9001:2008 and CCC, B&V and other related certificates. The chassis and spare parts come from the original manufacturers with anti-fake label.

2. Q:How many years of your company's service, especially after-sale service?
A: CLW Heavy Industry Co., Ltd has been in this field for nearly 15 years and has strong production and distribution capability, we can produce your products in 15 working days. We offer 1 year after-sale service.

3. Q:Is there any advantages of your price?
A: CLW Heavy Industry Co., Ltd is one of the most important suppliers of Sinotruk, Shacman, Dongfeng, FOTON and FAW, which provides guarantees for reasonable price and good quality.

4. Price term: FOB, CIF.

5. Payment: 30% deposit after order confirmation, 70% balance should be paid before delivery. All are by T/T, L/C.

6. Delivery time: 25 working days after payment is received.

7. Standard Steering: Left-hand drive, if you need Right-hand drives, please inform us, will make special order for you.

Any question please contact me without hesitation!!!

CLW Heavy Industry Co., Ltd
International Trade Center
Contact person:  Nancy Wang
Cel: +86-13872880251
+86-18186127295
Fax:+86-27-83796298
