Detachable Low Bed Semi Trailer, 3 Axles (QDT9402TDP)

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

Detachable Low Bed Semi Trailer, 3 Axles (QDT9402TDP)

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 15000/ Piece

Price:US $15000.0 / Piece

Trade Terms: FOB, CFR, CIF, DDP, DAP, CIP, CPT, EXW

Payment Terms: L/C, T/T

Price Valid Time:From Feb 05, 2015 To Apr 12, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:QDT9402TDP

Type:Semi-Trailer

Towing Pin Material:Carbon Steel

Impeller Type:Closed Type

Hook Type:Single

Universal Joint Type:Rigid Universal Joint

Brake Pad Material:Less Metal

Towing Pin Type:Cross Type

Towing Pin Diameter:90mm

Differential Gear Type:Anti-slip Type

Independent Suspension Type:Cross Arm Type

Model:Qdt9402tdp

Overall Dimension:16064mmx3000mmx1945mm

Effective Loading Surface:7500mm

Curb Weight:17.2t

Loading Capacity:70t

Axle:16t X 3, with ABS

Towing Pin:90#, 50#; Interconvertible

Material:Steel

Scale:Heavy Duty

Certification:ISO/Ts16949, SGS

Export Markets:Global

Additional Info.

Trademark:Qingte, OEM

Packing:Nude Packing

Standard:SGS

Origin:Qingdao, Shandong, China

HS Code:8716

Production Capacity:10000/Year

Product Description

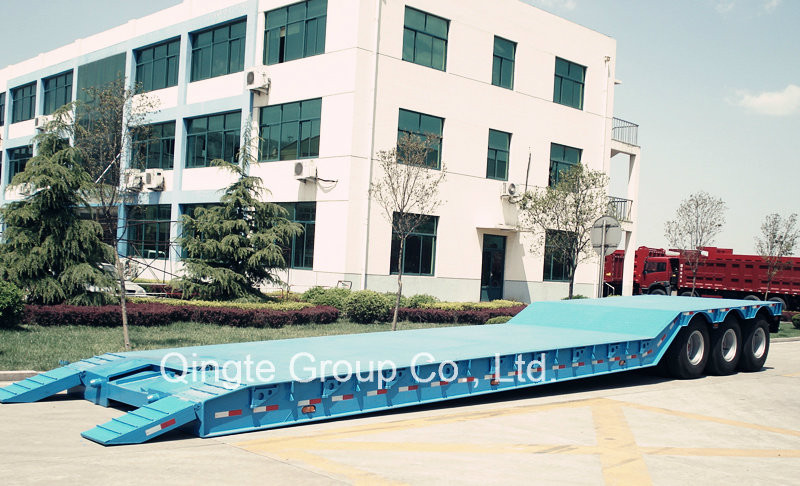

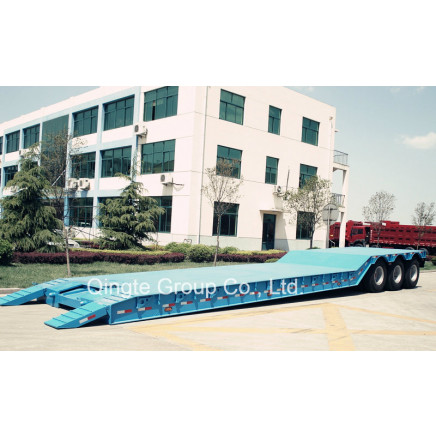

Low Flat Bed Semi-trailer with Removable Gooseneck (QDT9402TDP)
Model: QDT9402TDP

General information:
Dimensions (L x W x H): 13481x3500x1215(With extending 15mm each side)
Loading Capacity: 70 tons

Model:	Detachable low bed semi trailer
Main Specification	Curb Weight	17.4 Tons
	Loading Capacity	70 Tons
	Gross Vehicle Weight	87.4 Tons
	Overall Dimensions	(L x W x H mm) 16064 ×3000×1928
	Effective Area	(L x W x H mm) 7500×2800×845
	Tyres Specification	12.00R20 Double Star 12PCS
	Axles	3 Axles, 16MT, YUEK Brand
Main Specification	Plate Spring	9/9/9
	Main Longitudinal Girder (mm)	Height 450mm
		Top flange 30mm
		Middle flange 16mm
		Middle flange 16mm
		Bottom flange 30mm
	King Pin	3.5'(90#)
	Surface Steel Plate	5 mm Diamond Plates
	Brake	Air Brake
	Wheel Base	1310mm+1310mm
	Power Unit/Engine	YANMAR 16.2KW

Company Presentation

Qingdao Zhongqi Special Automobiles Co., Ltd., one of the most important entities of Qingte Group Co., Ltd., is a joint corporate enterprise set up by Qingte Group Co., Ltd. and China Auto Industry Import & Export Corporation. Established in 1992 with registered capital of RMB 100 million yuan and 130 thousand sq.m. of floor space, Qingdao Zhongqi Special Automobiles Co., Ltd. now have reached an annual Production Capacity of 10 thousand sets of various kinds of Special Vehicles.

Basing on technique breakthrough of Chassis and Special Device, we have obtained great development on product series of Hydraulic Aerial Platform Vehicle, Special Operation Vehicle, Municipal Duty Vehicle, Construction Operation Vehicle, Heavy-duty Road Transportation Truck, City Cleaning Truck, and other high grade products including Military Vehicle, Airport Tractor and Oil Transportation Truck, gradually forming our Qingte feature which shows an advanced level both in domestic and internationally. It is worth mentioning that the Hydraulic Aerial Platform Hot-line Work Vehicle, cooperative developed products with Altec, USA, have always been world first class and the best in domestic.

Our Hydraulic Aerial Platform Hot-line Work Vehicle series and Multi-function Poling Machine, adopting optimal configuration from Altec, could satisfy wide ranges of demand from power sector, communication sector and city construction, with its working height from 11m to 25m and isolation voltage from 46KV to 220KV. Qingte-Altec Products have passed the performance test processed by the State Power Corporation assigning institution, Wuhan High Pressure Research Institution(WHHPRI), with all of its technical index reaching the original design standard. After its test, the series was highly recommended by the institution.

Qingdao Zhongqi Special Automobiles Co., Ltd. has taken the leading in obtaining ISO9001:2000 Certification, ISO14000 Environment Management System Certification, OHSMS18000, CCC and the National AAAA Level Standardization Good Behavior Enterprise Confirmation, establishing a thorough quality management system. Qingte Group Co., Ltd. was identified 2012 National Technology Innovation Demonstration Enterprise. With a national level enterprise technical center, containing its high technical level and development capabilities, Qingte Group now have an independent capacity of developing various kinds of special vehicles and parts
