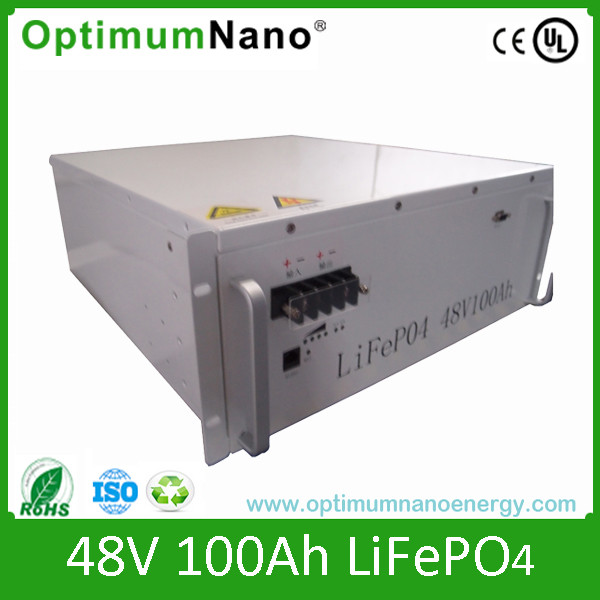

Deep Cyclelife 48V100ah LiFePO4 Solar Light Battery

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1800.0 - $2430.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 2430/ Piece
500.0	US $ 1800/ Piece

Trade Terms: FOB, EXW

Payment Terms: L/C, T/T, Western Union

Price Valid Time:From Jul 24, 2015 To Oct 31, 2017

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-048100

Type:Lithium-Ion Battery Pack

Connection Mode:Series and Parallel

Rechargeable:Chargeable

Discharge Rate:High Discharge Rate

Size:Small

Accessories Type:Battery

Rated Capacity:500MAH?1000MAH

Standard Voltage:48V

Usage:Remote Control Plane

Electrolyte:LiFePO4

Battery Cell Type:LiFePO4 Battery(Ifr 32650-3.2V5ah Per Cell)

Composed Type:8 Series 20 Parallel

Life Cycle:Over 2000 Cycles >80% Capacity

Self Discharge Rate:?3% Monthly

Warranty Time:2 Years

Export Markets:Global

Additional Info.

Trademark:OPTIMUMNANO

Packing:Standard Packing

Standard:CE, UL, ROHS, IEC, BV, SGS

Origin:Cn

HS Code:8507600090

Production Capacity:1000 Packs/ Week

Product Description

Deep Cyclelife 48V100ah LiFePO4 Solar Light Battery

Remarks:
1) MOQ: 1 pcs
The quotation is include BMS and packing, but not the charger
2) Payment: T/T 100% for sample, T/T 30% in advance, 70% before sending the goods for the order.
3) Order Lead time: 4-6 weeks for order upon receipt of 30% deposit
4) Sample lead time: Within 2-3 weeks
5) Delivery: FOB Shenzhen port
6) Warranty: 24 Months from the day when you receive the goods

NO.	Item		General Parameter			Remark
1	Model		48V100AH			IFR 32650-3.2V5AH cell
2	Casing material		Iron case
3	Standard capacity		100Ah
4	Rated voltage		48V			Work voltage
5	Max.Charge voltage		58.4V
6	Cut-off voltage		40.0V
7	Recommand charge current		?40A
8	Recommand charge time		5.5 hours			0.2C5A
9	Recommand discharge current		?100A
10	Length		560.0±0.5mm			20 Paralled 16 Serial
11	Width		360.0±0.5mm
12	Height		200.0±0.5mm
13	Weight(Approx, including case)		About65 kg
14	Impedance(Max, at 1000Hz.)		?13m?
15	Charge method (CC/CV)	Standard	CC	0.2C	58.4V cut off
			CV	58.4V	0.05C cut off
		Rapid	CC	1C	58.4V cut off
			CV	58.4V	0.05C cut off
16	Operate temperature		Charge		0ºC_45ºC
			discharge		-20ºC_60ºC
			storage		-20ºC_45ºC
