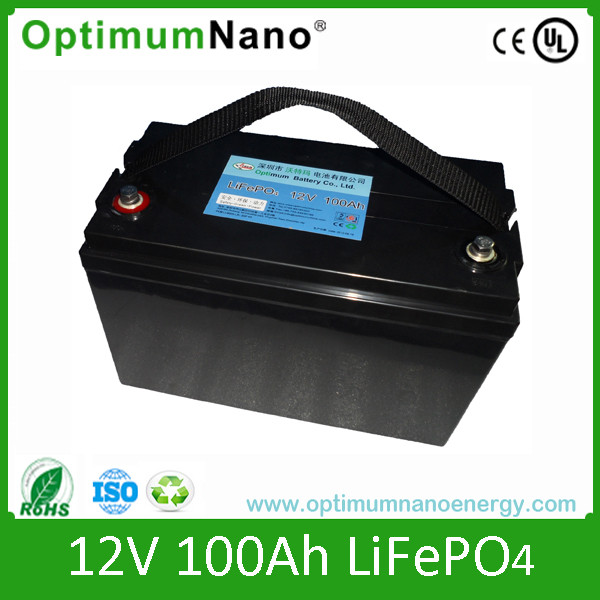

Deep Cycle Life 12V 100ah LiFePO4 Battery for Electric Boat

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Price:$1.0 - $10000.0 / Piece

Min. Order (Pieces)	Unit Price
1.0	US $ 10000/ Piece
1000.0	US $ 1/ Piece

Trade Terms: FOB, CIF, EXW

Payment Terms: T/T, Western Union

Price Valid Time:From Jul 24, 2015 To Oct 24, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:OPT-12100A

Type:Lithium-Ion Batteries

Usage:Energy Storage

Nominal Voltage:12V

Discharge Rate:High Discharge Rate

Shape:Cylindrical Battery

Electrolyte:LiFePO4

Installation:Packaged

Rechargeable:Chargeable

Usage Capacity:100ah

Work Voltage:12V

Standard Charge and Discharge Current:20A

Max. Discahrge Current:150A

Fast Charging Time:1.5 Hours

Color:Black

Casing Material:ABS Case or Metal

BMS Iternel:Yes

Dimension:Flexible(Customized)

Cycle Life:>2000 Times

Export Markets:North America, Africa, Eastern Asia, Western Europe

Additional Info.

Trademark:OPTIMUM

Packing:Battery Pack in Carton Case Full with PE Foam

Standard:BV, SGS, CE, UL, ISO9001, TS16949 etc

Origin:Guangdong Province, China

HS Code:8507600090

Production Capacity:100ah

Product Description

Powerful Deep Cycle Life 12V 100Ah LiFePO4 battery for electric boat

Application: Electric boat, electric ATV etc. (suits for 12V motor)

Optimum LiFePO4 battery Features:
A. Safe
· The chemical structure of LiFePO4 is very stable
B. Long lifespan
· >2000 times cycle life at 0.1C-1C discharge/charge rate
C. High energy density
· Energy density: 135 Wh/kg
· Weight: 1/3 of lead acid, 2/3 of Ni-MH
· Volume: 2/3 of lead acid
D. Wide Temperature range
· Working temperature range: -20° C--60° C
E. Fast charge
· 1C standard charge and discharge, above 93% of the capacity during 3.3~3.2V platform
F. Less self-discharge
Self-discharge<3(month), while the monthly self discharge of sealed lead acid battery is 10%.
G. Enviroment friendly
Optimum LiFePO4 battery has great efficiency for energy conservation and emission reduction,
Without any hazardous and noxious substances

About Optimum:
Competitive Advantages
· Electronic Link
7 years professional BMS solution
Green Product Long life span International Approvals
Reasonable Price
· Prompt Delivery
· Quality Approvals
· Good Reputation
· Satisfied Service
· Small Orders Accepted

Service by Optimum
· Give you the specific battery pack within 24hours according to your requirements
One-stop battery solution with battery cells, BMS, case and matching charger

Certificates:
CE, UL, RoHS/SGS, UN38.3, ISO9001: 2008, TS16949: 2002 issued by NQA

Battery Model	12V 100Ah
Nominal Capacity (AH)	100Ah
Nominal Voltage (V)	12V
Cell Combination	4-Series 20-Paralles
Cell Type	3.2V 5000mAh
Cell Quantity (series*parallels)	80 pcs
Rated Discharge Current (A)	20
Maximum Discharge Current (A)	200
Maximum Continuous Discharge Current (A)	150
Maximum Continuous Charge Current (A)	65
Charge Mode	CC-CV
Standard Charge Current (A)	2 0
Charge Time under Standard Charge Current	5 hours
Charge Time under Fast Charge Current	about 1.5 hours
Charge Temperature Range	0-45°C
Discharge Temperature Range	-20-60°C
Charging and discharging Cycles	>2000 times (wthin 1C constant charge and discharge rate)
Equipment	BMS + Charger(if you need) + Outer Case
