DC 12V 90W Portable Car Vehicle Auto Vacuum Cleaner Wet Dry

Live chat with Seller

If you want to live chat with Seller ,Please - LOGIN to View Links.

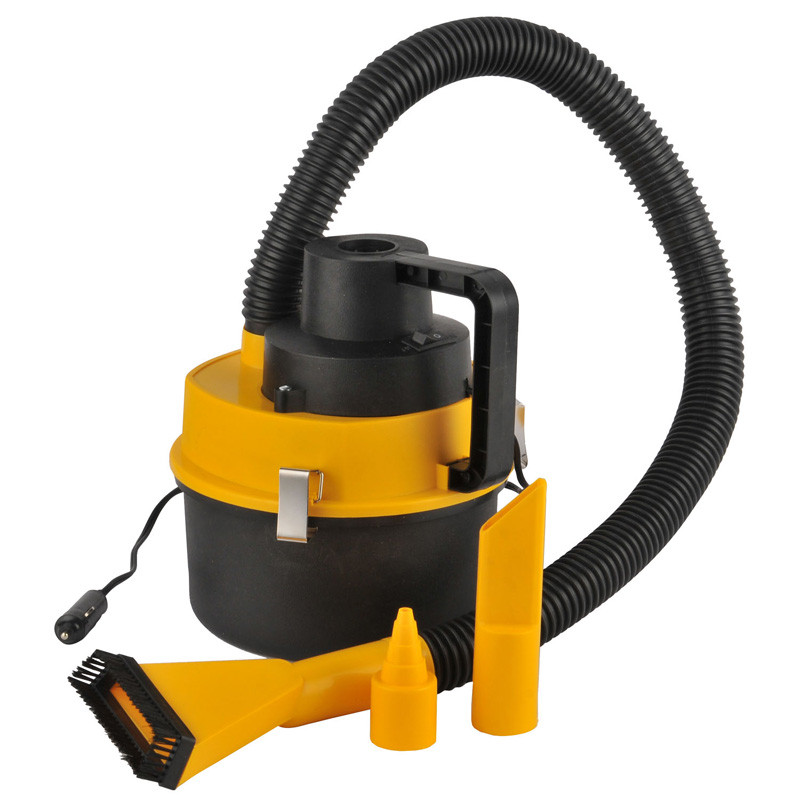

DC 12V 90W Portable Car Vehicle Auto Vacuum Cleaner Wet Dry

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
2000.0	US $ 4.4-4.5/ Piece

Price:$4.4 - $4.5 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, Paypal, Western Union

Price Valid Time:From Aug 10, 2015 To Oct 21, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:WIN-602

Classification:Hand-held Vacuum Cleaner

Type:Water Filter

Application:Wet and Dry

Purpose of Use:for Car

Filtration:Dust Bag Filter

Feature:With Bag

Cyclone Dust Collector:Side Cyclone

Certification:CE, RoHS, EMC

Function:Steam Brush

Product Material:ABS+as

Product Size:24X23X24 Cm

Power Cord Length:3m(10ft)

Voltage:12volts

Power:90W-120W

Accessories:3 Suction Nozzle

Product Weight:820g

Color:Blue + Black, Red + Black, Yellow + Black

Vacuum:2.2-2.4 Kpa

Rotational Speed:34000rpm

Export Markets:Global

Additional Info.

Trademark:WIN Vacuum Cleaner Wet Dry

Packing:Color Box

Standard:CE & RoHS

Origin:China

HS Code:8508110000

Production Capacity:4000PCS/Day

Product Description

Vacuum Cleaner Wet Dry(WIN-602)

Specification:

Specification	1Input Voltage	DC 12V
	2Output Current	7-8A
	3Output Power	80-90W
	4Power Source	DC cigar-lighter with fuse
	5Rotational Speed(Brushless motor,all copper)	34000rpm
	6Vacuum	2.2-2.4 KPA
	7Switch	ON/OFF
	8Wire Cord	260CM
	9Product Weight	815+/-5g, top part with motor(ABS)+ bottom black bucket(PP)
	10Vacuum hose weight	75g 100CM PVC
	11Nozzle attachment	10G+/-1.5g ABS
	12crevice attachment	24g+/-1.2g ABS
	13Brush attachment	54g+/-2g ABS
	14Brush	14g+/-0.6g PP
Product Size&Packing	1Product Size	24 � 23 � 24 (CM)
	2Packing	color box
	3Quantity per Carton	12PCS
	4Packing Size	67x45x52cm
	5N.W/G.W.	15 / 17KGS

Manual Instruction:

Assembly and Operation
1. Check that the permanent filter completely covers the motor opening.Important!
Never operate the appliance without the filter.
2. Place the appliance upper section on the dust collector
3. Fasten the 3 fastening clips by hooking onto the dust collector at bottom and pushing up.
4. Insert the end of the suction hose in the suction opening.
5. Connect supplied accessories to vacuum cleaner according to intended application.
Fasten the required nozzle to the other end of the suction hose. The floor nozzle is very suitable for vacuuming dirt
on vehicle floor and seats and in the boot. Attach the brush to the floor nozzle to removed driedon dirt and fluff
(hook on at top, press down and clip into place). The slot nozzle is particularly suitable for areas that
are not easily accessible such as corners, edges and narrow gaps.
6. Insert the plug into the cigarette lighter socket of your vehicle or boat. Please make sure that the supply voltage is 12 V .
7. Switch on the vacuum cleaner with the ON/OFF switch and press the switch in direction ON. Make sure the vacuum
cleaner's air outlet does not get blocked while using the appliance.
8. After use, switch the appliance off again using the ON/OFF switch. Then remove the plug from the cigarette lighter socket.
Never remove the plug by pulling the cable. Store any accessories not being used in a safe place.
Emptying the Dust Collector
1. Switch the vacuum cleaner off and remove the plug from the cigarette lighter socket.
2. Undo the 3 fastening clips by pushing sideways and down. Lift the uppersection of the appliance off the
dust collector and empty it.
3. Remove the permanent filter and clean it by brushing and knocking. Place it back in the motor opening
so that it is seated flush. If the filter is very dirty,it can be washed clean in tepid soap suds.
Make sure that it has dried completely before putting back into the appliance.
Re-Assembly
1. Before reassembling, make sure that the filter is back in position.
Operating the vacuum cleaner without filter could result in irreparable damage to the appliance.
2. Put the upper section of the appliance back on the dust collector.
3. Fasten the 3 fastening clips by hooking onto the dust collector at bottom
Cleaning the Car Vacuum Cleaner
Use a dry or slightly moist cloth to clean the appliance. The ventilation slots can easily be cleaned with a brush.
Do not use chemicals or solvents such as petrol to clean the machine.
Never immerse the machine in water.

More professional service

1.Allowed OEM project
2.Allowed printing your logos or brand
3.Any color can be selected freely for you
4.Any design can be made from you with us

Special instructions:If you are experiencing inflation will be stopped, this because your car's cigarette lighter power is insufficient, please directly from the battery connector electrical and air compressor can.
Notes:1)� the products cannot be used in large trucks;
2)when you use it you should start car's motor
3) If the rapidly increasing pressure for a short time (three seconds up to 689KPa), said the air pressure is blocked, the air does not enter the tire, turn off the power, remove the gas nozzle, do it again.
4) every 15 minutes, it is best to take a break;� only available for 12V cigarette lighter power supply input.
