Cummins Engine Dfl 6X4 Euro3 Tipper Truck

More Views

Be the first to review this product

More than 10 available

Availability: In stock

Min. Order (Pieces)	Unit Price
1.0	US $ 28000.0-72000.0/ Piece

Price:$28000.0 - $72000.0 / Piece

Trade Terms: FOB, CFR, CIF

Payment Terms: L/C, T/T, D/P

Price Valid Time:From Apr 13, 2015 To Jul 10, 2015

Disclaimer: Only available in certain countries some restrictions may apply

Inquire Now

Also available at

Login or Signup to View Links.

Description

Details

Basic Info.

Model NO.:DFL3251A7

Transmission Type:Manual

Power:Diesel

Load Capacity:31-40t

Emission Standard:Euro 2

Drive Wheel:6�4

Engine Capacity:9.839L

Seats:?5

Horsepower:251-350hp

Tire Type:Solid Tire

Tire Certification:ECE, GCC, ISO, DOT

Tire Design:Radial

Dumping Type:Front Lifting Style

Condition:New

Loading Capacity:30-40t

Export Markets:Global

Additional Info.

Trademark:DFL

Packing:Bulk and Wax Covered

Origin:China

HS Code:8705909090

Production Capacity:2000units Per Year

Product Description

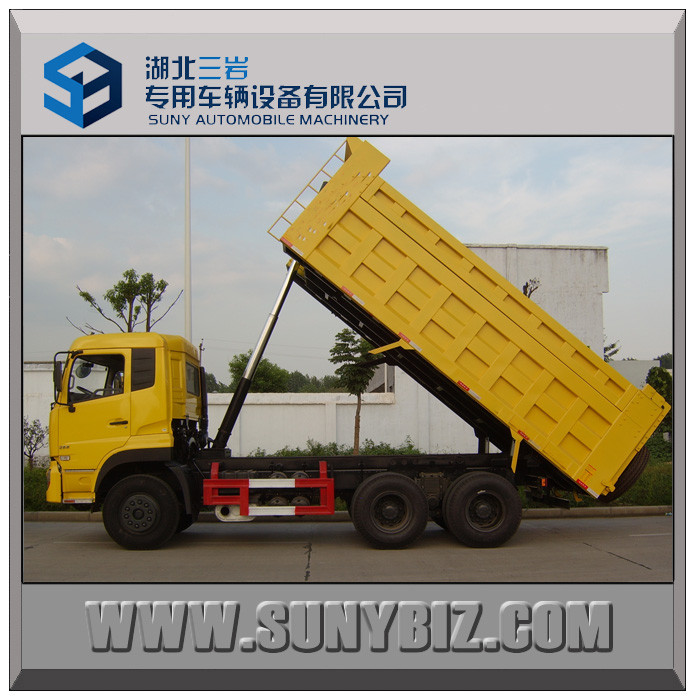

Technical Parameters of DFL 6x4 heavy duty dump truck

Vehicle Description
Type	6*4 Dump truck	Overall dimensions(mm)	9620�2500�3450
GVW (kg)	25000	Mass in working order (kg)	12355
Loading capacity (kg)	25000-35000	Max speed (Km/h)	85
Chassis Description
Cab	D310 one and a half row cab
Chassis Model	DFL3251A7	Air conditioner	With
Wheel base(mm)	4250+1350	Number of axles	3
F/R track base(mm)	2040/1850/1850	F/R overhang(mm)	1500/2170
Approach/Departure angle(�)	30/20	Spring plate	9/13
Front axle / rear axle	7T /16T	Type of fuel	Diesel
Tire specification	12.00R20	Gear box	9JS119, 9 speed forward 1 reverse
Traction system	6*4	Fuel of capacity	350 L
Engine Description
Engine model	YC6M340-33
Exhaust/output	9839/250	Horse power	340
Engine Manufacturer	Guangxi Yuchai Machinery Co., Ltd.
Up-parts Description
Van dimensions(mm)	6200�2300�1000 ( Can be adjusted if need)
Van description	Equipped with material of carbon steel, side 6mm thickness;bottom 8mm thickness Equipped with front hydraulic ram, single door.
